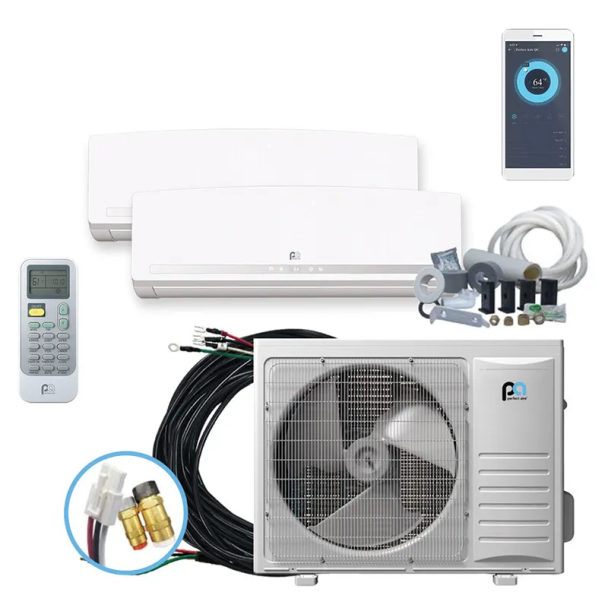

Perfect Aire DIY 24,000 BTU 22 SEER Dual Zone Heat Pump System 12+12 - Wall Mounted

By

Perfect Aire

In stock

Model

3PAMSHHQC24-MZO3-12-12

ID

86995

Rating:
100% of 100
Availability: In Stock - Ready to Ship

Authorized Perfect Aire Dealer

Suggested Retail $3,166.66
Your Low Price $2,375.00

  • Do-It-Yourself Installation
  • Heating & Cooling
  • Ductless Solution
  • Perfect for two 400-600 sq ft Rooms/Zones
  • Dual Zone/Room Compatible
  • Wi-Fi Capabilities & Energy Star Certified
Free Shipping

Required Fields *

Customize Perfect Aire DIY 24,000 BTU 22 SEER Dual Zone Heat Pump System 12+12 - Wall Mounted
Perfect Aire DIY 24,000 BTU 22 SEER Multi-Zone Heat Pump Condenser
Perfect Aire DIY 24,000 BTU 22 SEER Multi-Zone Heat Pump Condenser   + $1,725.00
Perfect Aire DIY 12,000 BTU Quick Connect Multi-Zone Wall Mounted Air Handler
Perfect Aire DIY 12,000 BTU Quick Connect Multi-Zone Wall Mounted Air Handler   + $325.00
Perfect Aire DIY 12,000 BTU Quick Connect Multi-Zone Wall Mounted Air Handler
Perfect Aire DIY 12,000 BTU Quick Connect Multi-Zone Wall Mounted Air Handler   + $325.00
Condenser Risers - 4" x 18" - 2 Pack
Perfect Aire DIY 24,000 BTU 22 SEER Dual Zone Heat Pump System 12+12 - Wall Mounted

$2,375.00

Accessories for this product
Customer Reviews
BBB Rating
Best Pricing

Description

Perfect Aire DIY 24,000 BTU 22 SEER Multi-Zone Heat Pump Condenser

OVERVIEW

Perfect Aire offers the 3PAMSHHQC24-MZO3 outdoor condenser which provides the ability to easily install a Perfect Aire Multi-Zone DIY Mini-Split System.

Please note that in order to function you must purchase Perfect Aire precharged line sets for each indoor air handler, and other installation equipment, available at an additional cost.

FEATURES

  • 24,000 BTU multi zone DIY heat pump condenser
  • 22 SEER
  • 100% sealed and pre-charged system when installed with the right accessories
  • Provides efficient heating down to -13°F
  • Golden Fin corrosion coated coils withstand corrosive outdoor elements
  • Energy Star certified
Perfect Aire DIY 12,000 BTU Quick Connect Multi-Zone Wall Mounted Air Handler

OVERVIEW

Perfect Aire offers the 3PAMSHQCW12-U230 Indoor air handler which provides the ability to easily install a Perfect Aire Multi-Zone DIY Mini-Split System.

Please note that in order to function you must purchase Perfect Aire precharged line sets for each indoor air handler, and other installation equipment, available at an additional cost.

FEATURES

  • 12,000 BTU Indoor Air Handler
  • Easy attach wall bracket and indoor unit with digital display, remote control, vertical & horizontal auto swing, and side knock-outs to allow piping installation from right or left side
  • Pre-wired 25’ foot communication cable connects indoor and outdoor units
  • Each indoor unit includes an accessory kit with a 14′ drain tube, collar, and 2 rolls of vinyl tap
  • Energy Star certified
Condenser Risers - 4" x 18" - 2 Pack

Provides simple and secure mounting for small and large piping systems, ductwork runs, cable trays and smaller equipment such as condensers. Linear track offers adjustable mounting. Manufactured from exterior grade materials.

Features

  • Ideal for piping, duct runs, cable trays and condensers
  • Weather resistant PVC
  • Linear track holds 3/8" hex head bolts
  • Two 7/8" long bolts included
  • Weighs up to 397 Ib
E Lite Equipment Pad and Risers Kit 18" x 38" x 3"

E Lite Condenser Pad and Risers

E Lite Condenser Pad

E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.

Key Features:

  • Reliable Support: Abundance of ridges for stable ground support.
  • Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
  • Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
  • Simple Appearance: Gray color with size labels.
  • Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.

E Lite Risers

E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.

Key Features:

  • Weather Resistance: Made from tough PVC for long-lasting performance.
  • Secure Setup: The track securely holds bolts in place.
  • Bolts Included: Each set comes with two bolts.
  • Strong Support: Capable of handling loads of up to 397 pounds.

E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.

No Return Policy

All sales of this product are final and are non-refundable.

Product Specifications

More Information
Perfect Aire DIY 24,000 BTU 22 SEER Dual Zone Heat Pump System 12+12 - Wall Mounted
SKU3PAMSHHQC24-MZO3-12-12
ManufacturerPerfect Aire
Product FeaturesLow Ambient Heating, Quick Connect, Rebate Available, WiFi
RefrigerantR410A
SEER21-22
Electrical230 V. 1 Phase 60 Hz
BTU/Tonnage24,000 BTU/2 Ton
Mini Split TypeWall Mounted
Zone CompatibilityMulti Zone
Indoor Units12 + 12
Zone/Room 1 Size12k for 400-600 sq ft
Zone/Room 2 Size12k for 400-600 sq ft
Warranty1 Year Unit Replacement / 7 Year Compressor / 7 Year Parts
Resources
  • Installation Manual
  • Safety InformationPROPOSITION 65 WARNING
    Perfect Aire DIY 24,000 BTU 22 SEER Multi-Zone Heat Pump Condenser
    SKU3PAMSHHQC24-MZO3
    Weight159.000000
    ManufacturerPerfect Aire
    Product FeaturesQuick Connect, WiFi
    Cooling BTU24,000 BTU
    Heating BTU24,000 BTU
    RefrigerantR410A
    Amperage Requirement30A
    Tonnage2 Ton
    BTU/Tonnage24,000 BTU/2 Ton
    Mini Split TypeWall Mounted
    Zone CompatibilityMulti Zone
    Height33
    Width37.5
    Depth13.5"
    Warranty1 Year Unit Replacement / 7 Year Compressor / 7 Year Parts
    Resources You will need Adobe® Acrobat® Reader to view PDF documents
    Safety InformationPROPOSITION 65 WARNING
    Perfect Aire DIY 12,000 BTU Quick Connect Multi-Zone Wall Mounted Air Handler
    SKU3PAMSHQCW12-U230
    Weight20.000000
    ManufacturerPerfect Aire
    Product FeaturesQuick Connect, WiFi
    Cooling BTU12,000 BTU
    Heating BTU13,000 BTU
    RefrigerantR410A
    Liquid Line1/4"
    Suction Line3/8"
    BTU/Tonnage12,000 BTU/1 Ton
    Mini Split TypeWall Mounted
    Height11
    Width33
    Warranty1 Year Unit Replacement / 7 Year Compressor / 7 Year Parts
    Safety InformationPROPOSITION 65 WARNING
    Condenser Risers - 4" x 18" - 2 Pack
    SKU87762
    Weight5.000000
    ManufacturerOnline Supply
    E Lite Equipment Pad and Risers Kit 18" x 38" x 3"
    SKU87762 / EL1838-3
    Weight25.000000
    ManufacturerOnline Supply
    Height3"
    Width18"
    Depth38"
    Safety InformationPROPOSITION 65 WARNING
