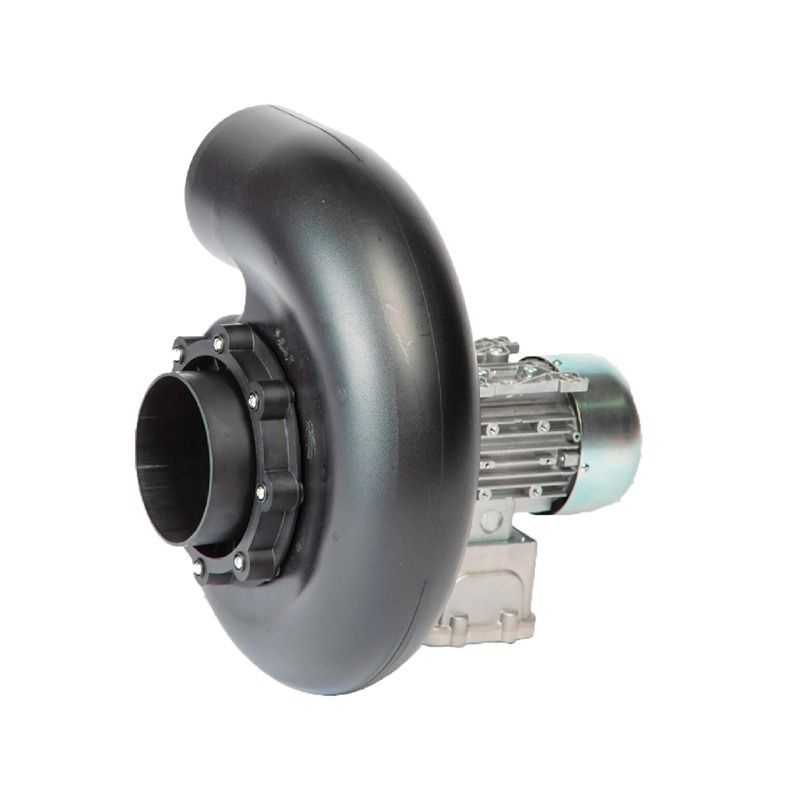

Plastec 15 Series Direct Drive Forward Curve Blower Hazardous Location .33 HP 600 CFM 3 Phase - PLA15XT4P-CIP

By

Plastec

Model

P15XT4P033

ID

16619

Availability: Ships in 2-3 Business Days

Authorized Plastec Dealer

$3,267.00

Free Shipping
Accessories for this product
Call 1-800-397-1392 for Best Pricing
Customer Reviews
BBB Rating
Best Pricing

Description

Features

  • Direct Drive Forward Curve
  • Wheel Diameter 5.9"
  • Max CFM 250
  • Decibels 54 dBA @ 5 Feet
  • Inlet Diameter 4.92"
  • Outlet Diameter 4.47"
  • 230/460 V 3-Phase 50/60 Hz
  • Motor HP .33
  • Motor RPM 1725
  • Motor Type Explosion Proof, 3 Phase, Capacitor Run
  • Motor Enclosure Totally Enclosed Fan Cooled
  • Carbon Impregnated Polypropylene Housing Assembly (CIP)

Plastec centrifugal fans are available in 6 sizes from 5" up to 23.50" inlet. They are designed to exhaust fumes from highly corrosive environments such as laboratories, chemical plants, hospitals, universities, etc. The all-polypropylene construction and thick walls ensure maximum protection against acids and corrosion.

Plastec Series Carbon Impregnated Polypropylene (CIP) blowers are designed to work in highly corrosive air exhaust applications containing potentially explosive atmospheres.

Alternate Model Number: PLA15XT4P-CIP

Product Specifications

More Information
Plastec 15 Series Direct Drive Forward Curve Blower Hazardous Location .33 HP 600 CFM 3 Phase - PLA15XT4P-CIP
SKUP15XT4P033
Weight (in lbs)38.000000
Brand/ManufacturerPlastec
Additional InformationUL Listed and CSA Certified
Additional InformationFor Hazardous Location
Additional InformationCarbon Impregnated Polypropylene Housing Assembly (CIP)
Blower MotorExplosion Proof, 3 Phase, Capacitor Run
Drive TypeDirect
Static Pressure2.5 inWg
Maximum CFM600
Decibel Level (dBA)54
Wheel Size6"
Motor RPM1725
Horsepower0.33
Horsepower.33 HP
Electrical208-230 / 460 V, 3 Phase, 60 Hz
Amperage Requirement1.6
Height16.13
Width18.82
Depth11.92
