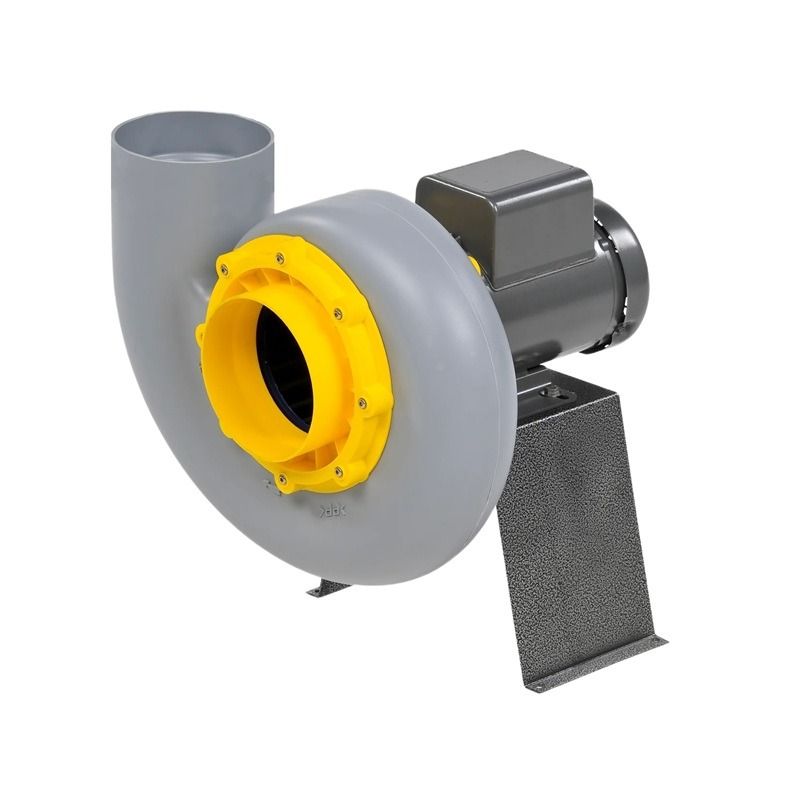

Today's Hours 8am - 11pm estPlastec 20 Series Direct Drive Forward Curve Blower Corrosive Environment 910 CFM .33 HP Single Phase
By
Plastec
In stock
Model
P20SS4P033
ID
16621
Was $1,881.30 Your Low Price Special Price $1,599.00
Product Features
- Space-saving design allows for easy installation
- Forward Curve Impeller design for high airflow and quiet operation
- Built with all-polypropylene construction for superior resistance to acids and corrosion
- Designed to vent fumes from highly corrosive environments like laboratories, chemical plants, hospitals, and universities.
OVERVIEW
Plastec centrifugal fans are available in 6 sizes from 5" up to 23.50" inlet. They are designed to exhaust fumes from highly corrosive environments such as laboratories, chemical plants, hospitals, universities, etc. The all-polypropylene construction and thick walls ensure maximum protection against acids and corrosion.
Blower Specifications
- Direct drive forward curve design
- Wheel diameter: 7.9"
- Maximum airflow: 910 CFM
- Noise level: 54 dBA @ 5 feet
- Inlet diameter: 6.3"
- Outlet diameter: 6.62"
- Voltage: 115/230 V, 1-Phase, 50/60 Hz
- Motor power: 0.33 HP
- Motor speed: 1725 RPM
- Motor type: Standard duty, single phase, capacitor run
- Motor enclosure: Totally enclosed fan cooled (TEFC)
Alternate Model Number: PLA20SS4P
Warranty Information
Motor WarrantyAll motors are covered by a one-year warranty from the date of shipment, provided by the motor manufacturer. If service is required during the warranty period, the motor must be taken to the nearest authorized motor service station. Failure to use an authorized service station may void the motor warranty. If you are unsure of an authorized service location, contact the factory for assistance. Installation, removal, re-installation costs, and any consequential damages are not covered.
Blower Housing Assembly WarrantyThe blower housing assembly is warranted to be free from defects in materials and workmanship for two (2) years from the date of original shipment. Defective units or parts reported within this period may be replaced at the manufacturer’s option when returned to the factory with transportation prepaid by the sender.
ExclusionsThe following items are not covered by this warranty:
- Normal wear from heat, abrasion, or chemical exposure
- Damage from improper installation, incorrect electrical connections, or unauthorized alterations
- Damage resulting from misuse, abuse, or abnormal operating conditions
- Lack of proper maintenance
- Transportation costs to and from the factory for warranty repairs
This warranty is limited to repair or replacement of defective parts as described above. The manufacturer is not responsible for installation, removal, or re-installation costs, nor for any consequential damages resulting from product failure or improper operation.
See full warranty on Installation, Operation & Maintenance ManualDurable Materials & Construction
The Plastec 20 blower is purpose-built for aggressive, corrosive environments. It features all-polypropylene construction for its housing, impeller, and airflow path, meaning there are no metal parts exposed to the airstream. This gives it excellent resistance against acids, solvents, salts, and moisture. To further enhance longevity in sunlight or outdoor exposure, the polypropylene is stabilized with HALS (Hindered Amine Light Stabilizers), which help prevent UV degradation over time. The blower is available in multiple configurations—single-phase or three-phase motors, with optional stands or weather hoods, which adds flexibility for installation in varied settings. Because it is direct drive (no belts or pulleys), maintenance is minimized, and reliability is improved under continuous operation in demanding conditions.
Plastec 20 is designed to withstand long-term use in environments where traditional metal blowers would corrode, require frequent maintenance, or fail prematurely.
Suitable Applications for Plastec 20 Series Forward Curve Blower
- Laboratory hoods: Designed to exhaust corrosive fumes from chemistry, biology, and research laboratory environments.
- Chemical facilities: Ideal for venting process areas or storage rooms in industrial plants and chemical manufacturing sites.
- Educational and research institutions: Applied in universities, research institutes, and teaching labs where chemical resistance is critical.
- Industrial and petroleum storage: Effective for removing corrosive gases and acid vapors in industrial, chemical, or petroleum storage applications.
- Pharmaceutical and medical production: Used in facilities handling aggressive air contaminants during pharmaceutical or medical manufacturing.
- Water and wastewater treatment: Deployed in sewage and water treatment plants to manage harsh gases and corrosive emissions.
- Marine and coastal environments: Suited for installations in maritime or coastal areas exposed to saline air and corrosion stress.
