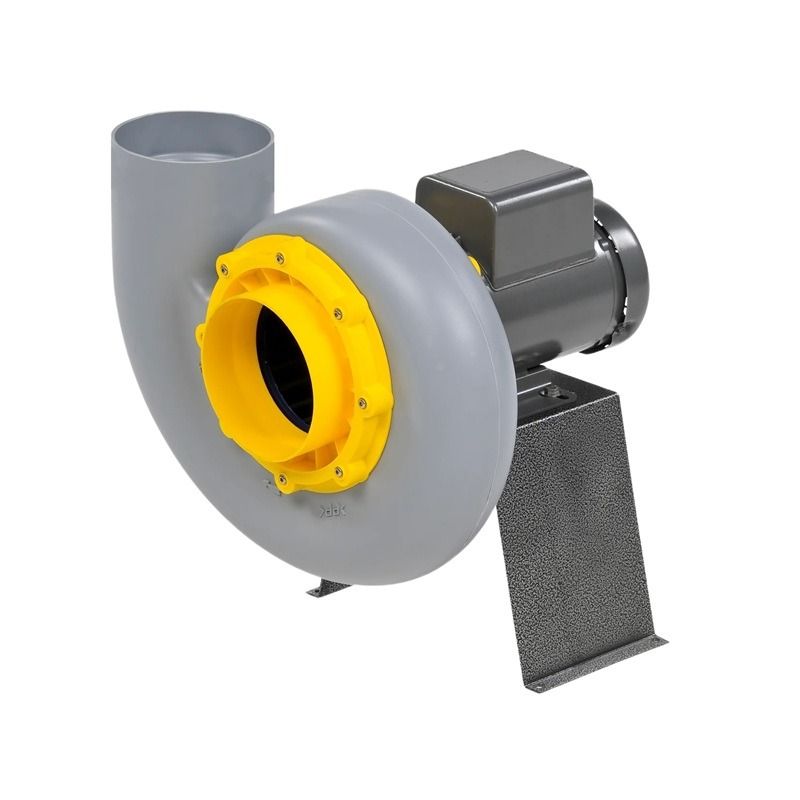

Plastec 20 Series Direct Drive Forward Curve Blower Corrosive Environment 610 CFM .25 HP 3 Phase - PLA20ST6P

By

Plastec

In stock
Model

P20ST6P025

ID

16625

Availability: Ships in 2-3 Business Days

Authorized Plastec Dealer

$1,952.88

Free Shipping
Accessories for this product
Customer Reviews
BBB Rating
Best Pricing

Description

Features

  • Direct Drive Forward Curve
  • Wheel Diameter 7.9"
  • Max CFM 610
  • Decibels 43 dBA @ 5 Feet
  • Inlet Diameter 6.3"
  • Outlet Diameter 6.62"
  • 230/460 V 3-Phase 50/60 Hz
  • Motor HP .25
  • Motor RPM 1140
  • Motor Type Standard Duty 3 Phase
  • Motor Enclosure Totally Enclosed Fan Cooled

Plastec centrifugal fans are available in 6 sizes from 5" up to 23.50" inlet. They are designed to exhaust fumes from highly corrosive environments such as laboratories, chemical plants, hospitals, universities, etc. The all-polypropylene construction and thick walls ensure maximum protection against acids and corrosion.

Alternate Model Number: PLA20ST6P

Product Specifications

More Information
Plastec 20 Series Direct Drive Forward Curve Blower Corrosive Environment 610 CFM .25 HP 3 Phase - PLA20ST6P
SKUP20ST6P025
Weight (in lbs)39.000000
Brand/ManufacturerPlastec
Additional InformationUL Listed and CSA Certified
Additional InformationFor Corrosive Environment
Additional InformationMaximum Static Pressure: 0.6 inWg
Blower MotorStandard Duty 3 Phase
Drive TypeDirect
Maximum CFM610
Decibel Level (dBA)43
Wheel Size8"
Motor RPM1140
Horsepower0.25
Horsepower.25 HP
Electrical208-230 / 460 V, 3 Phase, 60 Hz
Amperage Requirement1.2
Height20.06
Width14.70
Depth15.25
