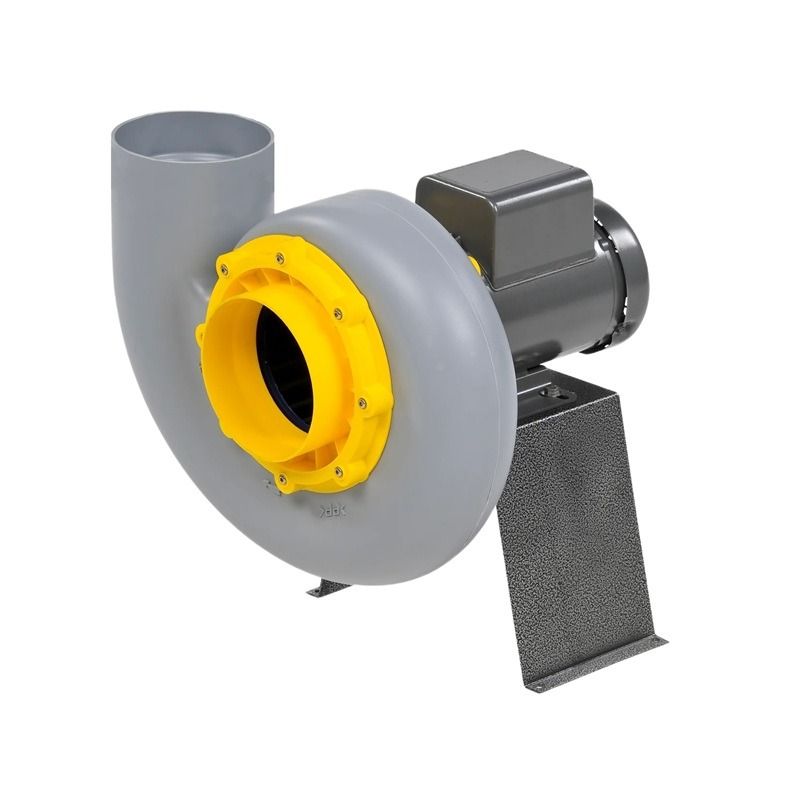

Plastec 20 Direct Drive Series Forward Curve Blower Corrosive Environment 910 CFM .33 HP 3 Phase - PLA20ST4P

By

Plastec

In stock
Model

P20ST4P033

ID

16624

Availability: Ships in 2-3 Business Days

Authorized Plastec Dealer

Suggested Retail $1,725.25 Your Low Price Special Price $1,675.00

Free Shipping
Accessories for this product
Customer Reviews
BBB Rating
Best Pricing

Description

Features

  • Direct Drive Forward Curve
  • Wheel Diameter 7.9"
  • Max CFM 910
  • Decibels 54 dBA @ 5 Feet
  • Inlet Diameter 6.3"
  • Outlet Diameter 6.62"
  • 230/460 V 3-Phase 50/60 Hz
  • Motor HP .33
  • Motor RPM 1725
  • Motor Type Standard Duty 3 Phase
  • Motor Enclosure Totally Enclosed Fan Cooled

Plastec centrifugal fans are available in 6 sizes from 5" up to 23.50" inlet. They are designed to exhaust fumes from highly corrosive environments such as laboratories, chemical plants, hospitals, universities, etc. The all-polypropylene construction and thick walls ensure maximum protection against acids and corrosion.

Alternate Model Number: PLA20ST4P

Product Specifications

More Information
Plastec 20 Direct Drive Series Forward Curve Blower Corrosive Environment 910 CFM .33 HP 3 Phase - PLA20ST4P
SKUP20ST4P033
Weight (in lbs)28.000000
Brand/ManufacturerPlastec
Additional InformationUL Listed and CSA Certified
Additional InformationFor Corrosive Environment
Additional InformationMaximum Static Pressure: 1.44 inWg
Blower MotorStandard Duty 3 Phase
Drive TypeDirect
Maximum CFM910
Decibel Level (dBA)54
Wheel Size8"
Motor RPM1725
Horsepower0.33
Horsepower.33 HP
Electrical208-230 / 460 V, 3 Phase, 60 Hz
Amperage Requirement1.7
Height20.06
Width17.60
Depth15.25
