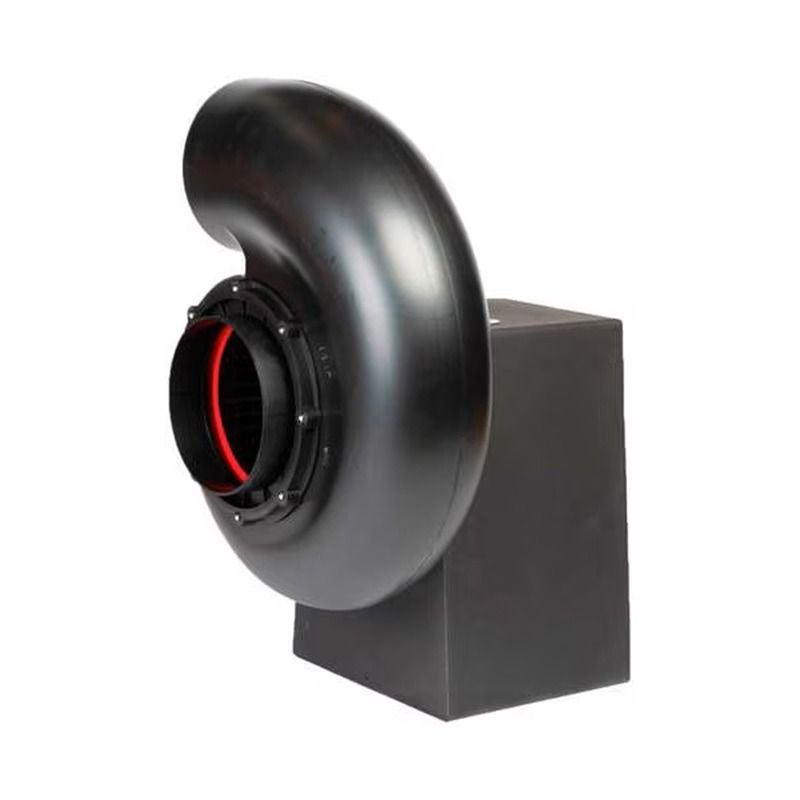

Plastec 30 Series Direct Drive Forward Curve Blower Hazardous Location 1.5 HP 3400 CFM 3 Phase - PLA30XT4P-CIP

By

Plastec

Ships in 2-3 Business Days
Model

P30XT4P150

ID

16646

Availability: Ships in 2-3 Business Days

Authorized Plastec Dealer

$3,882.00
Bread Checkout

Free Shipping
Accessories for this product

Description

Features

  • Direct Drive Forward Curve
  • Wheel Diameter 11.8"
  • Max CFM 2900
  • Decibels 54 dBA @ 5 Feet
  • Inlet Diameter 9.84"
  • Outlet Diameter 10.75"
  • 230/460 V 3-Phase 50/60 Hz
  • Motor HP 2
  • Motor RPM 1725
  • Motor Type Explosion Proof 3 Phase
  • Motor Enclosure Totally Enclosed Fan Cooled
  • Carbon Impregnated Polypropylene (CIP) Housing Assembly

Plastec centrifugal fans are available in 6 sizes from 5" up to 23.50" inlet. They are designed to exhaust fumes from highly corrosive environments such as laboratories, chemical plants, hospitals, universities, etc. The all-polypropylene construction and thick walls ensure maximum protection against acids and corrosion.

Plastec Series Carbon Impregnated Polypropylene (CIP) blowers are designed to work in highly corrosive air exhaust applications containing potentially explosive atmospheres.

Alternate Model Number: PLA30XT4P-CIP

Product Specifications

More Information
Plastec 30 Series Direct Drive Forward Curve Blower Hazardous Location 1.5 HP 3400 CFM 3 Phase - PLA30XT4P-CIP
Weight (in lbs) 85.000000
Manufacturer Plastec
Additional Information UL Listed and CSA Certified
Additional Information For Hazardous Location
Additional Information Carbon Impregnated Polypropylene Housing Assembly (CIP)
Blower Motor Explosion Proof 3 Phase
Drive Type Direct
Static Pressure 3.3 inWg
Maximum CFM 3400
Decibel Level (dBA) 54
Wheel Size 12"
Motor RPM 1725
Horsepower 1.5
Horsepower 1.5 HP
Electrical 60 Hz
Amperage Requirement 6.4
Height 29.52
Width 23.68
Depth 25.86
