Features
Plastec centrifugal fans are available in 6 sizes from 5" up to 23.50" inlet. They are designed to exhaust fumes from highly corrosive environments such as laboratories, chemical plants, hospitals, universities, etc. The all-polypropylene construction and thick walls ensure maximum protection against acids and corrosion.
Alternate Model Number: PLA35XT6P

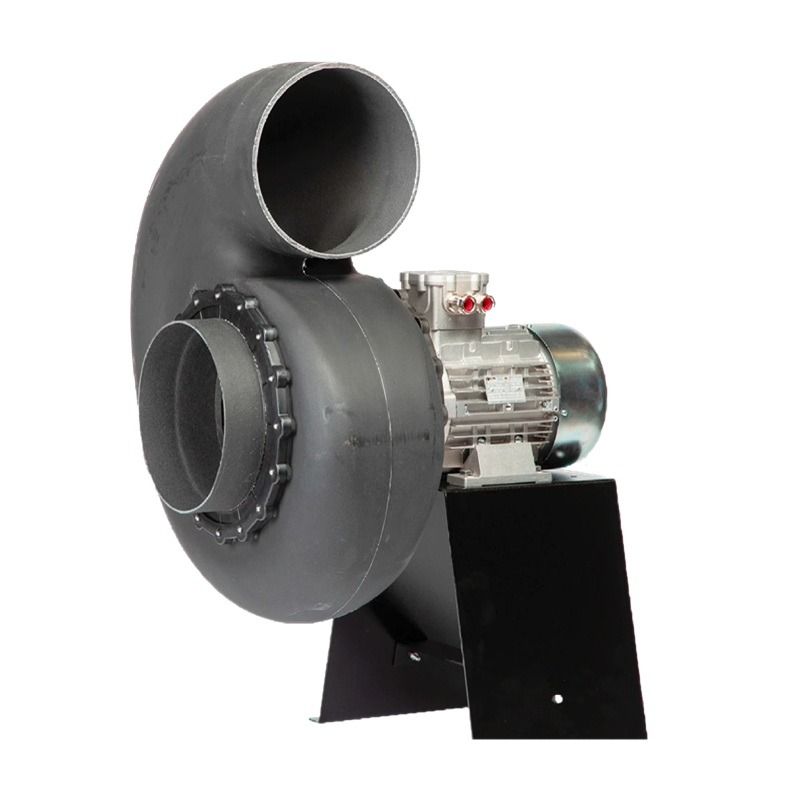

| Plastec 35 Series Direct Drive Forward Curve Blower Hazardous Location 3 HP 6400 CFM 3 Phase - PLA35XT6P | |
|---|---|
| SKU | P35XT6P300 |
| Weight (in lbs) | 214.000000 |
| Brand/Manufacturer | Plastec |
| Additional Information | UL Listed and CSA Certified |
| Additional Information | For Hazardous Location |
| Blower Motor | 3 Phase Explosion Proof |
| Drive Type | Direct |
| Static Pressure | 5.4 inWg |
| Maximum CFM | 6400 |
| Decibel Level (dBA) | 71 |
| Wheel Size | 14" |
| Motor RPM | 1140 |
| Horsepower | 3 |
| Horsepower | 3 HP |
| Electrical | 208-230 / 460 V, 3 Phase, 60 Hz |
| Amperage Requirement | 14.4 |
| Height | 37 |
| Width | 29.51 |
| Depth | 31.54 |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents |
| Safety Information | PROPOSITION 65 WARNING |
