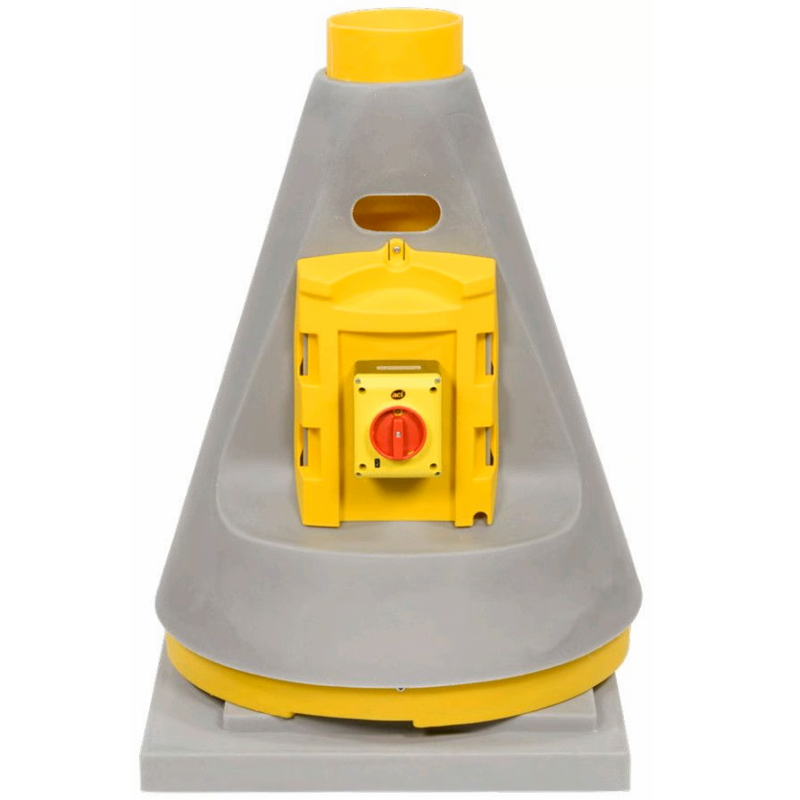

Plastec Jet 20 Series Direct Drive Corrosive Environment Centrifugal Fan .33 HP 630 CFM Single Phase - JET20SS4P
Description
Features
- Direct Drive Inline Centrifugal Fan
- Wheel Diameter 7.9"
- Max CFM 630
- Decibels 75 dBA @ 5 Feet
- Inlet Diameter 6.3"
- Outlet Diameter 6.3"
- 115/230 V 1-Phase 60 Hz
- Full Load Amps 6.6/3.3
- Motor HP .33
- Motor RPM 1725
- Motor Type Single Phase Standard Duty
- Motor Enclosure Totally Enclosed Fan Cooled
Plastec Jet Series inline centrifugal fans range from 6" up to 10" inlet. Mounted on a roof curb or inline, Jet fans generate a high plume exhaust to ensure maximum dilution of gases in the environment. Smooth and quiet performance. Ideal for water treatment plants and fume hood exhaust applications.
Alternate Model Number: JET20SS4P
Product Specifications
| Plastec Jet 20 Series Direct Drive Corrosive Environment Centrifugal Fan .33 HP 630 CFM Single Phase - JET20SS4P | |
|---|---|
| SKU | J20SS4P033 |
| Weight (in lbs) | 57.000000 |
| Brand/Manufacturer | Plastec |
| Additional Information | UL Listed and CSA Certified |
| Additional Information | For Corrosive Environment |
| Additional Information | Maximum Static Pressure: 1 inWg |
| Blower Motor | Single Phase Standard Duty |
| Drive Type | Direct |
| Maximum CFM | 630 |
| Decibel Level (dBA) | 75 |
| Wheel Size | 8" |
| Motor RPM | 1725 |
| Horsepower | 0.33 |
| Horsepower | 1 / 3 HP |
| Electrical | 120/240 V, Single Stage, 60 Hz |
| Amperage Requirement | 5.2 |
| Height | 33.25 |
| Width | 21.25 |
| Depth | 21.25 |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents |
| Safety Information | PROPOSITION 65 WARNING |
