Today's Hours 8am - 11pm estPlastec Jet 20 Series Direct Drive Hazardous Location Centrifugal Fan - XP 1.5 HP 1250 CFM 1 Phase
Ships in 2-3 Business Days
By
Plastec
In stock
Model
J20XS2P150
ID
231747
Was $7,017.30 Your Low Price Special Price $5,929.62
Product Features
- Easy to install and can be roof or wall mounted
- AMCA-certified for verified airflow and sound performance
- Low noise operation suitable for sensitive or quiet environments
- Made from strong, high-density UV-treated polypropylene for maximum corrosion resistance
OVERVIEW

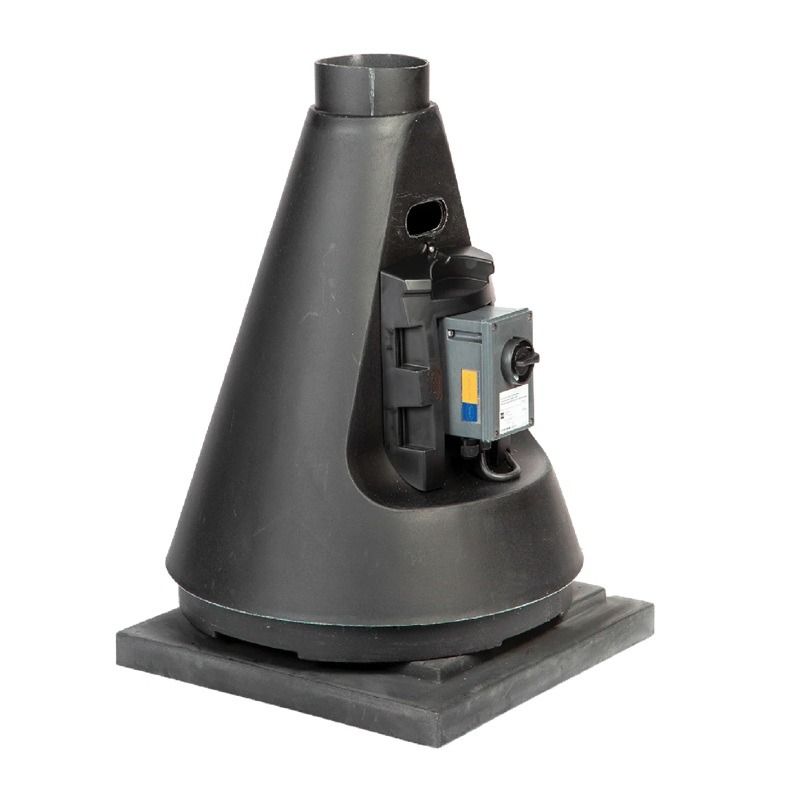

Jet 20 XP is a low-noise centrifugal fan (as low as 64 dB) designed for corrosive and hazardous environments. It features an integrated weather hood, drain plug, and disconnect for easy roof or wall installation. Built with carbon-impregnated polypropylene and explosion-proof materials, it offers excellent resistance to chemicals, UV exposure, and harsh pollutants. Ideal for fume cabinets, water treatment, tank exhaust, marine settings, laboratories, and chemical plants.
Key Features
- Carbon-impregnated polypropylene construction ensures explosion-safe, anti-static performance
- HALS-stabilized polypropylene provides superior UV resistance and long-term durability
- Motor is isolated from the airstream to prevent exposure to corrosive gases
- Integrated weather hood, drain plug, and disconnect switch for simplified outdoor installation
- Low noise operation (~64 dB), ideal for noise-sensitive environments
- Direct-drive design eliminates belts and pulleys, minimizing maintenance needs
- AMCA-certified for airflow and sound performance under standard test conditions
Blower Specifications
- Direct Drive Inline Centrifugal Fan
- Wheel Diameter: 7.9"
- Maximum Airflow: 1250 CFM
- Acoustic dB(a): 70.3 dBA
- Inlet Diameter: 6.3"
- Outlet Diameter: 6.3"
- Voltage: 115/208-230 V, 1-Phase, 50/60 Hz
- Motor Power: 1.5 HP
- Motor Speed: 3510 RPM
- Motor Type: Three Phase Explosion Proof (TEFC)
Warranty Information
Motor WarrantyAll motors are covered by a one-year warranty from the date of shipment, provided by the motor manufacturer. If service is required during the warranty period, the motor must be taken to the nearest authorized motor service station. Failure to use an authorized service station may void the motor warranty. If you are unsure of an authorized service location, contact the factory for assistance. Installation, removal, re-installation costs, and any consequential damages are not covered.
Blower Housing Assembly WarrantyThe blower housing assembly is warranted to be free from defects in materials and workmanship for two (2) years from the date of original shipment. Defective units or parts reported within this period may be replaced at the manufacturer’s option when returned to the factory with transportation prepaid by the sender.
ExclusionsThe following items are not covered by this warranty:
- Normal wear from heat, abrasion, or chemical exposure
- Damage from improper installation, incorrect electrical connections, or unauthorized alterations
- Damage resulting from misuse, abuse, or abnormal operating conditions
- Lack of proper maintenance
- Transportation costs to and from the factory for warranty repairs
This warranty is limited to repair or replacement of defective parts as described above. The manufacturer is not responsible for installation, removal, or re-installation costs, nor for any consequential damages resulting from product failure or improper operation.
See full warranty on Installation, Operation & Maintenance ManualDurable Materials & Construction
The Plastec Jet 20 XP is built for environments where both corrosion resistance and explosion safety are essential. Its airflow path, including the housing, impeller, and wetted surfaces, is constructed of heavy-duty polypropylene enhanced with HALS (Hindered-Amine Light Stabilizers) to resist UV degradation and withstand harsh chemical atmospheres. The “XP” variant uses carbon-impregnated polypropylene, which allows safe static dissipation and compliance in classified areas. The design isolates the motor from the airstream, preventing corrosive fumes from damaging motor components. Its integrated construction includes a weather hood and a drain plug that permit outdoor installation while protecting internal parts from rain and contaminants. With a noise level as low as 64 dB, it’s suitable for locations where acoustics matter. Because it’s direct-drive, there are no belts or pulleys to maintain, which improves longevity and reduces downtime.
Suitable Applications for Plastec Jet 20 XP Inline Blower
- Laboratories: Ideal for exhausting corrosive or chemical fumes from lab hoods and workstations while maintaining a safe air environment.
- Water and Wastewater Treatment Plants: Designed to handle moist and chemically aggressive air typically found in pump rooms and chemical storage areas.
- Chemical Processing Facilities: Perfect for ventilating vapors and gases produced during mixing, plating, or etching operations.
- Educational and Research Institutions: Used to safely exhaust fumes from laboratory classrooms, test chambers, and research spaces.
- Pharmaceutical and Biotech Industries: Ensures clean, contaminant-free air in production and quality control areas with sensitive processes.
- Food and Beverage Manufacturing: Provides odor and vapor control in environments requiring corrosion-resistant ventilation solutions.
- Coastal and Marine Environments: Performs reliably in salt-laden, humid air thanks to its polypropylene construction that prevents corrosion and degradation.
