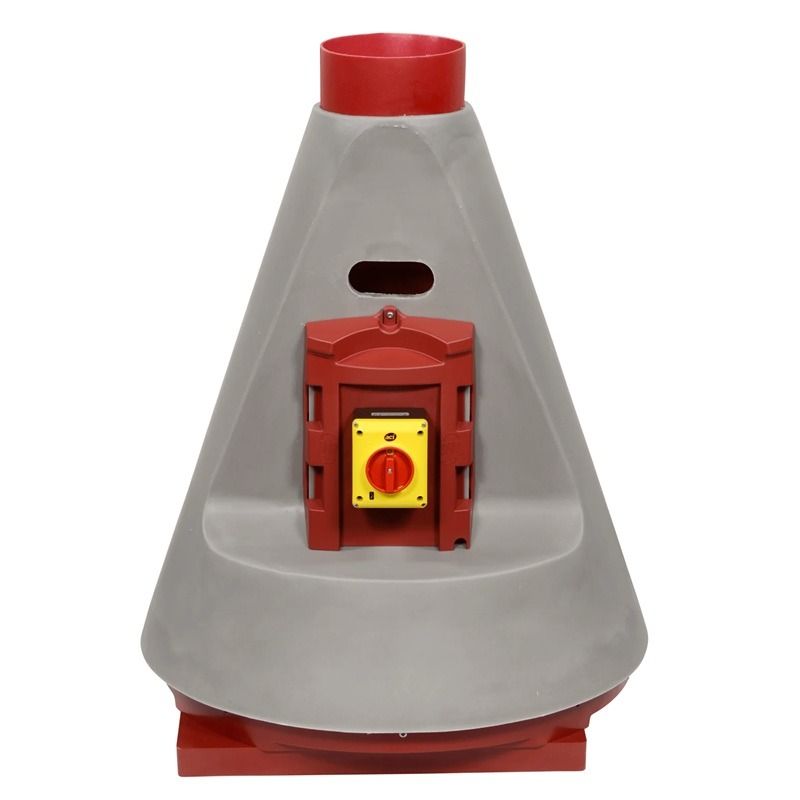

Today's Hours 8am - 11pm estPlastec Jet 25 Series Direct Drive XP Hazardous Location Centrifugal Fan 0.5 HP 1370 CFM 1 Phase
By
Plastec
In stock
Model
J25XS4P050
ID
231769
Was $7,821.00 Your Low Price Special Price $6,608.75
Product Features
- Easy to install and can be roof or wall mounted
- AMCA-certified for verified airflow and sound performance
- Low noise operation suitable for sensitive or quiet environments
- Made from strong, high-density UV-treated polypropylene for maximum corrosion resistance
OVERVIEW
The Jet 25 is a compact, low-noise blower that operates as quietly as 70 dB and includes a built-in weather hood, drain plug, and disconnect for convenience. It is easy to install and can be mounted on either the roof or the wall. Typical applications include fume cabinet exhaust, water treatment facilities, tank exhaust, and environments with high salt content. To ensure durability outdoors, the polypropylene construction is enhanced with Hindered-Amine Light Stabilizers (HALS) for added UV protection.
Key Features
- Durable thick-wall polypropylene housing for excellent chemical and corrosion resistance
- HALS-stabilized material ensures superior UV protection and long-term outdoor durability
- Includes integrated weather hood, drain plug, and disconnect for rooftop or outdoor installation
- Operates at a low noise level of 70 dB, ideal for quieter environments
- Motor positioned outside the airstream to safeguard against corrosive gases
- Direct-drive design eliminates belts, minimizing maintenance requirements
- AMCA-certified for both airflow and acoustics, ensuring reliable, tested performance
Blower Specification
- Type: Direct Drive Inline Centrifugal Fan
- Wheel Diameter: 9.8"
- Maximum Airflow: 1370 CFM
- Acoustic dB(a): 76 dBA
- Inlet Diameter: 7.87"
- Outlet Diameter: 7.87"
- Voltage: 115/208-230 V, 1-Phase
- Motor Power: 0.5 HP
- Motor Speed: 1720 RPM
- Motor Type: Single Phase Explosion Proof (TEFC)
Warranty Information
Motor WarrantyAll motors are covered by a one-year warranty from the date of shipment, provided by the motor manufacturer. If service is required during the warranty period, the motor must be taken to the nearest authorized motor service station. Failure to use an authorized service station may void the motor warranty. If you are unsure of an authorized service location, contact the factory for assistance. Installation, removal, re-installation costs, and any consequential damages are not covered.
Blower Housing Assembly WarrantyThe blower housing assembly is warranted to be free from defects in materials and workmanship for two (2) years from the date of original shipment. Defective units or parts reported within this period may be replaced at the manufacturer’s option when returned to the factory with transportation prepaid by the sender.
ExclusionsThe following items are not covered by this warranty:
- Normal wear from heat, abrasion, or chemical exposure
- Damage from improper installation, incorrect electrical connections, or unauthorized alterations
- Damage resulting from misuse, abuse, or abnormal operating conditions
- Lack of proper maintenance
- Transportation costs to and from the factory for warranty repairs
This warranty is limited to repair or replacement of defective parts as described above. The manufacturer is not responsible for installation, removal, or re-installation costs, nor for any consequential damages resulting from product failure or improper operation.
See full warranty on Installation, Operation & Maintenance ManualDurable Materials & Construction
The Plastec Jet 25 is engineered specifically for corrosive and challenging environments where conventional metal fans fail. Every component exposed to the airstream, including the housing, impeller, and internal duct surfaces, is crafted from durable polypropylene with thick-wall construction for high resistance to acids, solvents, salts, and moisture. To further enhance longevity in sunlight or outdoor settings, the polypropylene includes HALS (Hindered-Amine Light Stabilizers), providing UV resistance and helping prevent material degradation over time. Noise control is a priority, with the unit capable of running as low as 70 dB under normal operation. Because the motor is placed outside of the airflow path, corrosive gases and vapors do not contact the motor, improving its reliability and lifespan.
In summary, the Jet 25 combines corrosion-resistant materials, weather-ready design, quiet performance, and low-maintenance engineering to serve demanding applications in laboratories, chemical processing, marine environments, wastewater systems, and other corrosive air handling scenarios.
Suitable Applications for Plastec Jet 25 Inline Blower
- Laboratories: Ideal for exhausting corrosive or chemical fumes from lab hoods and workstations while maintaining a safe air environment.
- Water and Wastewater Treatment Plants: Designed to handle moist and chemically aggressive air typically found in pump rooms and chemical storage areas.
- Chemical Processing Facilities: Perfect for ventilating vapors and gases produced during mixing, plating, or etching operations.
- Educational and Research Institutions: Used to safely exhaust fumes from laboratory classrooms, test chambers, and research spaces.
- Pharmaceutical and Biotech Industries: Ensures clean, contaminant-free air in production and quality control areas with sensitive processes.
- Food and Beverage Manufacturing: Provides odor and vapor control in environments requiring corrosion-resistant ventilation solutions.
- Coastal and Marine Environments: Performs reliably in salt-laden, humid air thanks to its polypropylene construction that prevents corrosion and degradation.
