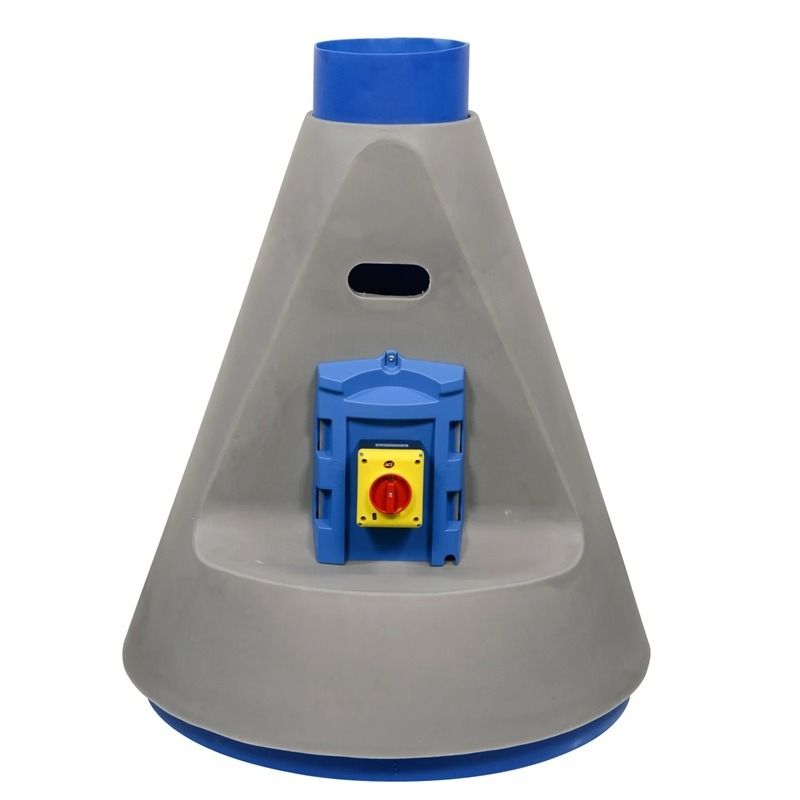

Plastec Jet 30 Series Direct Drive Corrosive Environment Centrifugal Fan 1.5 HP 2700 CFM 3 Phase - JET30ST4P
Description
Features
- Direct Drive Inline Centrifugal Fan
- Wheel Diameter 11.8"
- Max CFM 2700
- Decibels 88 dBA @ 5 Feet
- Inlet Diameter 9.84"
- Outlet Diameter 9.84"
- 230/460 V 3-Phase
- Full Load Amps 6.6/3.3
- Motor HP 2
- Motor RPM 1725
- Motor Type 3 Phase Standard Duty
- Motor Enclosure Totally Enclosed Fan Cooled
Plastec Jet Series inline centrifugal fans range from 6" up to 10" inlet. Mounted on a roof curb or inline, Jet fans generate a high plume exhaust to ensure maximum dilution of gases in the environment. Smooth and quiet performance. Ideal for water treatment plants and fume hood exhaust applications.
Alternate Model Number: JET30ST4P
Product Specifications
| Plastec Jet 30 Series Direct Drive Corrosive Environment Centrifugal Fan 1.5 HP 2700 CFM 3 Phase - JET30ST4P | |
|---|---|
| SKU | J30ST4P150 |
| Weight (in lbs) | 96.000000 |
| Brand/Manufacturer | Plastec |
| Additional Information | UL Listed and CSA Certified |
| Additional Information | For Corrosive Environment |
| Additional Information | Maximum Static Pressure: 3.25 inWg |
| Blower Motor | 3 Phase Standard Duty |
| Drive Type | Direct |
| Maximum CFM | 2700 |
| Decibel Level (dBA) | 88 |
| Wheel Size | 12" |
| Motor RPM | 1725 |
| Horsepower | 1.5 |
| Horsepower | 1.5 HP |
| Electrical | 208 - 230 / 460 V, 3 Phase, 60 Hz |
| Amperage Requirement | 5.8 |
| Height | 43.31 |
| Width | 21.25 |
| Depth | 21.25 |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents |
| Safety Information | PROPOSITION 65 WARNING |
