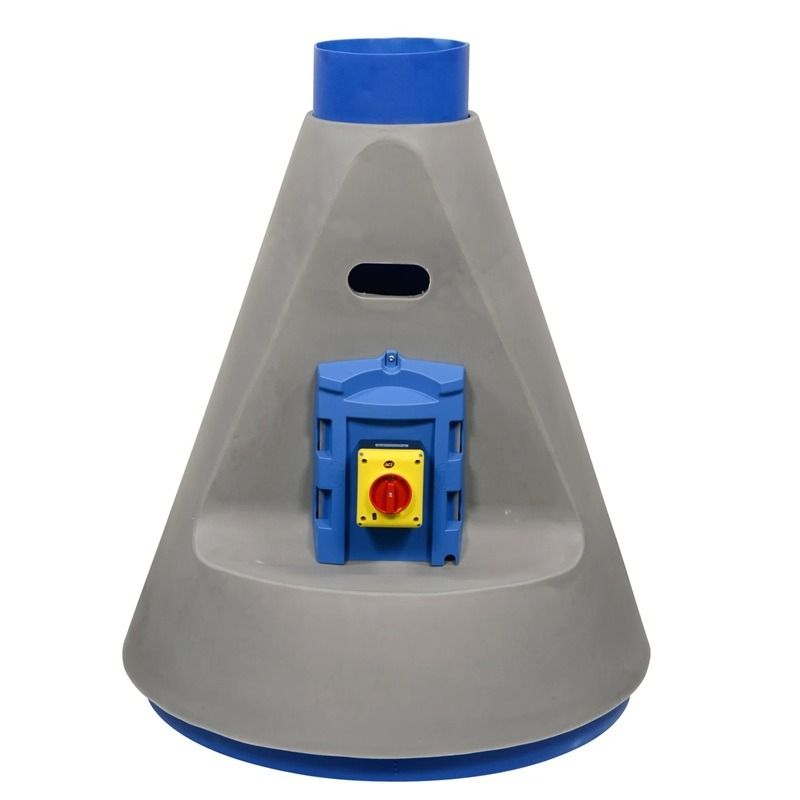

Today's Hours 8am - 11pm estPlastec Jet 30 Series Direct Drive Corrosive Environment Centrifugal Fan .75 HP 1800 CFM Single Phase
By
Plastec
In stock
Model
J30SS6P075
ID
16689
Was $6,042.56 Your Low Price Special Price $4,842.50
Product Features
- Easy to install and can be roof or wall mounted
- AMCA-certified for verified airflow and sound performance
- Low noise operation suitable for sensitive or quiet environments
- Made from strong, high-density UV-treated polypropylene for maximum corrosion resistance
OVERVIEW
The Jet 30 is a compact, low-noise unit (as quiet as 77 dB) that includes an integrated weather hood, drain plug, and disconnect for convenience. Designed for simple roof or wall installation, it is commonly used for fume cabinet exhaust, water treatment systems, tank ventilation, and marine or salty environments. Built with Hindered-Amine Light Stabilizers (HALS), it offers enhanced UV resistance and long-lasting outdoor durability.
Key Features
- UV-treated polypropylene construction for superior resistance to chemicals and corrosion
- HALS-stabilized material provides added UV protection and longer service life
- Includes integrated weather hood, drain plug, and disconnect for secure outdoor installation
- Motor mounted outside the airstream to prevent exposure to corrosive gases
- Low-noise operation (approximately 77 dB), ideal for noise-sensitive applications
- Direct-drive configuration eliminates belts and pulleys, minimizing wear and maintenance
- AMCA-certified airflow and acoustics ensure tested, reliable performance
Blower Specification
- Type: Direct Drive Inline Centrifugal Fan
- Wheel Diameter: 11.8"
- Maximum Airflow: 1800 CFM
- Noise Level: 77 dBA @ 5 Feet
- Inlet Diameter: 9.84"
- Outlet Diameter: 9.84"
- Voltage: 115/230 V, Single Phase, 60 Hz
- Full Load Amps: 6.6 / 3.3
- Motor Power: 0.75 HP
- Motor Speed: 1150 RPM
- Motor Type: Single Phase Standard Duty
- Motor Enclosure: Totally Enclosed Fan Cooled (TEFC)
Alternate Model Number: JET30SS6P
Warranty Information
Motor WarrantyAll motors are covered by a one-year warranty from the date of shipment, provided by the motor manufacturer. If service is required during the warranty period, the motor must be taken to the nearest authorized motor service station. Failure to use an authorized service station may void the motor warranty. If you are unsure of an authorized service location, contact the factory for assistance. Installation, removal, re-installation costs, and any consequential damages are not covered.
Blower Housing Assembly WarrantyThe blower housing assembly is warranted to be free from defects in materials and workmanship for two (2) years from the date of original shipment. Defective units or parts reported within this period may be replaced at the manufacturer’s option when returned to the factory with transportation prepaid by the sender.
ExclusionsThe following items are not covered by this warranty:
- Normal wear from heat, abrasion, or chemical exposure
- Damage from improper installation, incorrect electrical connections, or unauthorized alterations
- Damage resulting from misuse, abuse, or abnormal operating conditions
- Lack of proper maintenance
- Transportation costs to and from the factory for warranty repairs
This warranty is limited to repair or replacement of defective parts as described above. The manufacturer is not responsible for installation, removal, or re-installation costs, nor for any consequential damages resulting from product failure or improper operation.
See full warranty on Installation, Operation & Maintenance ManualDurable Materials & Construction
The Plastec Jet 30 is built to handle tough, corrosive environments. All airstream-contact surfaces, including the housing, impeller, and duct paths, are made from UV-treated, high-density polypropylene that resists acids, salts, solvents, and harsh vapors. To improve durability outdoors, it incorporates Hindered-Amine Light Stabilizers (HALS) for added UV protection. The blower comes with a weather hood, drain plug, and electrical disconnect to safeguard internal components from moisture and contaminants. Its motor is placed outside the airstream, protecting it from corrosive fumes and extending its service life. With its direct-drive design, there are no belts or pulleys to wear or adjust, which means less maintenance and greater long-term reliability.
Suitable Applications for Plastec Jet 30 Inline Blower
- Laboratories: Ideal for exhausting corrosive or chemical fumes from lab hoods and workstations while maintaining a safe air environment.
- Water and Wastewater Treatment Plants: Designed to handle moist and chemically aggressive air typically found in pump rooms and chemical storage areas.
- Chemical Processing Facilities: Perfect for ventilating vapors and gases produced during mixing, plating, or etching operations.
- Educational and Research Institutions: Used to safely exhaust fumes from laboratory classrooms, test chambers, and research spaces.
- Pharmaceutical and Biotech Industries: Ensures clean, contaminant-free air in production and quality control areas with sensitive processes.
- Food and Beverage Manufacturing: Provides odor and vapor control in environments requiring corrosion-resistant ventilation solutions.
- Coastal and Marine Environments: Performs reliably in salt-laden, humid air thanks to its polypropylene construction that prevents corrosion and degradation.
