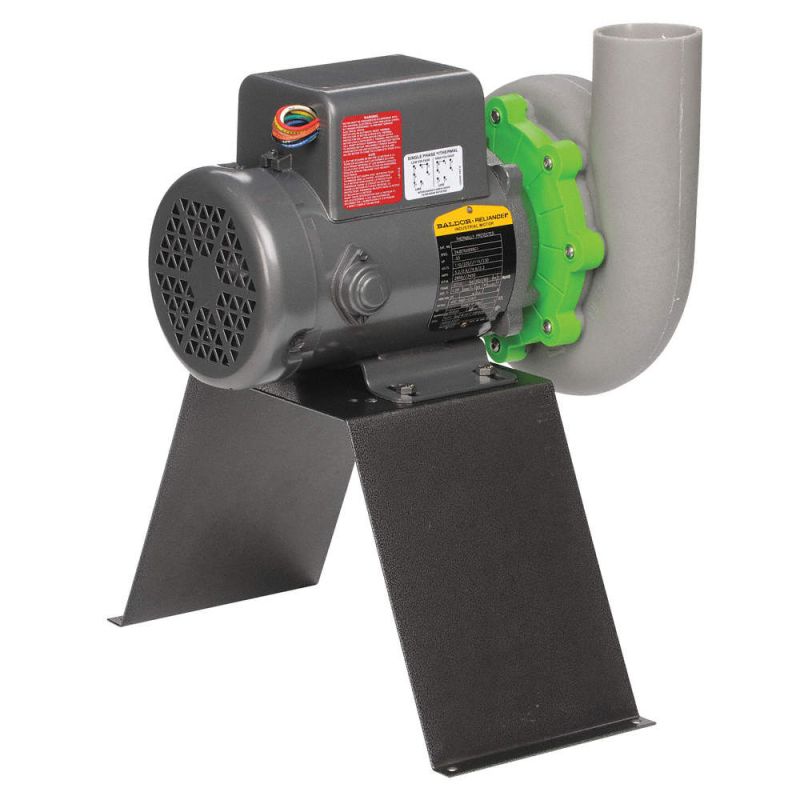

Today's Hours 8am - 11pm estPlastec Storm 10 Series Direct Drive Forward Curve Blower Corrosive Environment .16 HP 150 CFM Single Phase
By
Plastec
In stock
Model
S10SS2P016
ID
16654
Was $1,419.61 Your Low Price Special Price $1,151.43
Product Features
- Direct drive - asynchronous motor
- Forward Curve Impeller design for high airflow and quiet operation
- Designed to exhaust fumes from highly corrosive environments like laboratories and chemical industries
- Built with all-polypropylene construction for maximum resistance to acids and corrosion
OVERVIEW
Designed to exhaust fumes from highly corrosive environments with 4 sizes available from 3" to 6" inlet/outlet. It is an excellent system for Scrubber Applications and other systems requiring low airflow at higher static pressure. Suitable for many applications such as acid tank ventilation, hood exhaust, commercial washers wastewater, chemical cabinets/rooms, etc.
Alternate Model Number: STORM10SS2P
Features
- Direct Drive Forward Curve Blower
- Wheel Diameter 5.8"
- Max CFM 150
- Decibels 74.4 dBA @ 5 Feet
- Inlet Diameter 2.95"
- Outlet Diameter 2.95"
- 115/230 V 1-Phase 50/60 Hz
- Motor HP 0.16
- Motor RPM 3330
- Motor Type Single Phase Standard Duty
- Motor Enclosure Totally Enclosed Fan Cooled
Warranty Information
Motor WarrantyAll motors are covered by a one-year warranty from the date of shipment, provided by the motor manufacturer. If service is required during the warranty period, the motor must be taken to the nearest authorized motor service station. Failure to use an authorized service station may void the motor warranty. If you are unsure of an authorized service location, contact the factory for assistance. Installation, removal, re-installation costs, and any consequential damages are not covered.
Blower Housing Assembly WarrantyThe blower housing assembly is warranted to be free from defects in materials and workmanship for two (2) years from the date of original shipment. Defective units or parts reported within this period may be replaced at the manufacturer’s option when returned to the factory with transportation prepaid by the sender.
ExclusionsThe following items are not covered by this warranty:
- Normal wear from heat, abrasion, or chemical exposure
- Damage from improper installation, incorrect electrical connections, or unauthorized alterations
- Damage resulting from misuse, abuse, or abnormal operating conditions
- Lack of proper maintenance
- Transportation costs to and from the factory for warranty repairs
This warranty is limited to repair or replacement of defective parts as described above. The manufacturer is not responsible for installation, removal, or re-installation costs, nor for any consequential damages resulting from product failure or improper operation.
See full warranty on Installation, Operation & Maintenance ManualDurable Materials & Construction

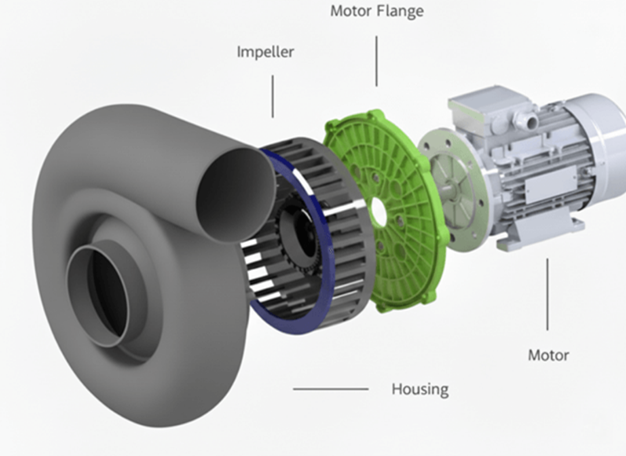

The Plastec Storm 10 blower is engineered for aggressive, corrosive, and chemical environments, combining reliable performance with rugged construction. Its entire airstream path, including the housing and impeller, is made of injection-molded polypropylene, a plastic resin that is inherently resistant to acids, solvents, salts, and moisture. The polypropylene is enhanced with HALS (Hindered-Amine Light Stabilizers) for improved UV resistance, making the blower suitable for exposed or outdoor use. Because there’s no metal in the flow path, the Storm 10 resists corrosion and chemical attack, making it ideal for applications where metallic components would fail. This all-plastic construction helps ensure long life in harsh conditions, including those found in chemical scrubbers, fume exhausts, and process venting environments.
The Storm 10 offers outstanding durability in chemically aggressive settings, delivering performance with minimal maintenance and long-term stability.
Suitable Applications for Plastec Storm 10 Forward Curve Blower
- Chemical plants and labs – Designed to exhaust acidic fumes and gases in plants, labs, and processing areas with corrosion-resistant polypropylene build.
- Scrubber systems – Fits into scrubbers and ducted exhaust lines requiring higher static pressure performance.
- Lab Fume Extraction – Removes harmful gases from hoods, cabinets, and enclosures in research and cleanroom environments.
- Water Treatment – Handles chlorine, bleach, and other treatment chemicals in wastewater facilities.
- Marine & Coastal Use – UV-stabilized polypropylene resists salt, moisture, and harsh dockside conditions.
- Battery & Storage Areas – Safely manages hydrogen and chemical off-gassing in battery, EV, and fuel cell rooms.
- Industrial Processes – Supports plating, cleaning, and surface treatment lines where corrosive chemicals are present.
