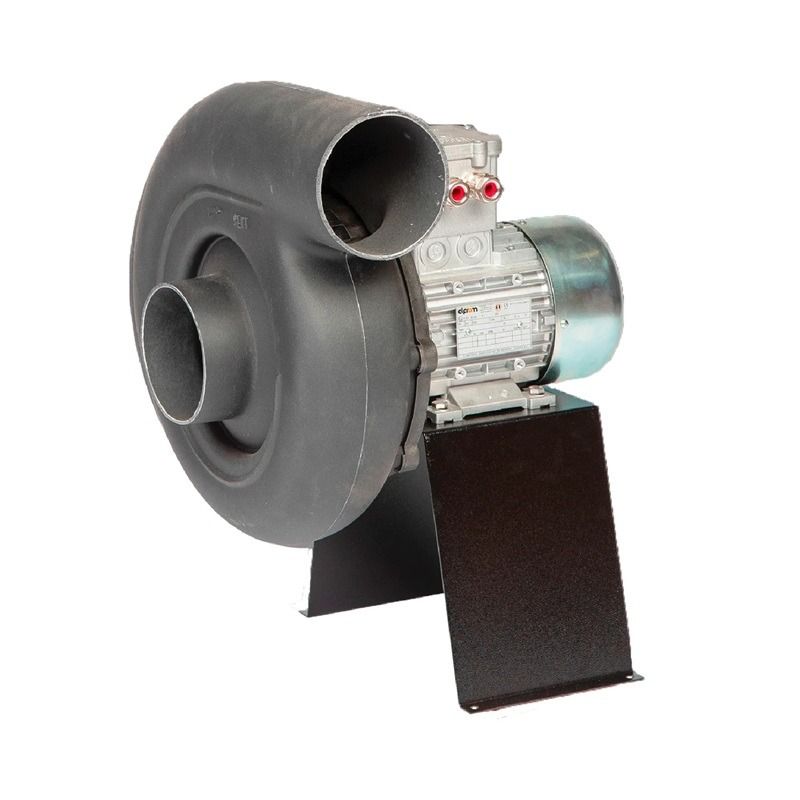

Today's Hours 8am - 11pm estPlastec Storm 14 Series Direct Drive Forward Curve Blower XP Hazardous Location 1.5 HP 800 CFM 3 Phase
By
Plastec
In stock
Model
S14XT2P150
ID
16672
Was $5,666.61 Your Low Price Special Price $4,551.99
Product Features
- Direct drive - asynchronous motor
- Forward Curve Impeller design for high airflow and quiet operation
- Designed to exhaust fumes from highly corrosive environments like laboratories and chemical industries
- Built with all-polypropylene construction for maximum resistance to acids and corrosion
OVERVIEW
Designed to exhaust fumes from highly corrosive environments with 4 sizes available from 3" to 6" inlet/outlet. It is an excellent system for Scrubber Applications and other systems requiring low airflow at higher static pressure. Suitable for many applications such as acid tank ventilation, hood exhaust, commercial washers wastewater, chemical cabinets/rooms, etc.
Storm Series Carbon Impregnated Polypropylene (CIP) blowers designed to work in highly corrosive air exhaust applications containing potentially explosive atmospheres.
Blower Specifications
- Direct drive forward curve blower
- Wheel diameter: 9.75"
- Maximum airflow: 800 CFM
- Noise level: 81.8 dBA @ 5 feet
- Inlet diameter: 4.53"
- Outlet diameter: 4.53"
- Voltage: 230/460 V, 3-Phase, 50/60 Hz
- Motor power: 1.5 HP
- Motor speed: 3450 RPM
- Motor type: 3-Phase explosion-proof
- Motor enclosure: Totally enclosed fan cooled (TEFC)
- Housing assembly: Carbon impregnated polypropylene (CIP)
Alternate Model Number: STORM14XT2P-CIP
Warranty Information
Motor WarrantyAll motors are covered by a one-year warranty from the date of shipment, provided by the motor manufacturer. If service is required during the warranty period, the motor must be taken to the nearest authorized motor service station. Failure to use an authorized service station may void the motor warranty. If you are unsure of an authorized service location, contact the factory for assistance. Installation, removal, re-installation costs, and any consequential damages are not covered.
Blower Housing Assembly WarrantyThe blower housing assembly is warranted to be free from defects in materials and workmanship for two (2) years from the date of original shipment. Defective units or parts reported within this period may be replaced at the manufacturer’s option when returned to the factory with transportation prepaid by the sender.
ExclusionsThe following items are not covered by this warranty:
- Normal wear from heat, abrasion, or chemical exposure
- Damage from improper installation, incorrect electrical connections, or unauthorized alterations
- Damage resulting from misuse, abuse, or abnormal operating conditions
- Lack of proper maintenance
- Transportation costs to and from the factory for warranty repairs
This warranty is limited to repair or replacement of defective parts as described above. The manufacturer is not responsible for installation, removal, or re-installation costs, nor for any consequential damages resulting from product failure or improper operation.
See full warranty on Installation, Operation & Maintenance ManualDurable Materials & Construction

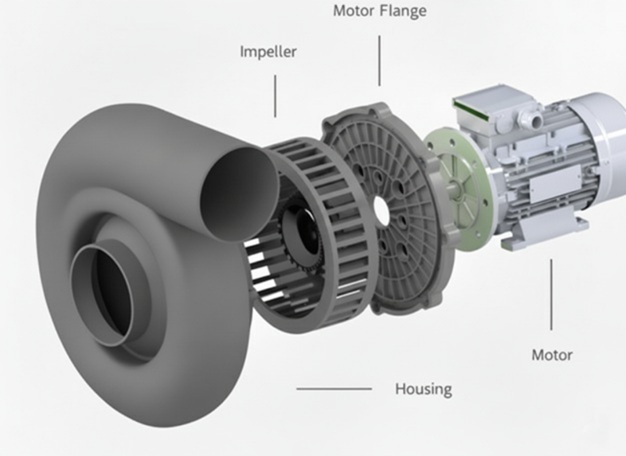

The Plastec Storm 14 Blower - XP is built for corrosive and demanding environments, using all-polypropylene construction for its housing, impeller, and airflow paths. This means there is no metal in the air stream, giving exceptional resistance to acids, salts, solvents, and other corrosive agents. To withstand UV exposure when installed outdoors or in exposed areas, the polypropylene is stabilized with HALS (Hindered Amine Light Stabilizers), which improve long-term UV resistance and durability. It utilizes a direct-drive forward-curved impeller, optimized to deliver higher static pressure, enabling it to push air through ductwork, scrubbers, or systems with resistance.
The Storm 14 Blower - XP offers a durable, corrosion-resistant solution for settings where metallic blowers would degrade or fail, while providing the static pressure performance needed for demanding ventilation systems.
Suitable Applications for Plastec Storm 14 Blower - XP
- Chemical plants and labs – Designed to exhaust acidic fumes and gases in plants, labs, and processing areas with corrosion-resistant polypropylene build.
- Scrubber systems – Fits into scrubbers and ducted exhaust lines requiring higher static pressure performance.
- Lab Fume Extraction – Removes harmful gases from hoods, cabinets, and enclosures in research and cleanroom environments.
- Water Treatment – Handles chlorine, bleach, and other treatment chemicals in wastewater facilities.
- Marine & Coastal Use – UV-stabilized polypropylene resists salt, moisture, and harsh dockside conditions.
- Battery & Storage Areas – Safely manages hydrogen and chemical off-gassing in battery, EV, and fuel cell rooms.
- Industrial Processes – Supports plating, cleaning, and surface treatment lines where corrosive chemicals are present.
