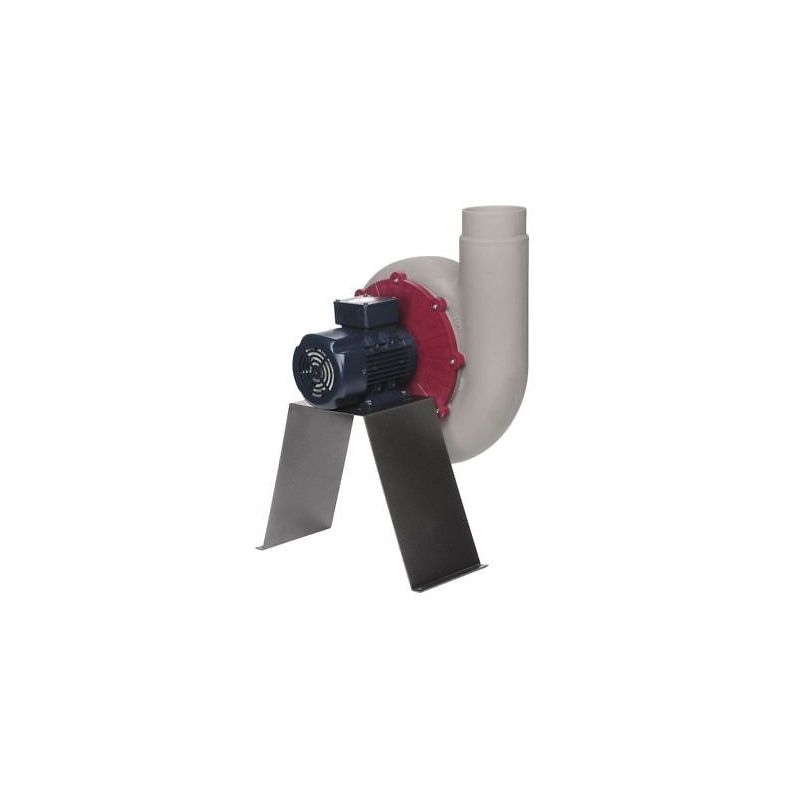

Today's Hours 8am - 11pm estPlastec Storm 18 Series Direct Drive Forward Curve Blower Corrosive Environment 10 HP 3000 CFM 3 Phase
By
Plastec
In stock
Model
S18ST2P1000
ID
228082
Was $5,841.56 Your Low Price Special Price $4,936.11
Product Feat
ures
- Direct drive - asynchronous motor
- Forward Curve Impeller design for high airflow and quiet operation
- Designed to exhaust fumes from highly corrosive environments like laboratories and chemical industries
- Built with all-polypropylene construction for maximum resistance to acids and corrosion
OVERVIEW
The Plastec STORM Series is a compact centrifugal blower designed for exhausting fumes from highly corrosive environments. Constructed from durable polypropylene, it offers excellent resistance to chemicals and long-lasting performance in demanding applications.
Engineered for systems requiring low airflow at higher static pressure. The STORM Series is ideal for use with scrubbers, ducted exhaust systems, and chemical processing applications. Its direct-drive, forward-curved design ensures reliable airflow while maintaining a compact footprint for easy installation.
Available in multiple sizes with inlet and outlet diameters of approximately 3" to 8". The STORM Series allows users to select the appropriate model based on airflow and system requirements.
Key Features
- Direct drive forward curve blower
- Maximum airflow: 3000 CFM
- Acoustic dB(a): 102 dBA
- Inlet diameter: 7.86"
- Outlet diameter: 7.86"
- Voltage: 208-230/460 V, 3-Phase, 50/60 Hz
- Motor power: 10 HP
- Motor speed: 3520 RPM
- Motor type: Three Phase standard duty
- Motor enclosure: Totally enclosed fan cooled (TEFC)
Warranty Information
Motor WarrantyAll motors are covered by a one-year warranty from the date of shipment, provided by the motor manufacturer. If service is required during the warranty period, the motor must be taken to the nearest authorized motor service station. Failure to use an authorized service station may void the motor warranty. If you are unsure of an authorized service location, contact the factory for assistance. Installation, removal, re-installation costs, and any consequential damages are not covered.
Blower Housing Assembly WarrantyThe blower housing assembly is warranted to be free from defects in materials and workmanship for two (2) years from the date of original shipment. Defective units or parts reported within this period may be replaced at the manufacturer’s option when returned to the factory with transportation prepaid by the sender.
ExclusionsThe following items are not covered by this warranty:
- Normal wear from heat, abrasion, or chemical exposure
- Damage from improper installation, incorrect electrical connections, or unauthorized alterations
- Damage resulting from misuse, abuse, or abnormal operating conditions
- Lack of proper maintenance
- Transportation costs to and from the factory for warranty repairs
This warranty is limited to repair or replacement of defective parts as described above. The manufacturer is not responsible for installation, removal, or re-installation costs, nor for any consequential damages resulting from product failure or improper operation.
See full warranty on Installation, Operation & Maintenance ManualDurable Materials & Construction
The Storm 16 blower is designed for durability and corrosion resistance, even in the most demanding environments. Its entire air pathway, from housing to impeller, is made from injection-molded polypropylene, providing complete resistance to acids, chemicals, salt spray, and corrosion. For outdoor exposure and ultraviolet light, the polypropylene is reinforced with HALS (Hindered-Amine Light Stabilizers), ensuring improved UV protection and a longer service life. The forward-curved impeller is engineered to balance airflow with the ability to overcome resistance, making it ideal for ducted systems or installations with backpressure.
As a direct drive unit, the blower eliminates the need for belts, pulleys, or additional components, reducing maintenance and delivering reliable continuous operation.
Suitable Applications for Plastec Storm 16 Forward Curve Blower
- Chemical plants and labs – Designed to exhaust acidic fumes and gases in plants, labs, and processing areas with corrosion-resistant polypropylene build.
- Scrubber systems – Fits into scrubbers and ducted exhaust lines requiring higher static pressure performance.
- Lab Fume Extraction – Removes harmful gases from hoods, cabinets, and enclosures in research and cleanroom environments.
- Water Treatment – Handles chlorine, bleach, and other treatment chemicals in wastewater facilities.
- Marine & Coastal Use – UV-stabilized polypropylene resists salt, moisture, and harsh dockside conditions.
- Battery & Storage Areas – Safely manages hydrogen and chemical off-gassing in battery, EV, and fuel cell rooms.
- Industrial Processes – Supports plating, cleaning, and surface treatment lines where corrosive chemicals are present.
