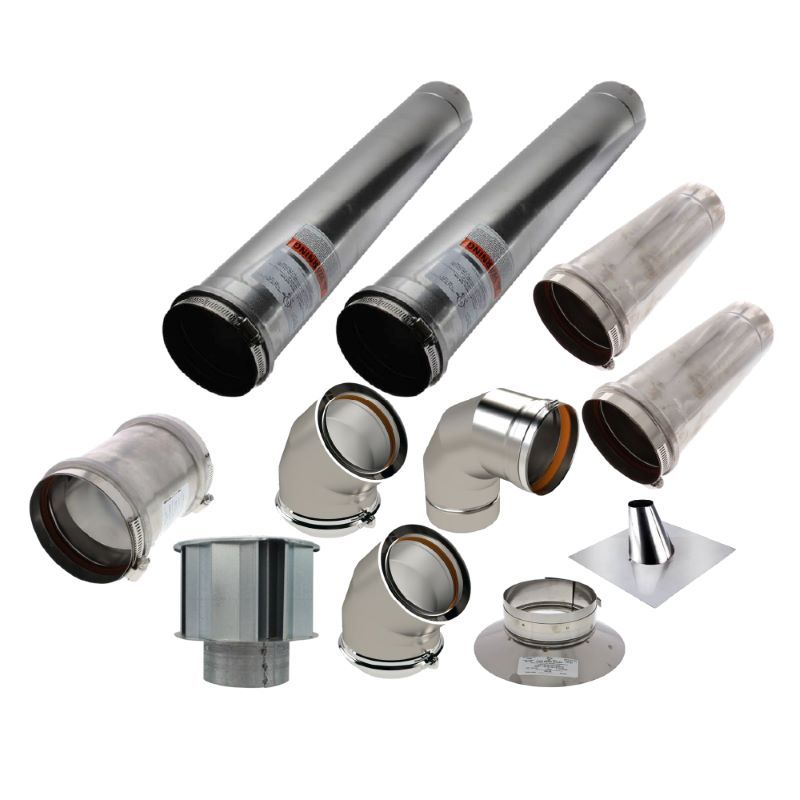

Reznor 6" Vertical Vent Kit

The 2SVSRHA06 is a Z-Vent Stainless Steel Single Wall Appliance Adapter designed for connecting appliances to a 6-inch diameter venting system. This adapter is essential for ensuring a secure and efficient connection between your appliance and the venting system, making it suitable for use with tankless water heaters, boilers, and other similar appliances.

The 2SVWT06 Z-Vent Wall Thimble (4-7 inch adjustable range) is an essential component for venting systems, designed to ensure safe and efficient passage of 6-inch diameter vent pipes through combustible walls. This versatile thimble fits wall thicknesses from 4 to 7 inches and is compatible with 6-inch Single Wall vent pipes. Constructed from durable Category III stainless steel, it is UL 1738 rated, ensuring high safety standards and longevity. The thimble features gasketed connections and fusion-welded seams for an airtight seal, eliminating the need for additional sealant and reducing installation time. Ideal for horizontal venting applications in appliances such as tankless water heaters and boilers, it maintains proper clearance from combustible materials, enhancing both safety and efficiency in residential and commercial installations.

The Z-FLEX 2SVEP0602 Single Wall Vent Pipe, featuring a diameter of 6 inches and a length of 24 inches, is expertly crafted to ensure safe and efficient venting for gas appliances. Constructed from high-quality stainless steel, this vent pipe provides exceptional durability and resistance to corrosion, even in high-temperature environments.

Features:

• Gasketed connections for enhanced sealing
• Fusion-welded pipe seams for superior strength
• No sealant required, eliminating cure time and reducing callbacks
• Airtight seams with a smooth finish for a better fit
• Metallic special gas vent with a single wall male end that can be cut to length on-site, saving both time and costs
• Available in single and double wall configurations, manufactured in diameters from 3" to 24"

This vent pipe is available in diameters from 3" to 24" and standard lengths up to 10 ft (for 3" and 4" diameters only), and it can be cut to the desired length. The female end of each Z-VENT component features a Double Fail Safe self-sealing gasket. Ensure that all components are inspected for gasket integrity during shipping. Proper positioning of gaskets is crucial to prevent flue gas leaks, which could lead to carbon monoxide poisoning. Installation should adhere to the manufacturer's instructions for optimal safety.

The Z-FLEX 2SVEP0601 Single Wall Vent Pipe, featuring a diameter of 6 inches and a length of 12 inches, is expertly crafted to ensure safe and efficient venting for gas appliances. Constructed from high-quality stainless steel, this vent pipe provides exceptional durability and resistance to corrosion, even in high-temperature environments.

Features:

• Gasketed connections for enhanced sealing
• Fusion-welded pipe seams for superior strength
• No sealant required, eliminating cure time and reducing callbacks
• Airtight seams with a smooth finish for a better fit
• Metallic special gas vent with a single wall male end that can be cut to length on-site, saving both time and costs
• Available in single and double wall configurations, manufactured in diameters from 3" to 24"

This vent pipe is available in diameters from 3" to 24" and standard lengths up to 10 ft (for 3" and 4" diameters only), and it can be cut to the desired length. The female end of each Z-VENT component features a Double Fail Safe self-sealing gasket. Ensure that all components are inspected for gasket integrity during shipping. Proper positioning of gaskets is crucial to prevent flue gas leaks, which could lead to carbon monoxide poisoning. Installation should adhere to the manufacturer's instructions for optimal safety.

The Z-Flex 2SVEE0645 is a 6" x 45° Z-Vent single wall elbow, specifically designed for venting applications associated with gas appliances. Constructed from Category III stainless steel, this elbow is optimized for horizontal venting and is compatible with natural gas and liquid propane appliances, including high-efficiency furnaces and water heaters. It is equipped with gasketed connections and fusion-welded seams, which provide an airtight fit for effective venting without requiring additional sealants.
