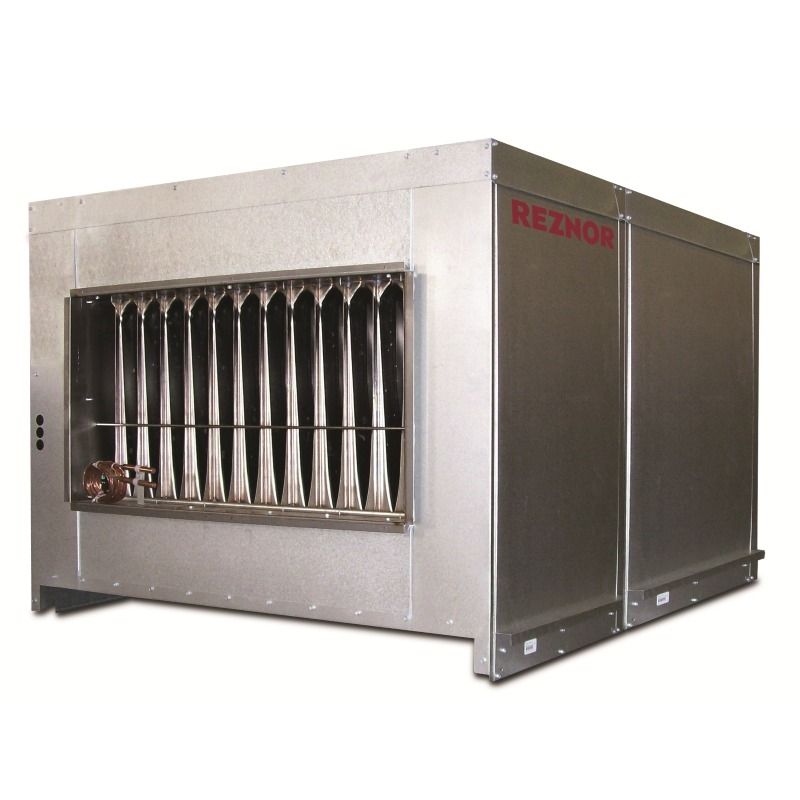

Reznor HRPD-350, 350,000 BTU Duct Furnace, Outdoor, Power-Vented

SAVE $5,044.00
Ships in 6-8 Weeks
Free Shipping
By

Reznor

In stock
Model

HRPD-350-AA1

ID

219156

Was $15,993.00 Your Low Price Special Price $10,949.00

Product Features
  • 350,000 BTU heating capacity
  • Orifices for natural gas
  • Certified for 80% thermal efficiency
  • Weatherized cabinet with interlocking joints
  • Designed to be utilized outside
  • Thermocore® aluminized steel heat exchanger

Reznor HRPD-350, 350,000 BTU Duct Furnace, Outdoor, Power-Vented

The Reznor® HRPD series consists of power-vented, rooftop dual duct furnaces engineered to serve as the primary heating element within makeup air or heating and cooling systems. Available in eight sizes with inputs ranging from 250,000 to 800,000 BTUH, these units offer 80% thermal efficiency. The design features heavy-duty rails for direct roof or slab installation, though they require a separate blower system for air delivery. Each furnace is equipped with a Thermocore® aluminized steel heat exchanger and advanced safety controls, including a spark pilot ignition.

Features

  • 350,000 BTU
  • Orifices for natural gas
  • 120 volt supply voltage
  • Power venters
  • Left side access for burners and controls
  • Fan control
More Information
Reznor HRPD-350, 350,000 BTU Duct Furnace, Outdoor, Power-Vented
FeatureSpec
SKUHRPD-350-AA1
Weight (in lbs)434
Brand/ManufacturerReznor
UPC613365497110
Furnace Efficiency / AFUE 80-85%
Heating BTU350,000 BTU
Heat Exchanger MaterialAluminized Steel
Maximum CFM6,480
Venting TypePower Vent
Efficiency80%
Electrical115v 1 Phase 60 Hz
PhaseSingle Phase
Amperage RequirementFull load Amps 3.8A (120V); Control Circuit 1.66A (24V)
Connection1/2" NG/LP Connection to Gas Valve
Main Burner MaterialAluminized Steel
Fuel TypeNatural Gas
CertificationANSI & CSA, approved for US/Canada
Height38 17/32"
Width36 7/16"
Depth52"
LocationOutdoor
Warranty1 Year Limited Warranty
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Write Your Own Review
You're reviewing:Reznor HRPD-350, 350,000 BTU Duct Furnace, Outdoor, Power-Vented
Your Rating
Customer Questions
What type of unit is the HRPD series?
The HRPD is an outdoor commercial/industrial power-vented gas-fired dual duct furnace. Each HRPD unit consists of two model RP furnaces packaged together. If you have any further questions, feel free to give us a call!
Can the HRPD be installed on combustible surfaces?
Yes. The unit is certified for installation on a combustible surface when equipped with standard heater-mounting rails. If you have any further questions, feel free to give us a call!
How is combustion air supplied?
Combustion air and flue gas openings are located on the side of the unit above the control access panel. The flue opening is positioned above the air intake to discourage recirculation of combustion products. If you have any further questions, feel free to give us a call!
Where can these units be installed?
They are designed for outdoor mounting and include a corrosion-resistant Galvalume® cabinet and a curb cap base. If you have any further questions, feel free to give us a call!
Where should the flue discharge be directed?
Power-vented furnaces should be located so that the flue discharge is not directed at fresh air inlets to prevent the recirculation of combustion products. If you have any further questions, feel free to give us a call!
