Today's Hours 8am - 11pm estReznor VZH-175 - 175,000 BTU Infrared Tube Heater - Single Stage - Outdoor / Harsh Environment - Propane - 50' Aluminized Tube Kit
Required Fields *
By
Reznor
In stock
Model
RZ1047359 / RZ03051510K / 1047140 / 1047144
ID
205701
Was $5,181.00
Your Low Price $3,285.00
Product Features
- Single stage, harsh environment, sealed burner
- 175,000 BTU infrared heating capacity
- 50' tube and reflector kit with L-bend and U-bend options
- Aluminized Steel tube improves durability and emmissivity
- Available clearance shields, side reflectors, and protective grilles
- Parabolic reflector design for increased radiant output

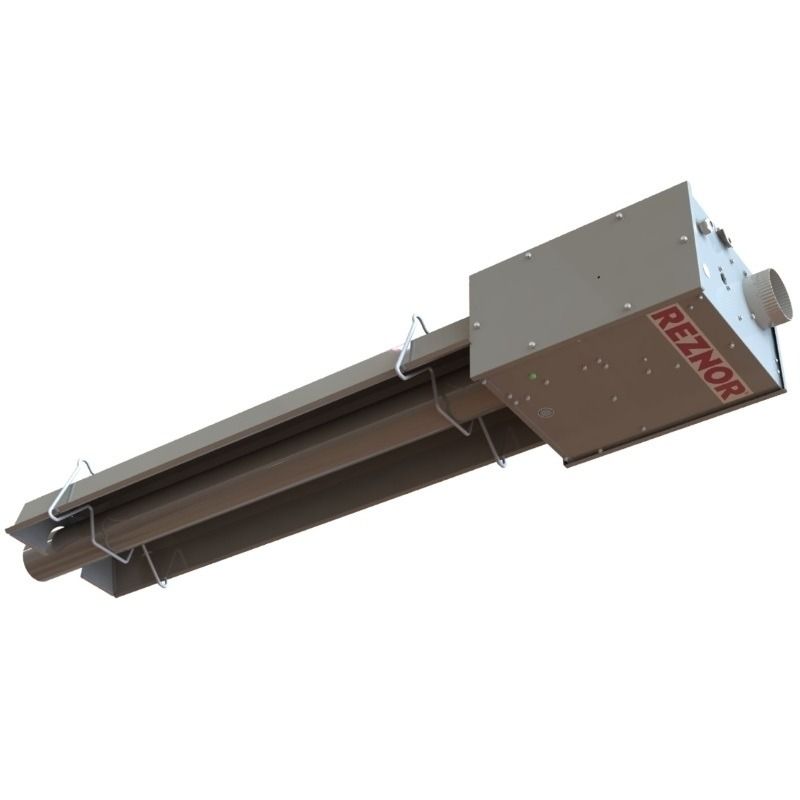

Reznor VZH-175 Infrared Tube Heater – 175,000 BTU, 50-Foot Radiant Heating System
Energy-Efficient. Low Maintenance. Professional-Grade Heating.
The Reznor VZH-175 Infrared Tube Heater is a high-performance 175,000 BTU radiant heating system engineered for indoor commercial and industrial spaces that demand efficient, even, and reliable heat. This complete configuration pairs the Reznor VZH-175 Harsh Environment burner with a 50-foot aluminized steel radiant tube assembly, delivering targeted infrared warmth that heats people, floors, and equipment directly—without wasted energy.
Designed for warehouses, service bays, loading docks, and manufacturing facilities, the VZH-175 offers quiet, draft-free operation and dependable performance backed by Reznor’s proven infrared heating technology.
Energy-Efficient Infrared Heating Performance
Unlike traditional forced-air heaters, infrared tube heaters radiate heat that is absorbed by solid objects rather than warming the air first. This results in more consistent temperatures, reduced heat loss, and improved comfort at lower thermostat settings, helping reduce overall energy consumption while maintaining effective zone heating.
Key Features & Benefits
- 175,000 BTU Input Capacity – Ideal for very large, high-clearance commercial and industrial heating zones
- 50-Foot Aluminized Steel Radiant Tube – 4-inch diameter, 16-gauge ALUMI-THERM® tubing for durability and corrosion resistance
- Harsh Environment Infrared Burner (VZH Series) – Reliable, consistent heat output with simple operation
- Aluminum Parabolic Reflectors – Focus radiant heat downward for maximum efficiency and comfort
- Positive-Pressure Burner with External Blower – Ensures stable combustion and dependable ignition
- Direct-Spark Electronic Ignition – Fully automatic, three-try ignition with 100% gas shutoff for safety
Ideal Applications
Approved for indoor commercial and industrial use, including:
- Warehouses and distribution centers
- Loading docks and shipping areas
- Vehicle service and maintenance bays
- Assembly lines and manufacturing facilities
- Exhibition halls and transportation terminals
Built for Long-Term Reliability
The Reznor VZH-175 is constructed with a stainless steel burner cabinet and premium radiant components for long service life in demanding environments. Backed by an industry-leading warranty, it provides peace of mind alongside dependable heating performance.
- 5-Year Limited Warranty on Burner
- 10-Year Limited Warranty on Radiant Tubing
50' Aluminized Tube Kit (VZ, VZT, VZH) - Reznor
Overview
This 50-foot Reznor Aluminized Tube Kit steel tube assembly designed for the Reznor VZ, VZT and VZH infrared heaters.
Features:
- 10-foot × 4-inch radiant tube sections of 16-gauge heat-treated aluminized-steel
- U-tube and L-tube sections available for multiple configurations
- Reflectors may be suspended level or angled at a 45-degree tilt
- Vertical or horizontal venting
Reznor VZH-175 Propane 175,000 BTU Burner - Single Stage - Outdoor / Harsh Environment
"
Harsh Environment Infrared Tube Heater – Model VZH
Designed with durable components and construction, Model VZH radiant heaters stand up against the most challenging environments, even winds up to 40 mph!
Model VZH Features:
- Choice of stainless-steel or aluminum parabolic reflectors
- Totally-enclosed stainless-steel burner box with separate electrical and combustion compartments
- External LED burner status indicator
- 24V thermostat connection
- Single-stage operation
- Available in natural gas or LPG propane
Reznor® Infrared Heater Features:
- Straight, U-tube or L-tube options
- Positive-pressure burner design
- Diagnostic capabilities onboard
- Fully-automatic, three-try, 100% shut-off, direct-spark electronic ignition control
- Flexible gas line included with burner
- Industry-leading 5-year warranty
- CSA design certified – ANSI Z83.20/CSA 2.34, 2.17, 2.20
Reznor® Infrared Heating Advantages:
- Even, comfortable temperatures - heated infrared rays are radiated until absorbed by objects. Rays do not warm the air; they warm the air surrounding the heated objects due to the increase in temperature of those objects.
- Energy efficient – reduce energy bills up to 50% and lower thermostats due to infrared heat absorption and radiation of objects
- Warm, dry floors - infrared rays are absorbed by the floor keeping them warm, dry and slip-free.
- Clean, quiet, draft-free operation - does not require fans or blowers
- Easy to install, operate and maintain – provides years of trouble-free operation
- Environmentally-friendly – improves overall energy performance and contributes to achieving compliance with the LEED green building rating system
