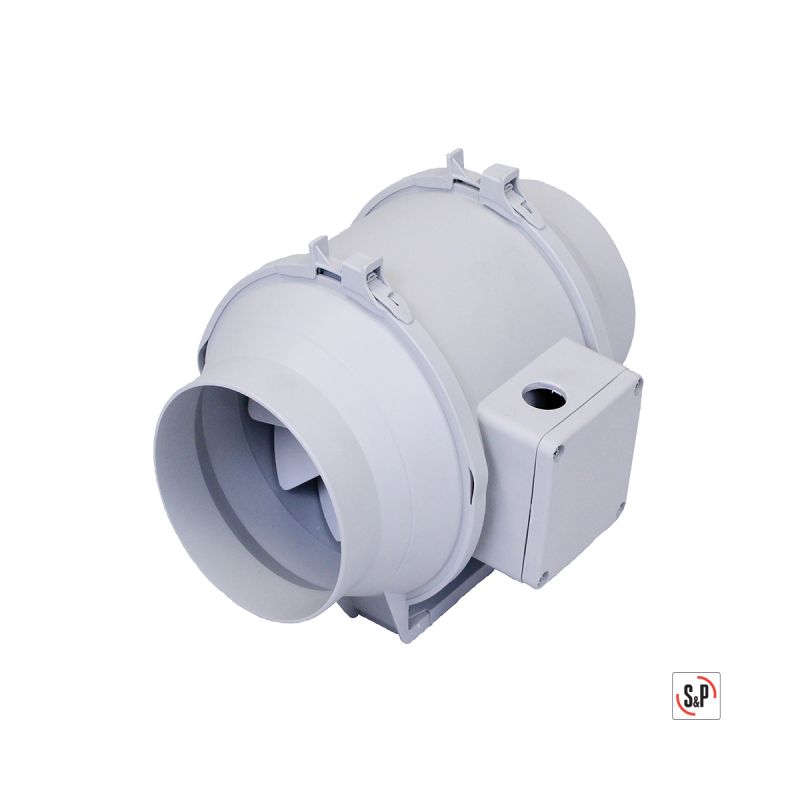

S&P 5 In TD Mixvent Inline Exhaust Fan - TD-125

By

S&P

Out of stock
Model

TD-125

ID

29742

Features
  • Exhaust air up to 2,630 CFM with static pressure capabilities to 1" w.g.
  • Mixed flow impeller for excellent airflow to pressure performance ratio
  • Ideal for applications where space is limited
  • AMCA Seal for Air Performance

The TD-MIXVENT series are in-line duct fans specially designed to maximize the airflow performance with minimal noise levels in a small, compact housing. This makes the TD-MIXVENT series the ultimate solution for small to medium sized ventilation installations which require a high airflow to pressure ratio and occupy minimum space (e.g., false ceiling voids, cabinets, and many other limited space environments).

More Information
S&P 5 In TD Mixvent Inline Exhaust Fan - TD-125
FeatureSpec
SKUTD-125
Weight (in lbs)6
Brand/ManufacturerS&P
UPC0812482010305
Maximum CFM197
Motor RPM2146
Watt38
Energy StarYes
Electrical120/240 V, 1 Phase
CertificationHVI
Duct Diameter5"
Height10 3/16"
Width7 3/8"
Warranty5-year fan housing and motor warranty
