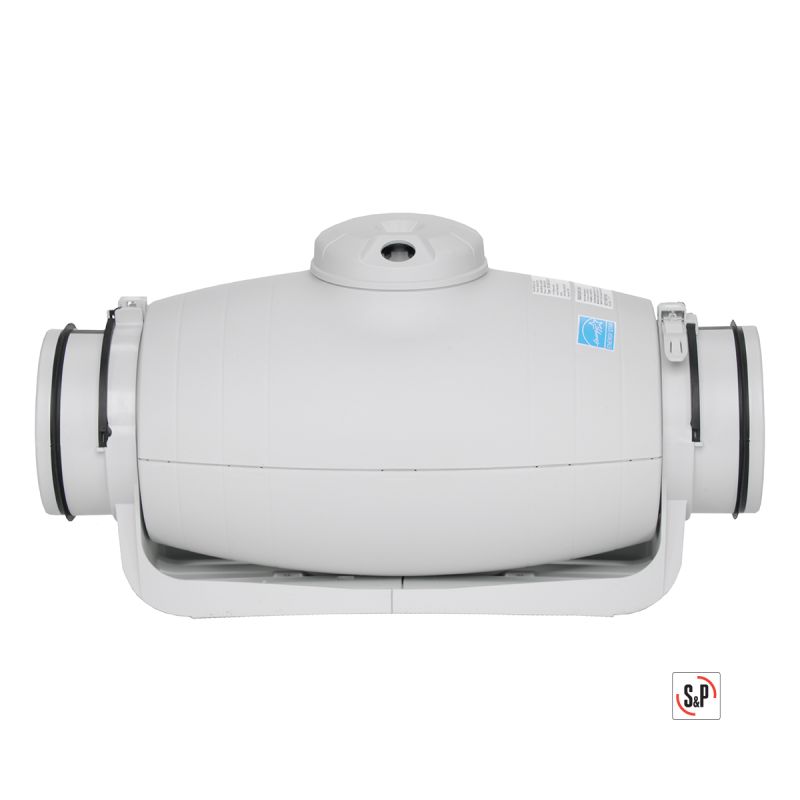

S&P 5 In TD Silent Mixvent Inline Exhaust Fan - TD-125XS

By

S&P

Out of stock
Model

TD-125XS

ID

29744

Features
  • Exhaust air up to 530 CFM with static pressure capabilities to 1" w.g.
  • Mixed flow impeller for excellent airflow to pressure performance ratio
  • Direct connection, single-speed motor
  • Ideal for applications where space is limited

The TD-SILENT fans are extremely quiet, low profile "Mixed-flow" fans manufactured in tough reinforced plastic material, a single-speed controllable 115V 60Hz motor, and an external connection box. Sound waves are directed through the perforated inner skin and absorbed by a layer of sound-absorbent insulation. These fans are fitted with rubber gaskets on the inlet and outlet to facilitate installation, absorb vibrations, and provide a virtually air-tight seal.

More Information
S&P 5 In TD Silent Mixvent Inline Exhaust Fan - TD-125XS
FeatureSpec
SKUTD-125XS
Weight (in lbs)14
Brand/ManufacturerS&P
UPC0817418017793
Maximum CFM203
Motor RPM2500
Watt36
Energy StarYes
Electrical120/240 V, 1 Phase
CertificationcULus
Duct Diameter5"
Length26"
Height13"
Width11"
Warranty5-year fan housing and motor warranty
