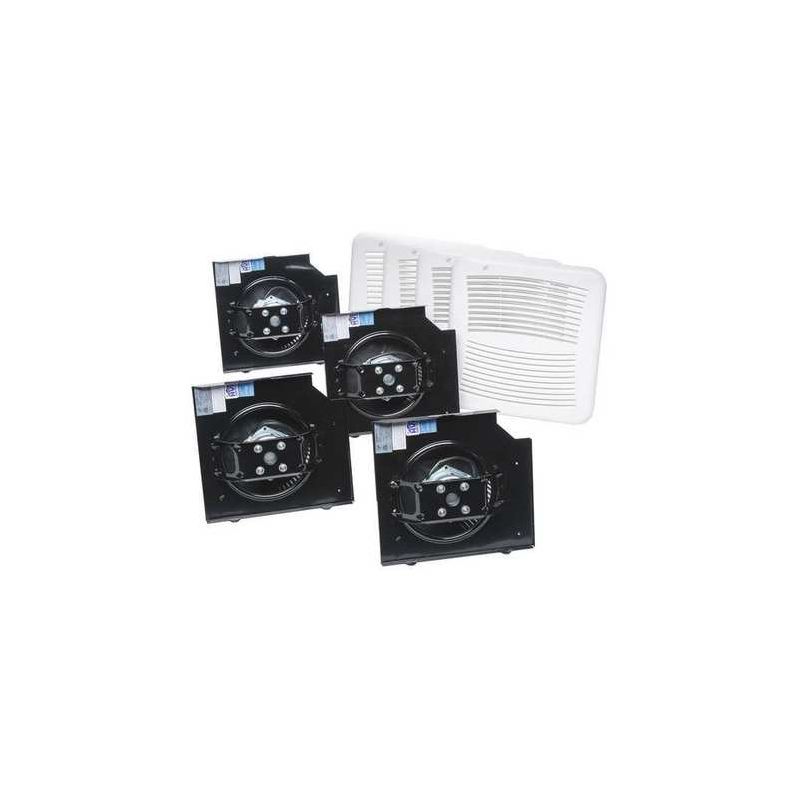

S&P PC110X Motor And Grille Contractor 4 Pack - PC110XFP

High-Performance Bathroom Exhaust Fan for Quiet, Efficient Ventilation

The S&P PC110 provides powerful and efficient ventilation for bathrooms and residential spaces, delivering up to 110 CFM of airflow at 0.1" static pressure while operating at just 0.6 sones. Its totally enclosed condenser motor is rated for 30,000 hours of continuous operation, providing dependable performance and long service life.

Designed for quiet and efficient ventilation, the PC110 features a robust design, an attractive and sturdy grille, and a high-efficiency motor. The PC110 is also ENERGY STAR qualified, making it an efficient choice for bathroom and whole-house ventilation applications.

The PC110XFP contractor 4-pack includes the motor plate, motor, wheel, and grille, providing a convenient solution for multi-unit installations. S&P's Premium CHOICE design also allows compatible plug-and-play accessories, including lighted or motion-sensing grilles, humidity sensors, and speed controls, to be added separately.

S&P PC110 Series Features & Benefits

• 110 CFM Airflow: Delivers 110 CFM at 0.1" static pressure and 93 CFM at 0.25" static pressure for effective ventilation.
• Quiet Operation: Operates at just 0.6 sones for low-noise ventilation.
• Long-Life Motor: Features a totally enclosed condenser motor rated for 30,000 hours of continuous operation.
• Efficient Performance: Uses 36W and is ENERGY STAR qualified for energy-efficient operation.
• Sturdy Grille: Includes an attractive, sturdy grille designed for a clean finished appearance.
• Contractor 4-Pack: Includes the motor plate, motor, wheel, and grille for convenient multi-unit installation.
• Plug-and-Play Options: Compatible with optional lighted and motion-sensing grilles, humidity sensors, and speed controls.

What's Included

Each S&P PC110XFP Motor & Grille Contractor 4-Pack includes the motor plate, motor, wheel, and grille for each fan. The fan housing and hanger bars are part of the separate Housing Kit and are not included with the Motor & Grille Pack.

Safety Features

• Electrical Safety – Installation and electrical wiring must be performed by qualified personnel in accordance with applicable codes and standards. Power must be switched off and the service disconnect locked before servicing or cleaning.
• Proper Installation – Designed for ceiling installation up to a 12/12 pitch (45°). The product must not be mounted in a wall.
• Backdraft Protection – Built-in backdraft damper helps prevent unwanted airflow through the exhaust system.
• Outdoor Venting – Ducted installations must always be vented to the outdoors. Ductwork connections should be secured and sealed to provide an airtight connection.
• Safe Application – For general ventilating use only. Do not use the fan to exhaust hazardous or explosive materials or vapors, and do not install it in a cooking area.
• GFCI Protection – Acceptable for use over a tub or shower when connected to a GFCI-protected branch circuit for ceiling installations.

Warranty Information

S&P provides a 5-year limited warranty for the PC110 series, covering defects in materials and workmanship under normal use and service.

Warranty coverage is subject to S&P's terms and conditions. Improper installation, misuse, alterations, or use outside the manufacturer's intended application may affect warranty coverage. See the S&P Limited Warranty for complete terms and conditions.
