SchwankAir AC-KA36-23 36" Electric Air Curtain - 230 Volts

High-Efficiency Air Curtain Designed to Help Minimize Heat Loss and Keep Unwanted Air Out

The Schwank Select10 Series Air Curtain is designed to create an effective air barrier across open doorways, helping shield the opening and minimize the exchange of indoor and outdoor air. Its high-efficiency EC motor delivers controlled airflow across the doorway to help minimize heat loss. The Select10 Series is available in 36", 60", and 72" widths to accommodate a variety of commercial entrance applications.

These ambient, unheated air curtains are designed for indoor surface-mount installation at heights up to 10 feet. Air is drawn in through the top of the unit and blown downward across the doorway to help shield the opening. The adjustable outlet grille allows the direction of the airflow to be adjusted according to the conditions at the doorway. For the optimum air curtain effect, the unit should extend across the full width of the door opening.

The Select10 Series features an integrated control system and can be remotely controlled for convenient operation. With the door contact function, the fan runs at low speed when the door is closed and switches to high speed when the door opens. The high-speed setting can be adjusted using the remote control or the control panel on the unit.

Designed for quiet operation in commercial environments, the Select10 Series features an energy-efficient EC motor, a front grille designed to reduce vibration and sound, and a top air intake designed to help reduce noise. The front cover provides access for maintenance, while mounting brackets are included with the unit. The ambient AC-KA models operate at 208V, single-phase, 60Hz and are also approved for 230V, single-phase, 60Hz operation. These models are rated IP21.

Schwank Select10 Series Air Curtain Features & Benefits

• Effective Air Barrier: Creates a downward airflow across open doorways to help shield the opening and minimize heat loss.
• High-Efficiency EC Motor: Uses an energy-efficient EC motor for efficient and controlled air curtain operation.
• Quiet Operation: Features a front grille designed to reduce vibration and sound, along with a top air intake designed to help reduce noise.
• Automatic Door Operation: The door contact function allows the fan to run at low speed when the door is closed and switch to high speed when the door opens.

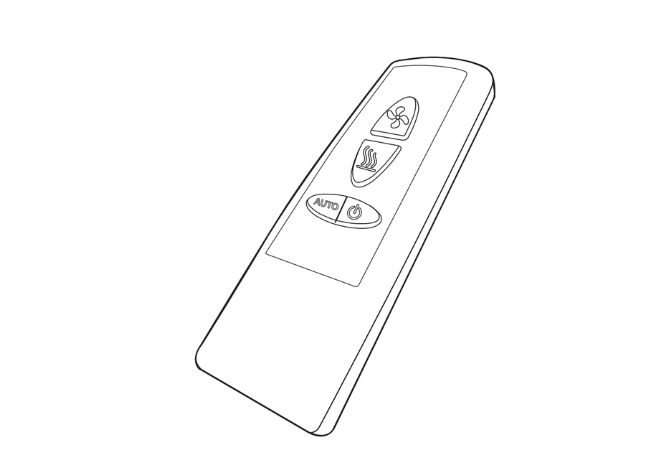

• Remote Control: Can be remotely controlled for on/off operation and fan speed adjustment.
• Integrated Controls: Built-in controls provide convenient operation and adjustment of the air curtain.
• Adjustable Airflow Direction: The outlet grille can be adjusted to direct the airflow according to the conditions at the doorway.
• Mounting Height: Designed for indoor surface-mount installation up to 10 feet high.
• Ambient Operation: The AC-KA models provide unheated airflow without electric heat.
• Multiple Widths: Available in 36", 60", and 72" models.
• Full Doorway Coverage: For the optimum air curtain effect, the unit should extend across the full width of the door opening.

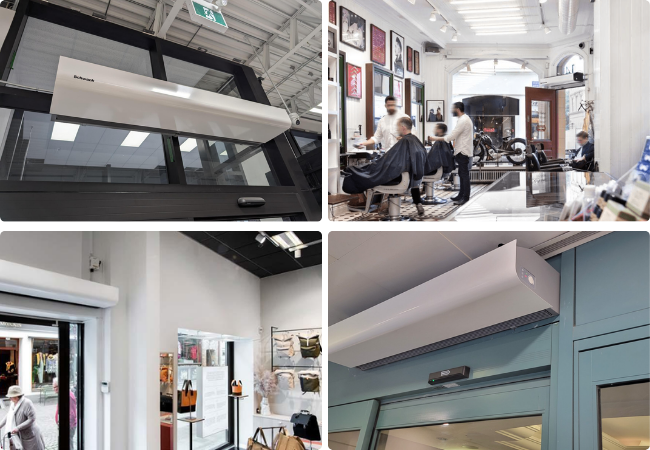

• Commercial Applications: Designed for commercial entranceways, including retail shops, hotels and resorts, cafés, restaurants, malls, offices, and hospital buildings.
• Maintenance Access: The front cover can be removed to provide access for servicing and maintenance.

What's Included

Each Schwank Select10 Series Air Curtain package includes the air curtain unit, wall-mounting brackets, and a Torx bit for installation. The unit also features a pre-installed integrated control system with remote-control capability and a built-in control board with a 4.9-foot power cord for ambient models.

Safety Features

• Qualified Installation: Installation and maintenance should be performed by qualified personnel in accordance with applicable electrical codes and local regulations.
• Proper Installation: Install the unit horizontally with the supply air grille facing downward and as close to the door as possible.
• Installation Height: Recommended for installation heights up to 10 feet.
• Electrical Safety: The power supply voltage must match the unit's data label, and the unit must be properly fused according to the manufacturer's requirements.
• Power-Off Servicing: Disconnect the power supply before performing service, repairs, or maintenance.
• Motor Protection: Built-in thermal protection helps protect the motor from excessive temperature.
• Routine Cleaning: Clean the inlet and exhaust grilles and impeller at least twice a year, and avoid strong alkaline or acidic cleaning agents.
• Clear Airflow: Keep the air intake and exhaust grilles free from obstructions and do not cover the unit.

Warranty Information

Schwank provides a 5-year limited warranty against defects in materials and workmanship from the date of installation. The warranty is subject to the terms and conditions specified by the manufacturer.

For complete warranty details, terms, conditions, and limitations, please refer to the Schwank Warranty Information.
