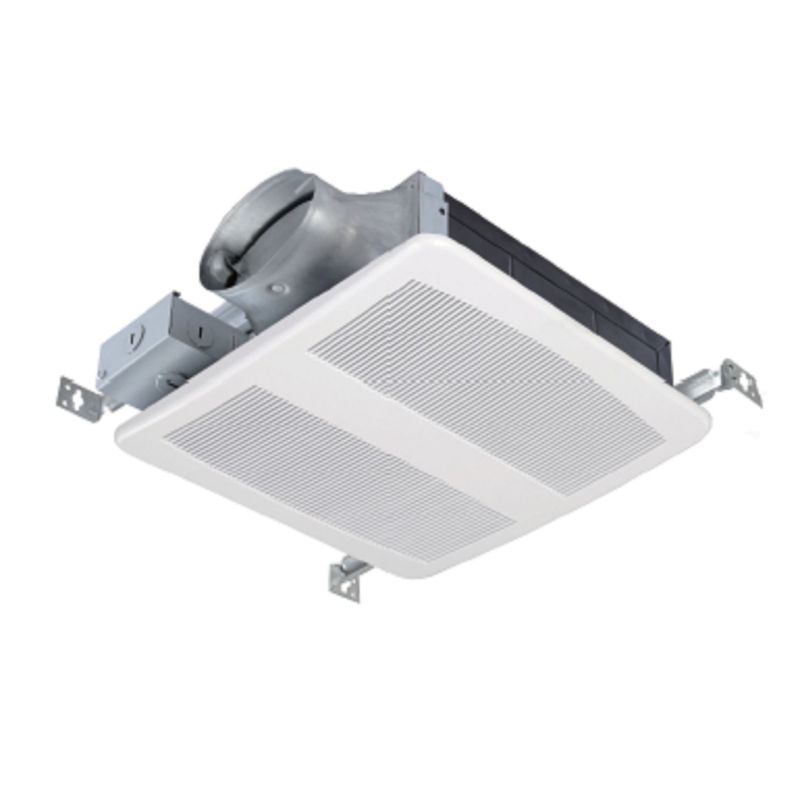

SlimLine 50CFM AC Ceiling/Wall Exhauster - SES50

Ventilating fan should be ceiling or wall mounted and capable of exhausting air quietly and efficiently. The SES series is HVI and ENERGY STAR certified. It comes with a capacitor start motor which is known for its high efficiency and long lasting reliability. It holds an ETL evaluation and conforms to UL and cUL safety standards. This fan has a unique plug and play concept that allows you to to add accessories such as motion sensor, humidistat, light, or even speed/controller without changing the fan.

Housing

• Rust proof paint housing
• Detachable 4 inch round compatible collar which includes a light weight built in back draft damper.
• Double hanger bar mounting brackets that are adjustable up to 24 inch span allows for ideal positioning.

Motor/Blower

• Plug in permanently lubricated motor- Engineered for continuous operation.
• The motor is energy efficient and surpasses the minimum ENERGY STAR requirements for continuous duty operation.
• Power rating should be 120 volts and 60 Hz
• Fan shall be ETL and cETL listed for tub/shower enclosure when used with a GFCI branch circuit.
• Motor comes with a built in overload disconnect for safety and longer motor life.
• Our SES series operates at lower RPM’s to give you quieter operation.

Grille

• The Premium grille is low profile that has elegance and still able to maintain its simplicity.
• Made of a rugged polymeric resin that’s known for its long life durability.
• Comes with torsion spring clips that helps mount grille evenly.

Typical specification

• Ventilation fan shall be ceiling or wall mount optional.
• It shall be ducted to a roof vent or wall cap using 4 inch round pipe.
• Blower assembly shall be removable, have a centrifugal type blower wheel and a permanently lubricated motor designed for continuous operation.
• Air and sound delivery shall meet the HVI certified ratings as per the fan curves attached.
• Ventilators come with permanent split capacitor motor which improves efficiency this is why it has qualified to carry the ENERGY STAR label.
