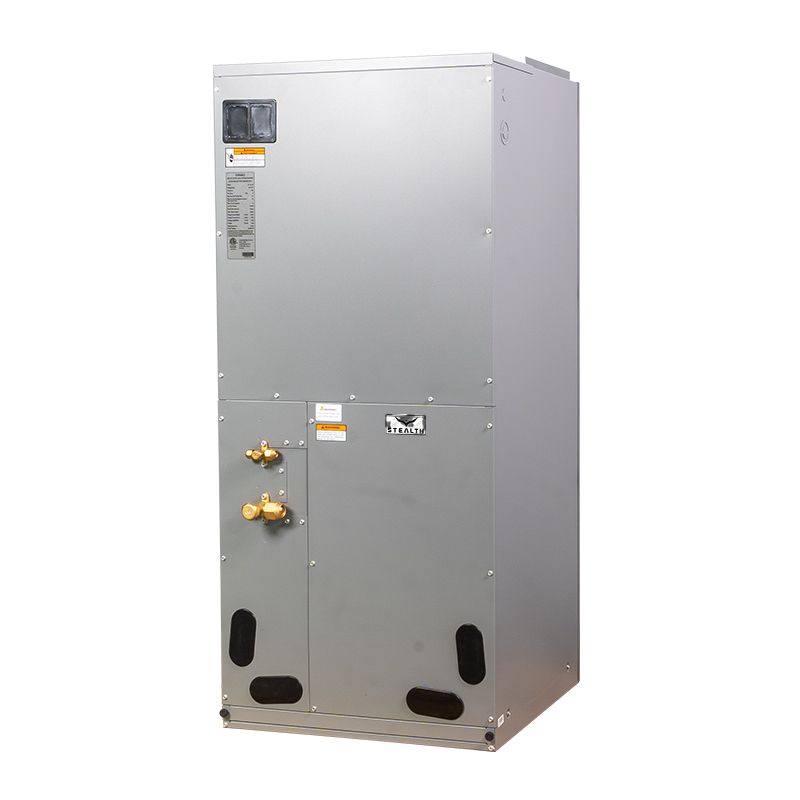

2 Ton Stealth Comfort Central Air Handler

SAVE $969.00
2 Ton Stealth Comfort Central Air Handler
2 Ton Stealth Comfort Central Air Handler
In Stock - 10 Ready to Ship
Free Shipping
By

Stealth

In stock
Model

SC-24-AH

ID

122480

Was $1,892.00 Your Low Price Special Price $923.00

Product Features
  • R-410A Replacement Compatible — Designed for systems using R-410A refrigerant, making it a practical replacement option for existing R-410A applications.
  • 2-Ton Capacity — Provides up to 24,000 BTU of cooling capacity, ideal for appropriately sized homes and spaces.
  • Quiet Operation — Features 8 fan speeds for customizable airflow and quieter performance across different operating conditions.
  • Works With Popular Thermostats — Compatible with standard 24V thermostats, including popular options such as Nest and Ecobee.
  • Long-Lasting Design — Blue-fin coating on the indoor coil helps protect against corrosion and extends the life of the unit.
  • Backup Electric Heat Available — Optional 5 kW or 10 kW electric heat kits provide additional heating capability when needed.

The Stealth central ducted air handlers provide quiet power to move conditioned air throughout your home with maximum efficiency.

Quick Facts

  • Use any 24v thermostat including popular Nest or Ecobee
  • 8 fan speeds mean quiet performance under all working conditions
  • Indoor unit has blue-fin coating for extended life
  • Backup Electric heat options available
  • Uses standard 3/8” x ¾” line set

Please note: This air handler must be connected to an outdoor condenser in order to function.

More Information
2 Ton Stealth Comfort Central Air Handler
FeatureSpec
SKUSC-24-AH
Refrigerant Charge25'
Weight (in lbs)127.43
Brand/ManufacturerStealth
Cooling BTU22000 BTU
Heating BTU27000 BTU
Maximum CFM882
Decibel Level (dBA)43
Electric HeatHeat Pump
Electric Backup Heat Capabilities (Optional)5 Kilowatts, 10 Kilowatts
RefrigerantR410A
HSPF11
SEER1 (Efficiency)18-20
EER12.5
Liquid Line3/8"
Suction Line3/4"
Electrical208/230V 1 Phase 60 Hz
Max Breaker Size15
Min. Breaker Size4
Tonnage2 Ton
System Tonnage2 Ton
BTU/Tonnage24,000 BTU/2 Ton
Mini Split TypeCentral Zoned
Zone CompatibilitySingle Zone
Height48"
Width21.02"
Depth21.02"
Warranty14 year compressor, 5 year parts with online registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
