Stealth DIYCOOL Design Your Own 6 Zone Heat Pump System R454B
Required Fields *
By
Stealth
In stock
Model
Stealth DIYCOOL 6 Zone BYO R454B
ID
232019
Your Low Price $3,171.99
LOWER PRICE AVAILABLE
Add to Cart for Today's Special Price
Pricing shown instantly in cart. No checkout required.
Â
- Build Your Own Stealth System
- Heating & Cooling
- Ductless Solution
- Six Zone/Room Compatible
- Choose 6 Air Handlers
- 48k BTU Condenser
- days
- Hours
- Minutes
- Seconds
Stealth DIYCOOL Build Your Own Six Zone Mini Split Systems
Stealth DIYCOOL Build Your Own Six Zone Mini Split Systems are cutting-edge ductless heat pump solutions that provide efficient heating and cooling for six separate zones in your home. With high SEER performance and advanced inverter technology, these systems help keep energy costs down while delivering year-round comfort. Each zone operates independently with its own indoor unit and controller for personalized comfort.
Indoor Units
Wall-Mounted Air Handlers
- Sleek, space-saving design with quiet operation
- Auto-restart, sleep mode, and programmable settings
- Precise temperature control for targeted comfort
Outdoor Units
The Stealth multi-zone condenser uses an inverter-driven compressor to heat or cool refrigerant and send it to each indoor unit through small line sets. Every room or zone operates independently with its own wireless remote or via smart control options.
- Inverter technology for efficient, stable performance
- Supports multiple indoor unit styles and capacities
- Independent zone control: set different temperatures in each room
- Smart control options available; compatible with voice assistants like Alexa & Google Assistant
Why Choose Stealth DIYCOOL Build Your Own Five Zone?
- Personalized comfort for six separate spaces
- Energy-efficient operation to help reduce utility costs
- Flexible indoor unit options: wall-mounted, floor-mounted, cassette, or concealed ducted
- User-friendly installation features and robust reliability

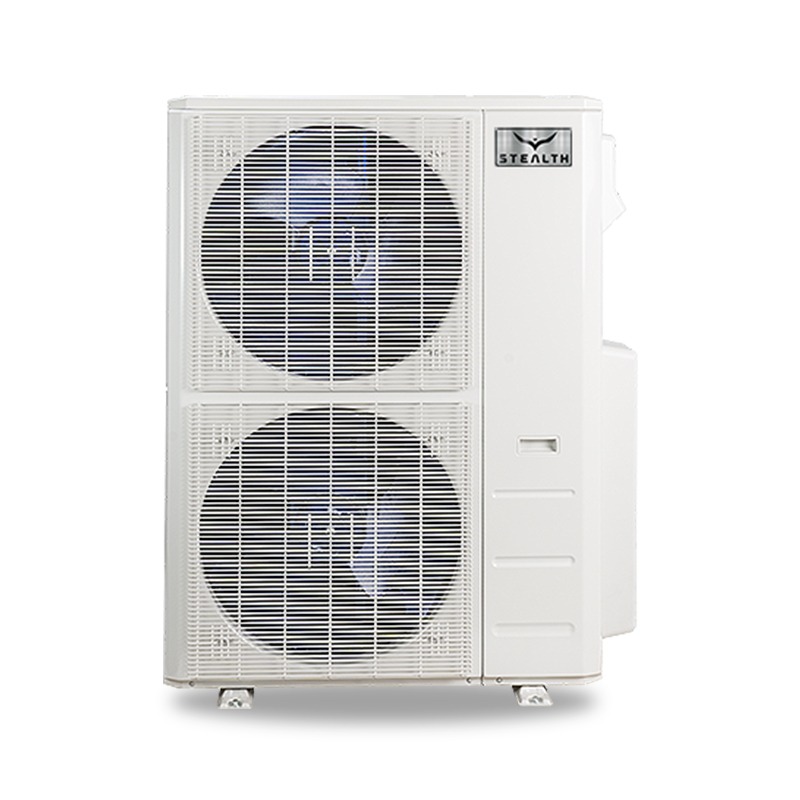

| 48,000 BTU Stealth DIYCOOL Multi Zone Mini Split Heat Pump Condenser - R454B | 230V | |
|---|---|
| Feature | Spec |
| SKU | EZ-48Z-M5B |
| Refrigerant Charge | 6.14 lbs (Pre-Charged for 25ft Line Set) |
| Weight (in lbs) | 223.77 |
| AHRI Certificate Number | 216980946 |
| Brand/Manufacturer | Stealth |
| Replaces | EZ-48Z-M5 |
| Cooling BTU | 43,000 BTU |
| Heating BTU | 48,000 BTU |
| Decibel Level (dBA) | 62 dBA |
| Refrigerant | R454B |
| HSPF2 | 10 |
| SEER2 (Efficiency) | 21.8 |
| EER2 | 12 |
| Liquid Line | 1/4" (6) |
| Suction Line | 3/8" (4); 1/2" (2) |
| Electrical | 208/230V | 1 Phase | 60Hz |
| Max Breaker Size | 45 Amps |
| Min. Breaker Size | 40 Amps |
| BTU/Tonnage | 48,000 BTU/4 Ton |
| Min/Max Outdoor Temp for Heating | -13°F - 75°F |
| Min/Max Outdoor Temp for Cooling | -13°F - 122°F |
| Zone Compatibility | Multi Zone |
| Height | 52.48" |
| Width | 37.48" |
| Depth | 16.34" |
| Warranty | 7 Year Compressor / 5 Years Parts Warranty with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| 6,000 BTU Stealth DIYCOOL Multi-Zone Wall Mount Mini Split Air Handler - R454B | 230V | |
| Feature | Spec |
| SKU | EZ-06W-MB |
| Weight (in lbs) | 24.47 |
| Brand/Manufacturer | Stealth |
| Controller | Included |
| Cooling BTU | 6,000 BTU |
| Heating BTU | 6,000 BTU |
| Maximum CFM | 391.4 Turbo / 294.3 Hi / 211.9 Med / 156.0 Lo CFM (Airflow) |
| Decibel Level (dBA) | 22.5 - 45.5 dBA |
| Refrigerant | R454B |
| Liquid Line | 1/4" |
| Suction Line | 3/8" |
| Electrical | 208/230V | 1 Phase | 60Hz |
| BTU/Tonnage | 6,000 BTU/0.5 Ton |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Single Zone |
| Height | 11.69" |
| Width | 31.57" |
| Depth | 7.44" |
| Warranty | 7 Year Compressor / 5 Years Parts Warranty with Online Registration |
| Resources | You will need Adobe‚ Acrobat‚ Reader to view PDF documents |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| 18,000 BTU Stealth DIYCOOL Multi‑Zone Wall Mount Mini Split Air Handler – R454B | 230V | |
| Feature | Spec |
| SKU | EZ-18W-MB |
| Weight (in lbs) | 35.49 |
| Brand/Manufacturer | Stealth |
| UPC | 704674308195 |
| Controller | Included |
| Cooling BTU | 18,000 BTU |
| Heating BTU | 18,000 BTU |
| Maximum CFM | 671.0 Turbo / 470.9 Hi / 382.6 Med / 323.7 Lo CFM (Airflow) |
| Decibel Level (dBA) | 19.0 - 54.5 dBA |
| Refrigerant | R454B |
| Liquid Line | 1/4" |
| Suction Line | 1/2" |
| Electrical | 208/230V | 1 Phase | 60Hz |
| BTU/Tonnage | 18,000 BTU/1.5 Ton |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Single Zone |
| Height | 13.19" |
| Width | 42.52" |
| Depth | 8.90" |
| Warranty | 7 Year Compressor / 5 Years Parts Warranty with Online Registration |
| Resources |
|
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| 24,000 BTU Stealth DIYCOOL Multi‑Zone Wall Mount Mini Split Air Handler – R454B | 230V | |
| Feature | Spec |
| SKU | EZ-24W-MB |
| Weight (in lbs) | 35.93 |
| Brand/Manufacturer | Stealth |
| UPC | 704674397366 |
| Controller | Included |
| Cooling BTU | 24,000 BTU |
| Heating BTU | 24,000 BTU |
| Maximum CFM | 759.3 Turbo / 588.6 Hi / 470.9 Med / 323.7 Lo CFM (Airflow) |
| Decibel Level (dBA) | 20 - 54 dBA |
| Refrigerant | R454B |
| Liquid Line | 3/8" |
| Suction Line | 5/8" |
| Electrical | 208/230V | 1 Phase | 60Hz |
| BTU/Tonnage | 24,000 BTU/2 Ton |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Single Zone |
| Height | 13.19" |
| Width | 42.52" |
| Depth | 8.90" |
| Warranty | 7 Year Compressor / 5 Years Parts Warranty with Online Registration |
| Resources | You will need Adobe‚ Acrobat‚ Reader to view PDF documents |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| E Lite Equipment Pad 18" x 38" x 3" | |
| Feature | Spec |
| SKU | EL1838-3 |
| Weight (in lbs) | 16 |
| Brand/Manufacturer | Online Supply |
| UPC | na |
| Height | 3" |
| Width | 18" |
| Depth | 38" |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| E Lite Equipment Pad and Risers Kit 18" x 38" x 3" | |
| Feature | Spec |
| SKU | 87762 / EL1838-3 |
| Weight (in lbs) | 25 |
| Brand/Manufacturer | Online Supply |
| UPC | na |
| Height | 3" |
| Width | 18" |
| Depth | 38" |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| 30" Wall Mount Bracket for Mini Split Systems | |
| Feature | Spec |
| SKU | ACB-30 |
| Weight (in lbs) | 9.2 |
| Brand/Manufacturer | Online Supply |
| Length | 30" |
| Height | 16" |
| Width | 2" |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Condenser Risers - 4" x 18" - 2 Pack | |
| Feature | Spec |
| SKU | 87762 |
| Weight (in lbs) | 5 |
| Brand/Manufacturer | Online Supply |
| 6,000 BTU Stealth DIYCOOL Multi-Zone Wall Mount Mini Split Air Handler - R454B | 230V | |
| Feature | Spec |
| SKU | EZ-06W-MB |
| Weight (in lbs) | 24.47 |
| Brand/Manufacturer | Stealth |
| Controller | Included |
| Cooling BTU | 6,000 BTU |
| Heating BTU | 6,000 BTU |
| Maximum CFM | 391.4 Turbo / 294.3 Hi / 211.9 Med / 156.0 Lo CFM (Airflow) |
| Decibel Level (dBA) | 22.5 - 45.5 dBA |
| Refrigerant | R454B |
| Liquid Line | 1/4" |
| Suction Line | 3/8" |
| Electrical | 208/230V | 1 Phase | 60Hz |
| BTU/Tonnage | 6,000 BTU/0.5 Ton |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Single Zone |
| Height | 11.69" |
| Width | 31.57" |
| Depth | 7.44" |
| Warranty | 7 Year Compressor / 5 Years Parts Warranty with Online Registration |
| Resources | You will need Adobe‚ Acrobat‚ Reader to view PDF documents |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| 9,000 BTU Stealth DIYCOOL Multi-Zone Wall Mount Mini Split Air Handler - R454B | 230V | |
| Feature | Spec |
| SKU | EZ-09W-MB |
| Weight (in lbs) | 24.47 |
| Brand/Manufacturer | Stealth |
| Controller | Included |
| Cooling BTU | 9,000 BTU |
| Heating BTU | 9,000 BTU |
| Maximum CFM | 391.4 Turbo / 294.3 Hi / 211.9 Med / 156.0 Lo CFM (Airflow) |
| Decibel Level (dBA) | 18.0 - 45.5 dBA |
| Refrigerant | R454B |
| Liquid Line | 1/4" |
| Suction Line | 3/8" |
| Electrical | 208/230V | 1 Phase | 60Hz |
| BTU/Tonnage | 9,000 BTU/0.75 Ton |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Single Zone |
| Height | 11.69" |
| Width | 31.57" |
| Depth | 7.44" |
| Warranty | 7 Year Compressor / 5 Years Parts Warranty with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| 6,000 BTU Stealth DIYCOOL Multi-Zone Wall Mount Mini Split Air Handler - R454B | 230V | |
| Feature | Spec |
| SKU | EZ-06W-MB |
| Weight (in lbs) | 24.47 |
| Brand/Manufacturer | Stealth |
| Controller | Included |
| Cooling BTU | 6,000 BTU |
| Heating BTU | 6,000 BTU |
| Maximum CFM | 391.4 Turbo / 294.3 Hi / 211.9 Med / 156.0 Lo CFM (Airflow) |
| Decibel Level (dBA) | 22.5 - 45.5 dBA |
| Refrigerant | R454B |
| Liquid Line | 1/4" |
| Suction Line | 3/8" |
| Electrical | 208/230V | 1 Phase | 60Hz |
| BTU/Tonnage | 6,000 BTU/0.5 Ton |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Single Zone |
| Height | 11.69" |
| Width | 31.57" |
| Depth | 7.44" |
| Warranty | 7 Year Compressor / 5 Years Parts Warranty with Online Registration |
| Resources | You will need Adobe‚ Acrobat‚ Reader to view PDF documents |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| 6,000 BTU Stealth DIYCOOL Multi-Zone Wall Mount Mini Split Air Handler - R454B | 230V | |
| Feature | Spec |
| SKU | EZ-06W-MB |
| Weight (in lbs) | 24.47 |
| Brand/Manufacturer | Stealth |
| Controller | Included |
| Cooling BTU | 6,000 BTU |
| Heating BTU | 6,000 BTU |
| Maximum CFM | 391.4 Turbo / 294.3 Hi / 211.9 Med / 156.0 Lo CFM (Airflow) |
| Decibel Level (dBA) | 22.5 - 45.5 dBA |
| Refrigerant | R454B |
| Liquid Line | 1/4" |
| Suction Line | 3/8" |
| Electrical | 208/230V | 1 Phase | 60Hz |
| BTU/Tonnage | 6,000 BTU/0.5 Ton |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Single Zone |
| Height | 11.69" |
| Width | 31.57" |
| Depth | 7.44" |
| Warranty | 7 Year Compressor / 5 Years Parts Warranty with Online Registration |
| Resources | You will need Adobe‚ Acrobat‚ Reader to view PDF documents |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| 6,000 BTU Stealth DIYCOOL Multi-Zone Wall Mount Mini Split Air Handler - R454B | 230V | |
| Feature | Spec |
| SKU | EZ-06W-MB |
| Weight (in lbs) | 24.47 |
| Brand/Manufacturer | Stealth |
| Controller | Included |
| Cooling BTU | 6,000 BTU |
| Heating BTU | 6,000 BTU |
| Maximum CFM | 391.4 Turbo / 294.3 Hi / 211.9 Med / 156.0 Lo CFM (Airflow) |
| Decibel Level (dBA) | 22.5 - 45.5 dBA |
| Refrigerant | R454B |
| Liquid Line | 1/4" |
| Suction Line | 3/8" |
| Electrical | 208/230V | 1 Phase | 60Hz |
| BTU/Tonnage | 6,000 BTU/0.5 Ton |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Single Zone |
| Height | 11.69" |
| Width | 31.57" |
| Depth | 7.44" |
| Warranty | 7 Year Compressor / 5 Years Parts Warranty with Online Registration |
| Resources | You will need Adobe‚ Acrobat‚ Reader to view PDF documents |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| 18,000 BTU Stealth DIYCOOL Multi‑Zone Wall Mount Mini Split Air Handler – R454B | 230V | |
| Feature | Spec |
| SKU | EZ-18W-MB |
| Weight (in lbs) | 35.49 |
| Brand/Manufacturer | Stealth |
| UPC | 704674308195 |
| Controller | Included |
| Cooling BTU | 18,000 BTU |
| Heating BTU | 18,000 BTU |
| Maximum CFM | 671.0 Turbo / 470.9 Hi / 382.6 Med / 323.7 Lo CFM (Airflow) |
| Decibel Level (dBA) | 19.0 - 54.5 dBA |
| Refrigerant | R454B |
| Liquid Line | 1/4" |
| Suction Line | 1/2" |
| Electrical | 208/230V | 1 Phase | 60Hz |
| BTU/Tonnage | 18,000 BTU/1.5 Ton |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Single Zone |
| Height | 13.19" |
| Width | 42.52" |
| Depth | 8.90" |
| Warranty | 7 Year Compressor / 5 Years Parts Warranty with Online Registration |
| Resources |
|
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| 24,000 BTU Stealth DIYCOOL Multi‑Zone Wall Mount Mini Split Air Handler – R454B | 230V | |
| Feature | Spec |
| SKU | EZ-24W-MB |
| Weight (in lbs) | 35.93 |
| Brand/Manufacturer | Stealth |
| UPC | 704674397366 |
| Controller | Included |
| Cooling BTU | 24,000 BTU |
| Heating BTU | 24,000 BTU |
| Maximum CFM | 759.3 Turbo / 588.6 Hi / 470.9 Med / 323.7 Lo CFM (Airflow) |
| Decibel Level (dBA) | 20 - 54 dBA |
| Refrigerant | R454B |
| Liquid Line | 3/8" |
| Suction Line | 5/8" |
| Electrical | 208/230V | 1 Phase | 60Hz |
| BTU/Tonnage | 24,000 BTU/2 Ton |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Single Zone |
| Height | 13.19" |
| Width | 42.52" |
| Depth | 8.90" |
| Warranty | 7 Year Compressor / 5 Years Parts Warranty with Online Registration |
| Resources | You will need Adobe‚ Acrobat‚ Reader to view PDF documents |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| 9,000 BTU Stealth DIYCOOL Multi-Zone Wall Mount Mini Split Air Handler - R454B | 230V | |
| Feature | Spec |
| SKU | EZ-09W-MB |
| Weight (in lbs) | 24.47 |
| Brand/Manufacturer | Stealth |
| Controller | Included |
| Cooling BTU | 9,000 BTU |
| Heating BTU | 9,000 BTU |
| Maximum CFM | 391.4 Turbo / 294.3 Hi / 211.9 Med / 156.0 Lo CFM (Airflow) |
| Decibel Level (dBA) | 18.0 - 45.5 dBA |
| Refrigerant | R454B |
| Liquid Line | 1/4" |
| Suction Line | 3/8" |
| Electrical | 208/230V | 1 Phase | 60Hz |
| BTU/Tonnage | 9,000 BTU/0.75 Ton |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Single Zone |
| Height | 11.69" |
| Width | 31.57" |
| Depth | 7.44" |
| Warranty | 7 Year Compressor / 5 Years Parts Warranty with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| 12,000 BTU Stealth DIYCOOL Multi-Zone Wall Mount Mini Split Air Handler - R454B | 230V | |
| Feature | Spec |
| SKU | EZ-12W-MB |
| Weight (in lbs) | 24.47 |
| Brand/Manufacturer | Stealth |
| Controller | Included |
| Cooling BTU | 12,000 BTU |
| Heating BTU | 12,000 BTU |
| Maximum CFM | 391.4 Turbo / 294.3 Hi / 211.9 Med / 156.0 Lo CFM (Airflow) |
| Decibel Level (dBA) | 18 - 45.5 dBA |
| Refrigerant | R454B |
| Liquid Line | 1/4" |
| Suction Line | 3/8" |
| BTU/Tonnage | 12,000 BTU/1 Ton |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Single Zone |
| Height | 11.69" |
| Width | 31.57" |
| Depth | 7.44" |
| Warranty | 7 Year Compressor / 5 Years Parts Warranty with Online Registration |
| Resources | You will need Adobe‚ Acrobat‚ Reader to view PDF documents |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| 6,000 BTU Stealth DIYCOOL Multi-Zone Wall Mount Mini Split Air Handler - R454B | 230V | |
| Feature | Spec |
| SKU | EZ-06W-MB |
| Weight (in lbs) | 24.47 |
| Brand/Manufacturer | Stealth |
| Controller | Included |
| Cooling BTU | 6,000 BTU |
| Heating BTU | 6,000 BTU |
| Maximum CFM | 391.4 Turbo / 294.3 Hi / 211.9 Med / 156.0 Lo CFM (Airflow) |
| Decibel Level (dBA) | 22.5 - 45.5 dBA |
| Refrigerant | R454B |
| Liquid Line | 1/4" |
| Suction Line | 3/8" |
| Electrical | 208/230V | 1 Phase | 60Hz |
| BTU/Tonnage | 6,000 BTU/0.5 Ton |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Single Zone |
| Height | 11.69" |
| Width | 31.57" |
| Depth | 7.44" |
| Warranty | 7 Year Compressor / 5 Years Parts Warranty with Online Registration |
| Resources | You will need Adobe‚ Acrobat‚ Reader to view PDF documents |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| 9,000 BTU Stealth DIYCOOL Multi-Zone Wall Mount Mini Split Air Handler - R454B | 230V | |
| Feature | Spec |
| SKU | EZ-09W-MB |
| Weight (in lbs) | 24.47 |
| Brand/Manufacturer | Stealth |
| Controller | Included |
| Cooling BTU | 9,000 BTU |
| Heating BTU | 9,000 BTU |
| Maximum CFM | 391.4 Turbo / 294.3 Hi / 211.9 Med / 156.0 Lo CFM (Airflow) |
| Decibel Level (dBA) | 18.0 - 45.5 dBA |
| Refrigerant | R454B |
| Liquid Line | 1/4" |
| Suction Line | 3/8" |
| Electrical | 208/230V | 1 Phase | 60Hz |
| BTU/Tonnage | 9,000 BTU/0.75 Ton |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Single Zone |
| Height | 11.69" |
| Width | 31.57" |
| Depth | 7.44" |
| Warranty | 7 Year Compressor / 5 Years Parts Warranty with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| 9,000 BTU Stealth DIYCOOL Multi-Zone Wall Mount Mini Split Air Handler - R454B | 230V | |
| Feature | Spec |
| SKU | EZ-09W-MB |
| Weight (in lbs) | 24.47 |
| Brand/Manufacturer | Stealth |
| Controller | Included |
| Cooling BTU | 9,000 BTU |
| Heating BTU | 9,000 BTU |
| Maximum CFM | 391.4 Turbo / 294.3 Hi / 211.9 Med / 156.0 Lo CFM (Airflow) |
| Decibel Level (dBA) | 18.0 - 45.5 dBA |
| Refrigerant | R454B |
| Liquid Line | 1/4" |
| Suction Line | 3/8" |
| Electrical | 208/230V | 1 Phase | 60Hz |
| BTU/Tonnage | 9,000 BTU/0.75 Ton |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Single Zone |
| Height | 11.69" |
| Width | 31.57" |
| Depth | 7.44" |
| Warranty | 7 Year Compressor / 5 Years Parts Warranty with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| 12,000 BTU Stealth DIYCOOL Multi-Zone Wall Mount Mini Split Air Handler - R454B | 230V | |
| Feature | Spec |
| SKU | EZ-12W-MB |
| Weight (in lbs) | 24.47 |
| Brand/Manufacturer | Stealth |
| Controller | Included |
| Cooling BTU | 12,000 BTU |
| Heating BTU | 12,000 BTU |
| Maximum CFM | 391.4 Turbo / 294.3 Hi / 211.9 Med / 156.0 Lo CFM (Airflow) |
| Decibel Level (dBA) | 18 - 45.5 dBA |
| Refrigerant | R454B |
| Liquid Line | 1/4" |
| Suction Line | 3/8" |
| BTU/Tonnage | 12,000 BTU/1 Ton |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Single Zone |
| Height | 11.69" |
| Width | 31.57" |
| Depth | 7.44" |
| Warranty | 7 Year Compressor / 5 Years Parts Warranty with Online Registration |
| Resources | You will need Adobe‚ Acrobat‚ Reader to view PDF documents |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| 18,000 BTU Stealth DIYCOOL Multi‑Zone Wall Mount Mini Split Air Handler – R454B | 230V | |
| Feature | Spec |
| SKU | EZ-18W-MB |
| Weight (in lbs) | 35.49 |
| Brand/Manufacturer | Stealth |
| UPC | 704674308195 |
| Controller | Included |
| Cooling BTU | 18,000 BTU |
| Heating BTU | 18,000 BTU |
| Maximum CFM | 671.0 Turbo / 470.9 Hi / 382.6 Med / 323.7 Lo CFM (Airflow) |
| Decibel Level (dBA) | 19.0 - 54.5 dBA |
| Refrigerant | R454B |
| Liquid Line | 1/4" |
| Suction Line | 1/2" |
| Electrical | 208/230V | 1 Phase | 60Hz |
| BTU/Tonnage | 18,000 BTU/1.5 Ton |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Single Zone |
| Height | 13.19" |
| Width | 42.52" |
| Depth | 8.90" |
| Warranty | 7 Year Compressor / 5 Years Parts Warranty with Online Registration |
| Resources |
|
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| 24,000 BTU Stealth DIYCOOL Multi‑Zone Wall Mount Mini Split Air Handler – R454B | 230V | |
| Feature | Spec |
| SKU | EZ-24W-MB |
| Weight (in lbs) | 35.93 |
| Brand/Manufacturer | Stealth |
| UPC | 704674397366 |
| Controller | Included |
| Cooling BTU | 24,000 BTU |
| Heating BTU | 24,000 BTU |
| Maximum CFM | 759.3 Turbo / 588.6 Hi / 470.9 Med / 323.7 Lo CFM (Airflow) |
| Decibel Level (dBA) | 20 - 54 dBA |
| Refrigerant | R454B |
| Liquid Line | 3/8" |
| Suction Line | 5/8" |
| Electrical | 208/230V | 1 Phase | 60Hz |
| BTU/Tonnage | 24,000 BTU/2 Ton |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Single Zone |
| Height | 13.19" |
| Width | 42.52" |
| Depth | 8.90" |
| Warranty | 7 Year Compressor / 5 Years Parts Warranty with Online Registration |
| Resources | You will need Adobe‚ Acrobat‚ Reader to view PDF documents |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| 9,000 BTU Stealth DIYCOOL Multi-Zone Wall Mount Mini Split Air Handler - R454B | 230V | |
| Feature | Spec |
| SKU | EZ-09W-MB |
| Weight (in lbs) | 24.47 |
| Brand/Manufacturer | Stealth |
| Controller | Included |
| Cooling BTU | 9,000 BTU |
| Heating BTU | 9,000 BTU |
| Maximum CFM | 391.4 Turbo / 294.3 Hi / 211.9 Med / 156.0 Lo CFM (Airflow) |
| Decibel Level (dBA) | 18.0 - 45.5 dBA |
| Refrigerant | R454B |
| Liquid Line | 1/4" |
| Suction Line | 3/8" |
| Electrical | 208/230V | 1 Phase | 60Hz |
| BTU/Tonnage | 9,000 BTU/0.75 Ton |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Single Zone |
| Height | 11.69" |
| Width | 31.57" |
| Depth | 7.44" |
| Warranty | 7 Year Compressor / 5 Years Parts Warranty with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| 12,000 BTU Stealth DIYCOOL Multi-Zone Wall Mount Mini Split Air Handler - R454B | 230V | |
| Feature | Spec |
| SKU | EZ-12W-MB |
| Weight (in lbs) | 24.47 |
| Brand/Manufacturer | Stealth |
| Controller | Included |
| Cooling BTU | 12,000 BTU |
| Heating BTU | 12,000 BTU |
| Maximum CFM | 391.4 Turbo / 294.3 Hi / 211.9 Med / 156.0 Lo CFM (Airflow) |
| Decibel Level (dBA) | 18 - 45.5 dBA |
| Refrigerant | R454B |
| Liquid Line | 1/4" |
| Suction Line | 3/8" |
| BTU/Tonnage | 12,000 BTU/1 Ton |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Single Zone |
| Height | 11.69" |
| Width | 31.57" |
| Depth | 7.44" |
| Warranty | 7 Year Compressor / 5 Years Parts Warranty with Online Registration |
| Resources | You will need Adobe‚ Acrobat‚ Reader to view PDF documents |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| 18,000 BTU Stealth DIYCOOL Multi‑Zone Wall Mount Mini Split Air Handler – R454B | 230V | |
| Feature | Spec |
| SKU | EZ-18W-MB |
| Weight (in lbs) | 35.49 |
| Brand/Manufacturer | Stealth |
| UPC | 704674308195 |
| Controller | Included |
| Cooling BTU | 18,000 BTU |
| Heating BTU | 18,000 BTU |
| Maximum CFM | 671.0 Turbo / 470.9 Hi / 382.6 Med / 323.7 Lo CFM (Airflow) |
| Decibel Level (dBA) | 19.0 - 54.5 dBA |
| Refrigerant | R454B |
| Liquid Line | 1/4" |
| Suction Line | 1/2" |
| Electrical | 208/230V | 1 Phase | 60Hz |
| BTU/Tonnage | 18,000 BTU/1.5 Ton |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Single Zone |
| Height | 13.19" |
| Width | 42.52" |
| Depth | 8.90" |
| Warranty | 7 Year Compressor / 5 Years Parts Warranty with Online Registration |
| Resources |
|
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| 24,000 BTU Stealth DIYCOOL Multi‑Zone Wall Mount Mini Split Air Handler – R454B | 230V | |
| Feature | Spec |
| SKU | EZ-24W-MB |
| Weight (in lbs) | 35.93 |
| Brand/Manufacturer | Stealth |
| UPC | 704674397366 |
| Controller | Included |
| Cooling BTU | 24,000 BTU |
| Heating BTU | 24,000 BTU |
| Maximum CFM | 759.3 Turbo / 588.6 Hi / 470.9 Med / 323.7 Lo CFM (Airflow) |
| Decibel Level (dBA) | 20 - 54 dBA |
| Refrigerant | R454B |
| Liquid Line | 3/8" |
| Suction Line | 5/8" |
| Electrical | 208/230V | 1 Phase | 60Hz |
| BTU/Tonnage | 24,000 BTU/2 Ton |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Single Zone |
| Height | 13.19" |
| Width | 42.52" |
| Depth | 8.90" |
| Warranty | 7 Year Compressor / 5 Years Parts Warranty with Online Registration |
| Resources | You will need Adobe‚ Acrobat‚ Reader to view PDF documents |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| 12,000 BTU Stealth DIYCOOL Multi-Zone Wall Mount Mini Split Air Handler - R454B | 230V | |
| Feature | Spec |
| SKU | EZ-12W-MB |
| Weight (in lbs) | 24.47 |
| Brand/Manufacturer | Stealth |
| Controller | Included |
| Cooling BTU | 12,000 BTU |
| Heating BTU | 12,000 BTU |
| Maximum CFM | 391.4 Turbo / 294.3 Hi / 211.9 Med / 156.0 Lo CFM (Airflow) |
| Decibel Level (dBA) | 18 - 45.5 dBA |
| Refrigerant | R454B |
| Liquid Line | 1/4" |
| Suction Line | 3/8" |
| BTU/Tonnage | 12,000 BTU/1 Ton |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Single Zone |
| Height | 11.69" |
| Width | 31.57" |
| Depth | 7.44" |
| Warranty | 7 Year Compressor / 5 Years Parts Warranty with Online Registration |
| Resources | You will need Adobe‚ Acrobat‚ Reader to view PDF documents |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| 12,000 BTU Stealth DIYCOOL Multi-Zone Wall Mount Mini Split Air Handler - R454B | 230V | |
| Feature | Spec |
| SKU | EZ-12W-MB |
| Weight (in lbs) | 24.47 |
| Brand/Manufacturer | Stealth |
| Controller | Included |
| Cooling BTU | 12,000 BTU |
| Heating BTU | 12,000 BTU |
| Maximum CFM | 391.4 Turbo / 294.3 Hi / 211.9 Med / 156.0 Lo CFM (Airflow) |
| Decibel Level (dBA) | 18 - 45.5 dBA |
| Refrigerant | R454B |
| Liquid Line | 1/4" |
| Suction Line | 3/8" |
| BTU/Tonnage | 12,000 BTU/1 Ton |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Single Zone |
| Height | 11.69" |
| Width | 31.57" |
| Depth | 7.44" |
| Warranty | 7 Year Compressor / 5 Years Parts Warranty with Online Registration |
| Resources | You will need Adobe‚ Acrobat‚ Reader to view PDF documents |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| 18,000 BTU Stealth DIYCOOL Multi‑Zone Wall Mount Mini Split Air Handler – R454B | 230V | |
| Feature | Spec |
| SKU | EZ-18W-MB |
| Weight (in lbs) | 35.49 |
| Brand/Manufacturer | Stealth |
| UPC | 704674308195 |
| Controller | Included |
| Cooling BTU | 18,000 BTU |
| Heating BTU | 18,000 BTU |
| Maximum CFM | 671.0 Turbo / 470.9 Hi / 382.6 Med / 323.7 Lo CFM (Airflow) |
| Decibel Level (dBA) | 19.0 - 54.5 dBA |
| Refrigerant | R454B |
| Liquid Line | 1/4" |
| Suction Line | 1/2" |
| Electrical | 208/230V | 1 Phase | 60Hz |
| BTU/Tonnage | 18,000 BTU/1.5 Ton |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Single Zone |
| Height | 13.19" |
| Width | 42.52" |
| Depth | 8.90" |
| Warranty | 7 Year Compressor / 5 Years Parts Warranty with Online Registration |
| Resources |
|
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| 24,000 BTU Stealth DIYCOOL Multi‑Zone Wall Mount Mini Split Air Handler – R454B | 230V | |
| Feature | Spec |
| SKU | EZ-24W-MB |
| Weight (in lbs) | 35.93 |
| Brand/Manufacturer | Stealth |
| UPC | 704674397366 |
| Controller | Included |
| Cooling BTU | 24,000 BTU |
| Heating BTU | 24,000 BTU |
| Maximum CFM | 759.3 Turbo / 588.6 Hi / 470.9 Med / 323.7 Lo CFM (Airflow) |
| Decibel Level (dBA) | 20 - 54 dBA |
| Refrigerant | R454B |
| Liquid Line | 3/8" |
| Suction Line | 5/8" |
| Electrical | 208/230V | 1 Phase | 60Hz |
| BTU/Tonnage | 24,000 BTU/2 Ton |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Single Zone |
| Height | 13.19" |
| Width | 42.52" |
| Depth | 8.90" |
| Warranty | 7 Year Compressor / 5 Years Parts Warranty with Online Registration |
| Resources | You will need Adobe‚ Acrobat‚ Reader to view PDF documents |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| 9,000 BTU Stealth DIYCOOL Multi-Zone Wall Mount Mini Split Air Handler - R454B | 230V | |
| Feature | Spec |
| SKU | EZ-09W-MB |
| Weight (in lbs) | 24.47 |
| Brand/Manufacturer | Stealth |
| Controller | Included |
| Cooling BTU | 9,000 BTU |
| Heating BTU | 9,000 BTU |
| Maximum CFM | 391.4 Turbo / 294.3 Hi / 211.9 Med / 156.0 Lo CFM (Airflow) |
| Decibel Level (dBA) | 18.0 - 45.5 dBA |
| Refrigerant | R454B |
| Liquid Line | 1/4" |
| Suction Line | 3/8" |
| Electrical | 208/230V | 1 Phase | 60Hz |
| BTU/Tonnage | 9,000 BTU/0.75 Ton |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Single Zone |
| Height | 11.69" |
| Width | 31.57" |
| Depth | 7.44" |
| Warranty | 7 Year Compressor / 5 Years Parts Warranty with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| 12,000 BTU Stealth DIYCOOL Multi-Zone Wall Mount Mini Split Air Handler - R454B | 230V | |
| Feature | Spec |
| SKU | EZ-12W-MB |
| Weight (in lbs) | 24.47 |
| Brand/Manufacturer | Stealth |
| Controller | Included |
| Cooling BTU | 12,000 BTU |
| Heating BTU | 12,000 BTU |
| Maximum CFM | 391.4 Turbo / 294.3 Hi / 211.9 Med / 156.0 Lo CFM (Airflow) |
| Decibel Level (dBA) | 18 - 45.5 dBA |
| Refrigerant | R454B |
| Liquid Line | 1/4" |
| Suction Line | 3/8" |
| BTU/Tonnage | 12,000 BTU/1 Ton |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Single Zone |
| Height | 11.69" |
| Width | 31.57" |
| Depth | 7.44" |
| Warranty | 7 Year Compressor / 5 Years Parts Warranty with Online Registration |
| Resources | You will need Adobe‚ Acrobat‚ Reader to view PDF documents |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| 18,000 BTU Stealth DIYCOOL Multi‑Zone Wall Mount Mini Split Air Handler – R454B | 230V | |
| Feature | Spec |
| SKU | EZ-18W-MB |
| Weight (in lbs) | 35.49 |
| Brand/Manufacturer | Stealth |
| UPC | 704674308195 |
| Controller | Included |
| Cooling BTU | 18,000 BTU |
| Heating BTU | 18,000 BTU |
| Maximum CFM | 671.0 Turbo / 470.9 Hi / 382.6 Med / 323.7 Lo CFM (Airflow) |
| Decibel Level (dBA) | 19.0 - 54.5 dBA |
| Refrigerant | R454B |
| Liquid Line | 1/4" |
| Suction Line | 1/2" |
| Electrical | 208/230V | 1 Phase | 60Hz |
| BTU/Tonnage | 18,000 BTU/1.5 Ton |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Single Zone |
| Height | 13.19" |
| Width | 42.52" |
| Depth | 8.90" |
| Warranty | 7 Year Compressor / 5 Years Parts Warranty with Online Registration |
| Resources |
|
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| 24,000 BTU Stealth DIYCOOL Multi‑Zone Wall Mount Mini Split Air Handler – R454B | 230V | |
| Feature | Spec |
| SKU | EZ-24W-MB |
| Weight (in lbs) | 35.93 |
| Brand/Manufacturer | Stealth |
| UPC | 704674397366 |
| Controller | Included |
| Cooling BTU | 24,000 BTU |
| Heating BTU | 24,000 BTU |
| Maximum CFM | 759.3 Turbo / 588.6 Hi / 470.9 Med / 323.7 Lo CFM (Airflow) |
| Decibel Level (dBA) | 20 - 54 dBA |
| Refrigerant | R454B |
| Liquid Line | 3/8" |
| Suction Line | 5/8" |
| Electrical | 208/230V | 1 Phase | 60Hz |
| BTU/Tonnage | 24,000 BTU/2 Ton |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Single Zone |
| Height | 13.19" |
| Width | 42.52" |
| Depth | 8.90" |
| Warranty | 7 Year Compressor / 5 Years Parts Warranty with Online Registration |
| Resources | You will need Adobe‚ Acrobat‚ Reader to view PDF documents |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
Write Your Own Review
Customer Questions
No Questions
Did you find what you were looking for?
WE'RE OPEN — CALL FOR
HELP & SAVINGS!
HELP & SAVINGS!
Get expert help now + extra price discounts available
📞
1-800-397-1392
Accessories
Got everything you needed to install? See the recommended and/or required options for installation below.
Check the items you would like to include with your order
- URL
