Today's Hours 8am - 11pm estStealth DIYCOOL Design Your Own 4 Zone Heat Pump System R454B
Required Fields *
By
Stealth
In stock
Model
Stealth DIYCOOL Quad Zone R454B
ID
210644
Was $3,147.68
Your Low Price $2,045.99
- Build Your Own Stealth System
- Heating & Cooling
- Ductless Solution
- Quad Zone/Room Compatible
- Choose 4 Air Handlers
- Condensers Ranging From 36K BTU - 48K BTU

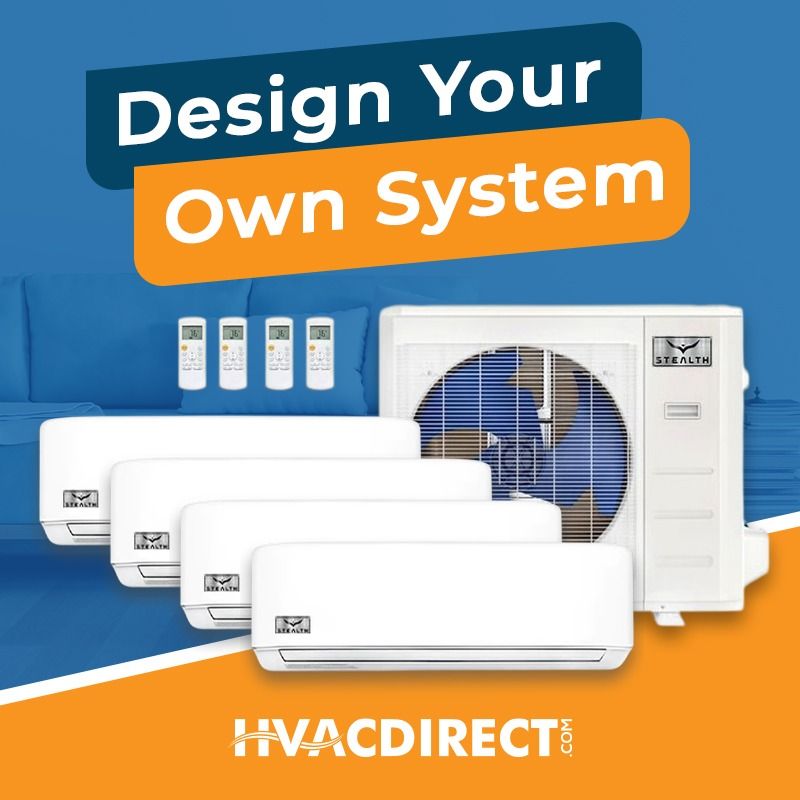

Stealth DIYCOOL Build Your Own Quad Zone Mini Split Systems
Stealth DIYCOOL Build Your Own Quad Zone Mini Split Systems are cutting-edge ductless heat pump solutions that provide efficient heating and cooling for four separate zones in your home. With high SEER performance and advanced inverter technology, these systems help keep energy costs down while delivering year-round comfort. Each zone operates independently with its own indoor unit and controller for personalized comfort.
Indoor Units
Wall-Mounted Air Handlers
- Sleek, space-saving design with quiet operation
- Auto-restart, sleep mode, and programmable settings
- Precise temperature control for targeted comfort
Outdoor Units
The Stealth multi-zone condenser uses an inverter-driven compressor to heat or cool refrigerant and send it to each indoor unit through small line sets. Every room or zone operates independently with its own wireless remote or via smart control options.
- Inverter technology for efficient, stable performance
- Supports multiple indoor unit styles and capacities
- Independent zone control: set different temperatures in each room
- Smart control options available; compatible with voice assistants like Alexa & Google Assistant
Why Choose Stealth Build Your Own Quad Zone?
- Personalized comfort for four separate spaces
- Energy-efficient operation to help reduce utility costs
- Flexible indoor unit options: wall-mounted, floor-mounted, cassette, or concealed ducted
- User-friendly installation features and robust reliability
Equipment Pad
E Liteis a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.
- High recycled plastic content
- Subtle texture resists unit slide
- Unaffected by UV or weather
- Uniform ribbing transfers load evenly
- Drillable for securing unit
- Lightweight, yet rugged
No Return Policy
All sales of this product are final and are non-refundable.
9,000 BTU Stealth Wall Mounted Air Handler-R454B
Enjoy flexible, year-round comfort with a compact multi-zone wall-mounted indoor air handler designed for efficient performance, quiet operation, and seamless integration with Stealth DIYCOOL Series heat pump systems.
The Stealth DIYCOOL Series 9,000 BTU Multi-Zone Wall Mount Mini Split Air Handler provides efficient heating and cooling for spaces up to 400 square feet. Operating on 230V power and utilizing environmentally friendly R-454B refrigerant, this indoor unit delivers reliable zone comfort with quiet operation and a sleek, space-saving wall-mounted design. Designed to pair with compatible Stealth DIYCOOL Series multi-zone condensers, it is an ideal solution for bedrooms, offices, apartments, and other smaller spaces requiring customized temperature control.
Key Features
- Multi-Zone Compatibility — Designed to work with compatible Stealth DIYCOOL multi-zone heat pump systems, allowing flexible comfort control across multiple rooms or areas.
- Efficient Heating & Cooling — Provides 9,000 BTU of capacity for dependable temperature control in smaller residential and office spaces.
- Quiet Indoor Performance — Engineered with advanced inverter technology for smooth, energy-efficient operation and reduced operating noise.
- DIY-Friendly Wall Mount Design — Features a compact wall-mounted configuration designed for flexible installation and compatibility with Stealth DIYCOOL systems.
- Smart Comfort Features — Includes convenient features such as Wi-Fi capability, sleep mode, auto swing, louver position memory, and self-diagnostic functionality for easier operation and maintenance.
Warranty
Stealth offers a limited warranty of 7-Year Compressor / 5-Year Parts Warranty when installed according to manufacturer guidelines.
Equipment Pad and Risers Kit
E Lite Condenser Pad and Risers
E Lite Condenser Pad
E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.
Key Features:
- Reliable Support: Abundance of ridges for stable ground support.
- Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
- Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
- Simple Appearance: Gray color with size labels.
- Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.
E Lite Risers
E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.
Key Features:
- Weather Resistance: Made from tough PVC for long-lasting performance.
- Secure Setup: The track securely holds bolts in place.
- Bolts Included: Each set comes with two bolts.
- Strong Support: Capable of handling loads of up to 397 pounds.
E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.
No Return Policy
All sales of this product are final and are non-refundable.
27,000 BTU Stealth Multi Zone Condeser-R454B
Enjoy customizable, year-round comfort with a high-efficiency multi-zone outdoor condenser designed for easy installation.
The Stealth DIYCOOL Series 27,000 BTU Multi-Zone Mini Split Heat Pump Condenser delivers efficient heating and cooling with the flexibility to support multiple indoor comfort zones. Designed to provide reliable climate control for spaces up to 1,500 square feet, this inverter-driven outdoor condenser operates on 230V power and utilizes environmentally friendly R-454B refrigerant for energy-efficient performance. Supporting up to three compatible indoor air handlers, it allows homeowners to create personalized comfort zones throughout different rooms while maintaining quiet and dependable operation year-round.
Key Features
- Multi-Zone Comfort Control — Supports up to three compatible indoor units, allowing customized temperature control across multiple rooms or areas.
- High-Efficiency Inverter Performance — Delivers 27,000 BTU of heating and cooling capacity with efficient operation designed to help reduce energy usage.
- DIY-Friendly Installation — Designed with the Stealth DIYCOOL installation system to help simplify setup and provide a more convenient installation experience.
- Quiet, Reliable Operation — Features advanced inverter technology and durable outdoor construction for smooth, low-noise performance in varying conditions.
- Smart Comfort Compatibility — Works with compatible Stealth DIYCOOL indoor units featuring convenient functions such as Wi-Fi control, sleep mode, auto swing, and louver position memory.
Warranty
Stealth offers a limited warranty of 7-Year Compressor / 5-Year Parts Warranty when installed according to manufacturer guidelines.
36,000 BTU Stealth Multi Zone Condeser-R454B
Enjoy flexible, year-round comfort with a powerful multi-zone outdoor condenser designed for customizable zoning, efficient performance, and simplified DIY installation.
The Stealth DIYCOOL Series 36,000 BTU Multi-Zone Mini Split Heat Pump Condenser delivers efficient heating and cooling for spaces up to 2,000 square feet. Operating on 230V power and utilizing environmentally friendly R-454B refrigerant, this inverter-driven outdoor condenser provides reliable performance with up to 23 SEER2 efficiency. Designed to support multiple compatible indoor air handlers, it allows homeowners to create customized comfort zones throughout different rooms while maintaining quiet, energy-efficient operation throughout the year.
Key Features
- Multi-Zone Comfort Control — Supports multiple compatible indoor units, allowing personalized temperature control across different rooms and living areas.
- High-Efficiency Inverter Performance — Delivers 36,000 BTU of heating and cooling capacity with up to 23 SEER2 efficiency for dependable comfort and improved energy savings.
- DIY-Friendly Installation — Designed with Stealth DIYCOOL technology to help simplify installation and provide a more convenient setup experience.
- Quiet, Reliable Operation — Engineered with advanced inverter technology and durable outdoor construction for smooth, low-noise performance in varying weather conditions.
- Smart Comfort Compatibility — Works with compatible Stealth DIYCOOL indoor units featuring convenient functions such as Wi-Fi control, sleep mode, auto swing, and louver position memory.
Warranty
Stealth offers a limited warranty of 7-Year Compressor / 5-Year Parts Warranty when installed according to manufacturer guidelines.
12,000 BTU Stealth Multi Zone Air Handler-R454B
Enjoy flexible, year-round comfort with a high-efficiency multi-zone wall-mounted indoor air handler designed for quiet operation, easy installation, and seamless integration with Stealth DIYCOOL Series heat pump systems.
The Stealth DIYCOOL Series 12,000 BTU Multi-Zone Wall Mount Mini Split Air Handler provides efficient heating and cooling for spaces up to 600 square feet. Operating on 230V power and utilizing environmentally friendly R-454B refrigerant, this indoor unit delivers reliable zone comfort with quiet operation and a sleek, space-saving wall-mounted design. Designed to pair with compatible Stealth DIYCOOL Series multi-zone condensers, it is an ideal solution for bedrooms, living areas, offices, apartments, and other spaces requiring customizable temperature control.
Key Features
- Multi-Zone Compatibility — Designed to work with compatible Stealth DIYCOOL multi-zone heat pump systems, allowing flexible comfort control across multiple rooms or areas.
- Efficient Heating & Cooling — Provides 12,000 BTU of capacity for dependable temperature control in small to medium-sized residential and office spaces.
- Quiet Indoor Performance — Engineered for smooth, low-noise operation to help maintain a comfortable indoor environment.
- DIY-Friendly Wall Mount Design — Features a compact wall-mounted configuration designed for flexible installation and compatibility with Stealth DIYCOOL systems.
- Smart Comfort Features — Includes Wi-Fi capability, multiple control options, sleep mode, humidity control, auto swing, louver position memory, and self-diagnostic functionality for convenient operation and maintenance.
Warranty
Stealth offers a limited warranty of 7-Year Compressor / 5-Year Parts Warranty when installed according to manufacturer guidelines.
30" Wall Mount Bracket
This wall mount bracket is perfect for outdoor condensers. The length of the wall bracket arms are 30" long. The condensing unit is mounted onto the L-shaped brackets and fastened using bolts and anti-vibration washers (not included with brackets).
Features:
- Steel: 10 GA
- Powder-coated grey Finish
- Load rating: 600 lbs per pair
- Holes will accommodate anchors for installation
- Warranty: 1 year
- ACB line of wall brackets are approved by the Florida Building Commission and are High Velocity Hurricane Zone (HVHZ) approved. (See product certification documentation for complete details.)
No Return Policy
All sales of this product are final and are non-refundable.
48,000 BTU Stealth Multi Zone Condenser-R454B
Experience powerful, year-round comfort with a high-capacity multi-zone outdoor condenser designed for flexible zoning, efficient performance, and simplified DIY installation.
The Stealth DIYCOOL Series 48,000 BTU Multi-Zone Mini Split Heat Pump Condenser delivers reliable heating and cooling for spaces up to 2,500 square feet. Operating on 230V power and utilizing environmentally friendly R-454B refrigerant, this inverter-driven outdoor condenser provides efficient performance with up to 21.8 SEER2 efficiency. Designed to support multiple compatible indoor air handlers, it allows homeowners to create customized comfort zones throughout larger homes or office spaces while maintaining quiet and energy-efficient operation throughout the year.
Key Features
- Multi-Zone Comfort Control — Supports multiple compatible indoor units, allowing personalized temperature control across different rooms and areas.
- High-Efficiency Inverter Performance — Delivers 48,000 BTU of heating and cooling capacity with up to 21.8 SEER2 efficiency for dependable comfort and improved energy savings.
- DIY-Friendly Installation — Designed with Stealth DIYCOOL technology to help simplify setup and provide a more convenient installation experience.
- Quiet, Reliable Operation — Engineered with advanced inverter technology and durable outdoor construction for efficient, low-noise performance in varying conditions.
- Smart Comfort Compatibility — Works with compatible Stealth DIYCOOL indoor units featuring convenient functions such as Wi-Fi control, sleep mode, auto swing, and louver position memory.
Warranty
Stealth offers a limited warranty of 7-Year Compressor / 5-Year Parts Warranty when installed according to manufacturer guidelines.
18,000 BTU Stealth Single Zone Air Handler-R454B
Enjoy flexible, year-round comfort with a multi-zone wall-mounted indoor air handler designed for efficient performance, quiet operation, and easy integration with Stealth DIYCOOL Series heat pump systems.
The Stealth DIYCOOL Series 18,000 BTU Multi-Zone Wall Mount Mini Split Air Handler provides efficient heating and cooling for spaces up to 1,000 square feet. Operating on 230V power and utilizing environmentally friendly R-454B refrigerant, this indoor unit delivers reliable zone comfort with quiet operation and a sleek, space-saving wall-mounted design. Designed for compatibility with Stealth DIYCOOL Series multi-zone condensers, it is an ideal solution for bedrooms, living areas, offices, apartments, and other spaces requiring customized temperature control.
Key Features
- Multi-Zone Compatibility — Designed to work with compatible Stealth DIYCOOL multi-zone heat pump systems, allowing flexible comfort control across multiple rooms or areas.
- Efficient Heating & Cooling — Provides 18,000 BTU of capacity for reliable temperature control in medium to large spaces.
- Quiet Indoor Performance — Engineered for smooth, low-noise operation to help maintain a comfortable indoor environment.
- DIY-Friendly Wall Mount Design — Features a compact wall-mounted configuration with quick-connect compatibility for easier installation with Stealth DIYCOOL systems.
- Smart Comfort Features — Includes convenient features such as Wi-Fi capability, smartphone control, remote operation, and reliable system monitoring for enhanced comfort management.
Warranty
Stealth offers a limited warranty of 7-Year Compressor / 5-Year Parts Warranty when installed according to manufacturer guidelines.
Condenser Risers - 4" x 18" - 2 Pack
Provides simple and secure mounting for small and large piping systems, ductwork runs, cable trays and smaller equipment such as condensers. Linear track offers adjustable mounting. Manufactured from exterior grade materials.
Features
- Ideal for piping, duct runs, cable trays and condensers
- Weather resistant PVC
- Linear track holds 3/8" hex head bolts
- Two 7/8" long bolts included
- Weighs up to 397 Ib
24,000 BTU Stealth Single Zone Air Handler-R454B
Enjoy flexible, year-round comfort with a high-capacity multi-zone wall-mounted indoor air handler designed for efficient performance, quiet operation, and seamless integration with Stealth DIYCOOL Series heat pump systems.
The Stealth DIYCOOL Series 24,000 BTU Multi-Zone Wall Mount Mini Split Air Handler provides efficient heating and cooling for spaces up to 1,500 square feet. Operating on 230V power and utilizing environmentally friendly R-454B refrigerant, this indoor unit delivers reliable zone comfort with quiet operation and a sleek, space-saving wall-mounted design. Designed for compatibility with Stealth DIYCOOL Series multi-zone condensers, it is an ideal solution for larger bedrooms, living areas, offices, apartments, and other spaces requiring customized temperature control.
Key Features
- Multi-Zone Compatibility — Designed to work with compatible Stealth DIYCOOL multi-zone heat pump systems, allowing flexible comfort control across multiple rooms or areas.
- Efficient Heating & Cooling — Provides 24,000 BTU of heating and cooling capacity to deliver dependable comfort for larger spaces and individual zones.
- Quiet Indoor Performance — Engineered for smooth, low-noise operation to help maintain a comfortable indoor environment.
- DIY-Friendly Wall Mount Design — Features a compact wall-mounted configuration with quick-connect compatibility for easier installation with Stealth DIYCOOL systems.
- Smart Comfort Features — Includes convenient features such as Wi-Fi capability, smartphone control, remote operation, and reliable system monitoring for enhanced comfort management.
Warranty
Stealth offers a limited warranty of 7-Year Compressor / 5-Year Parts Warranty when installed according to manufacturer guidelines.
36,000 BTU Stealth Multi Zone Air Handler-R454B
Enjoy powerful, flexible comfort with a high-capacity multi-zone wall-mounted indoor air handler designed for efficient performance.
The Stealth DIYCOOL Series 36,000 BTU Multi-Zone Wall Mount Mini Split Air Handler provides efficient heating and cooling for spaces up to 2,000 square feet. Operating on 230V power and utilizing environmentally friendly R-454B refrigerant, this indoor unit delivers reliable zone comfort with quiet operation and a sleek, space-saving wall-mounted design. Designed for compatibility with Stealth DIYCOOL Series multi-zone condensers, it is an ideal solution for larger living areas, offices, apartments, and other spaces requiring customizable temperature control.
Key Features
- Multi-Zone Compatibility — Designed to work with compatible Stealth DIYCOOL multi-zone heat pump systems, allowing flexible comfort control across multiple rooms or areas.
- High-Capacity Heating & Cooling — Provides 36,000 BTU of capacity for dependable temperature control in larger residential and light commercial spaces.
- Quiet Indoor Performance — Engineered for smooth, low-noise operation to help maintain a comfortable indoor environment.
- DIY-Friendly Wall Mount Design — Features a compact wall-mounted configuration designed for flexible installation and compatibility with Stealth DIYCOOL systems.
- Smart Comfort Features — Includes Wi-Fi capability, multiple control options, humidity control, and convenient operation features for enhanced comfort management.
Warranty
Stealth offers a limited warranty of 7-Year Compressor / 5-Year Parts Warranty when installed according to manufacturer guidelines.
