Stealth Comfort Dual Zone Heat Pump System - Design Your Own R410A

No Return Policy: All sales of this product are final and are non-refundable.

Stealth Designer Series Concealed Ducted units are flexible air handlers that can be concealed above ceilings, beneath floors, above closets or in hallways. Supply air can be delivered directly into rooms through a grate, or through a field-fabricated duct board plenum and flex ducting. Concealed duct air handlers all come equipped with a factory installed condensate drain pump to move water to a safe discharge location. A wall-mounted thermostat is included.

Please note: This air handler must be connected to an outdoor condenser in order to function.

No Return Policy: All sales of this product are final and are non-refundable.

18,000 BTU Concealed Duct Type Air Handler

Stealth Designer Series Concealed Ducted units are flexible air handlers that can be concealed above ceilings, beneath floors, above closets or in hallways. Supply air can be delivered directly into rooms through a grate, or through a field-fabricated duct board plenum and flex ducting. Concealed duct air handlers all come equipped with a factory installed condensate drain pump to move water to a safe discharge location. A wall-mounted thermostat is included.

Please note:

This air handler must be connected to an outdoor condenser in order to function.

No Return Policy: All sales of this product are final and are non-refundable.

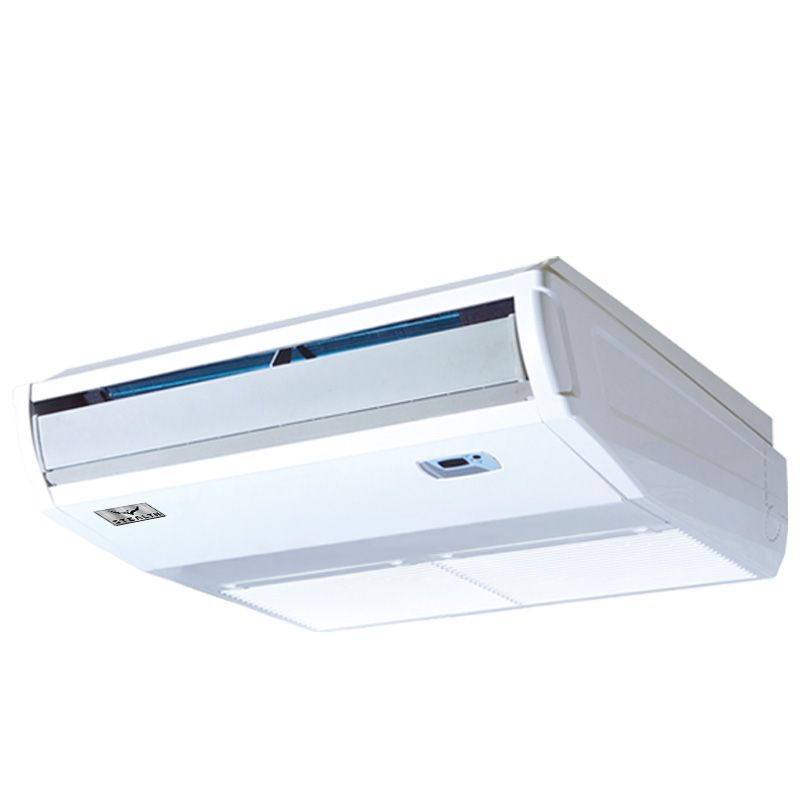

Stealth Designer Series Floor or Ceiling Mount Air Handlers can be surface mounted vertically or horizontally* for ultimate flexibility in placement. The wider, flatter form factor makes it a good solution when you only have vertical wall space that is close to the floor, such as in an attic room. Surface mount on the ceiling is also possible but may require a separate condensate pump to remove water.

Please note: This air handler must be connected to an outdoor condenser in order to function.

No Return Policy: All sales of this product are final and are non-refundable.

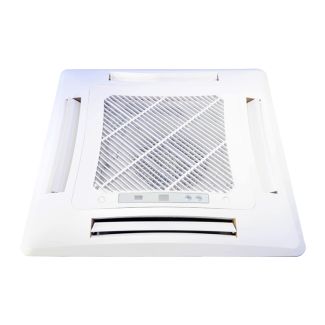

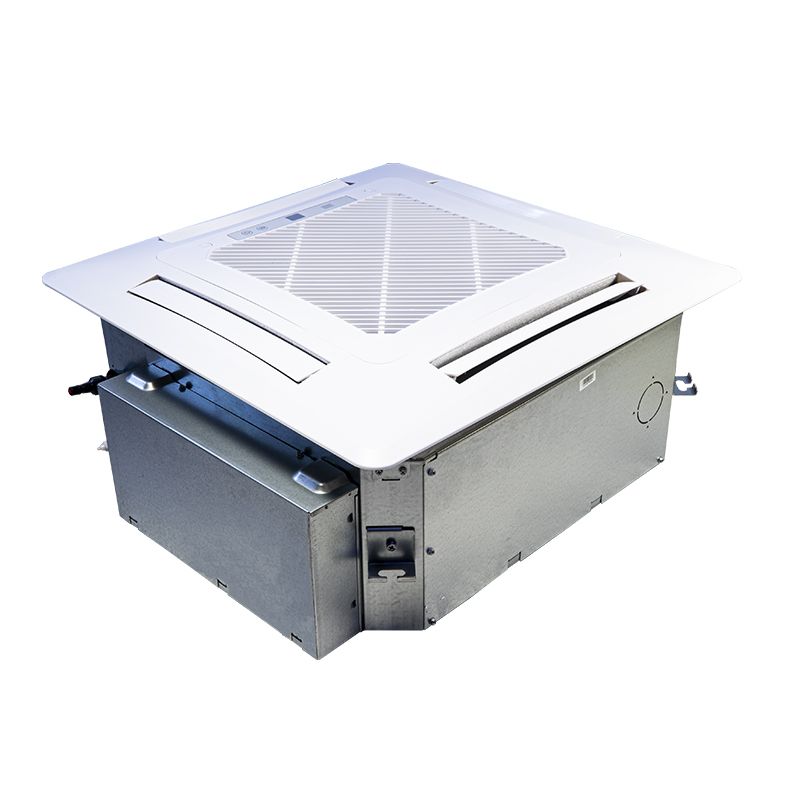

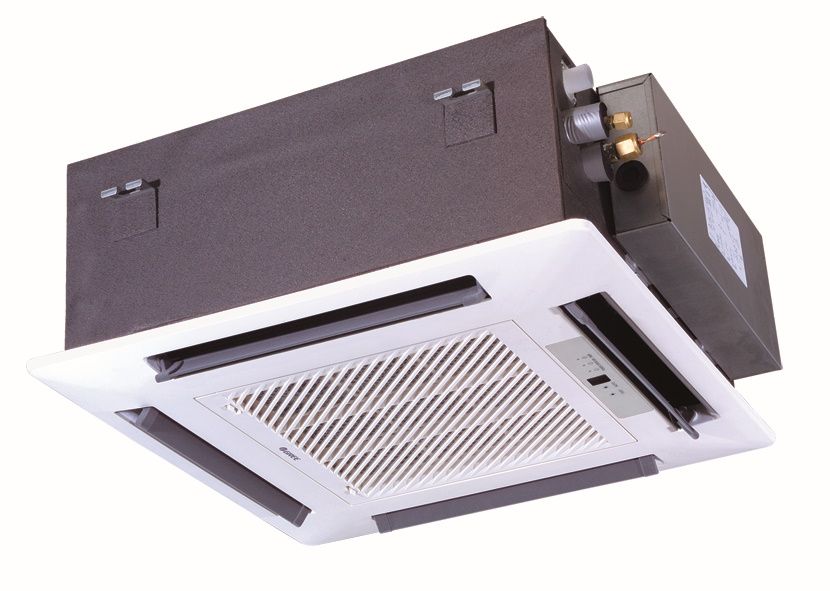

Stealth Designer Series Ceiling Cassettes flush mount into your existing ceiling, allowing you to maintain the appearance of your walls. Ceiling Cassettes supply conditioned air in all four directions, resulting in quick, even cooling and heating. Every Ceiling Cassette has a factory installed condensate drain pump to move water to a safe discharge location. A wall mount thermostat and remote control are included.

Please note: This air handler must be connected to an outdoor condenser in order to function.

Please note: Product does not include grille cover- please order from Accessories.

No Return Policy: All sales of this product are final and are non-refundable.

OVERVIEW

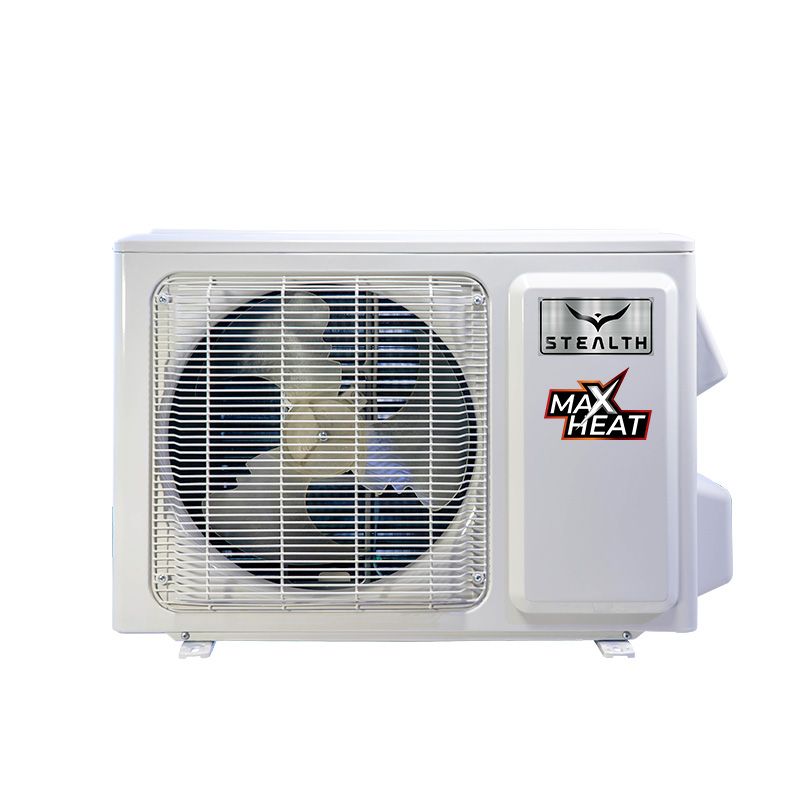

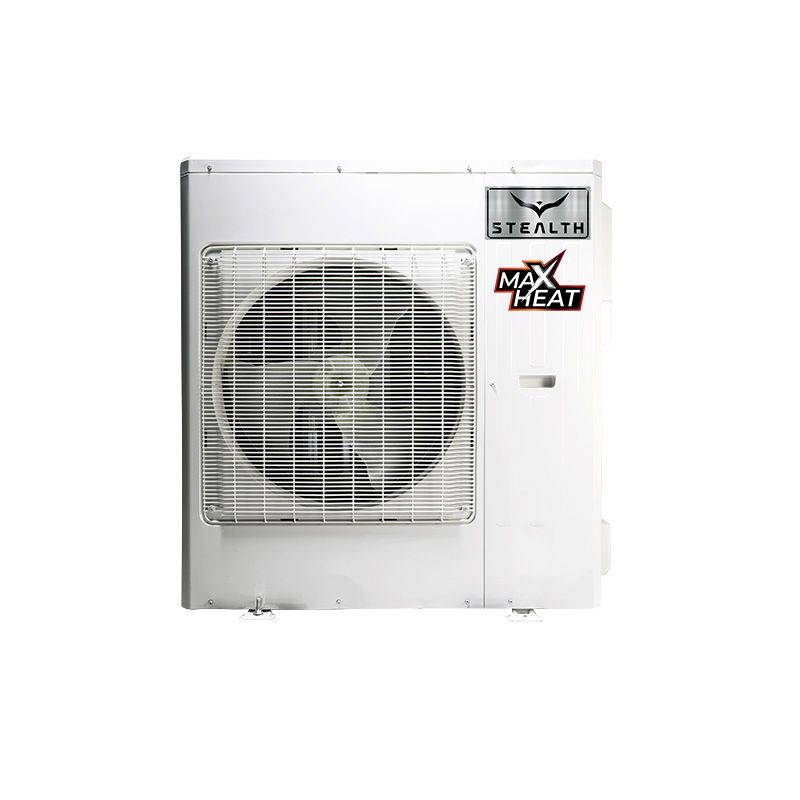

The Stealth Pinnacle Series Multi Zone SC-30Z-HH-M4B heat pump condenser is Energy Star rated, with Hyper Heat performance down to an outside temperature of –31 degrees Fahrenheit. The outdoor unit has connections for up to 4 air handlers and is pre-charged with R410a refrigerant for 131' of total line set length.

Pinnacle Series condensers have the highest efficiency ratings of any multi zone mini split, up to 23 SEER and 10.5 HSPF.

QUICK FACTS

• Energy Star Rated
• Max efficiency up to 21 SEER and 10 HSPF
• Heating temperatures range from -22°F to 75°F
• Cooling temperatures range from -22°F to 118°F
• 14 year compressor, 5 year parts extended warranty with registration
• Rugged construction with acrylic resin fin coating for durability

30,000 BTU, 21 SEER

This condenser has connections for up to 4 air handlers to cover different rooms or zones in your space. The SEER rating of 23 means you pay less for this amount of heating and cooling compared to systems with lower SEER values. The Stealth Pinnacle Series means elite performance at attractive prices.

14 Year Warranty

The Stealth Emerald Series features a 14 warranty with online registration. The standard warranty on the SC-36Z-HH-M4 is a 5-year parts and 7-year limited compressor warranty. With online registration and an installation following state and local installation codes, the compressor warranty increases to 14 years.

Durability and Reliability

Rugged construction, combined with an acrylic resin fin coating adds up to a long, trouble-free service life. Precision engineering is behind every Stealth Pinnacle Series model, resulting in powerful performance across a punishing range of conditions. The SC-30Z-HH-M4B provides continuous heat with outdoor temperatures down to -31 degrees Fahrenheit.

Installation and Maintenance

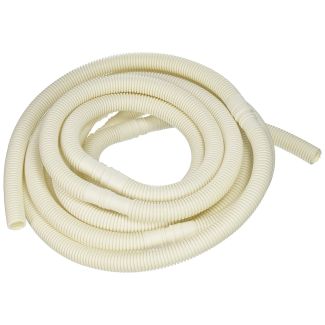

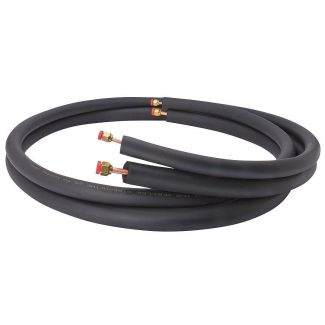

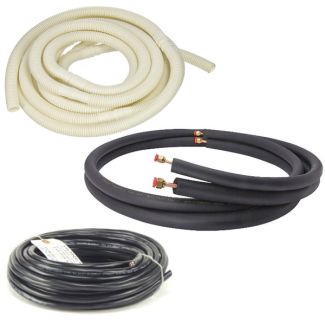

Every Stealth Pinnacle series condenser comes pre-charged with R410a refrigerant, enough for 25’ of line set per air handler. The line set fittings are compression-type and will require evacuation prior to refrigerant release. Line set kits, including insulated copper refrigerant lines, control wire and drain hose extensions are available under Accessories on this page. Stealth Pinnacle series features self-diagnosing electronics. Should the system detect a fault, error codes will display on the front of the inside units.

Please note:

This system includes only the outdoor condenser, indoor air handlers and wall-mounted or remote thermostats (depending on model) as depicted in the photo above. Additional Accessories are required to complete the installation.

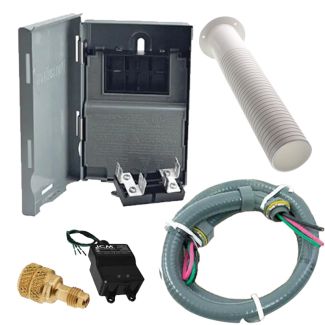

Each air handler requires a separate refrigerant line set, control wire and condensation control. The condenser requires connection to household power, wired through a disconnect switch and flexible, weatherproof conduit (whip). Additional optional accessories are also available. For help configuring your system, call (888) 377-2850.
