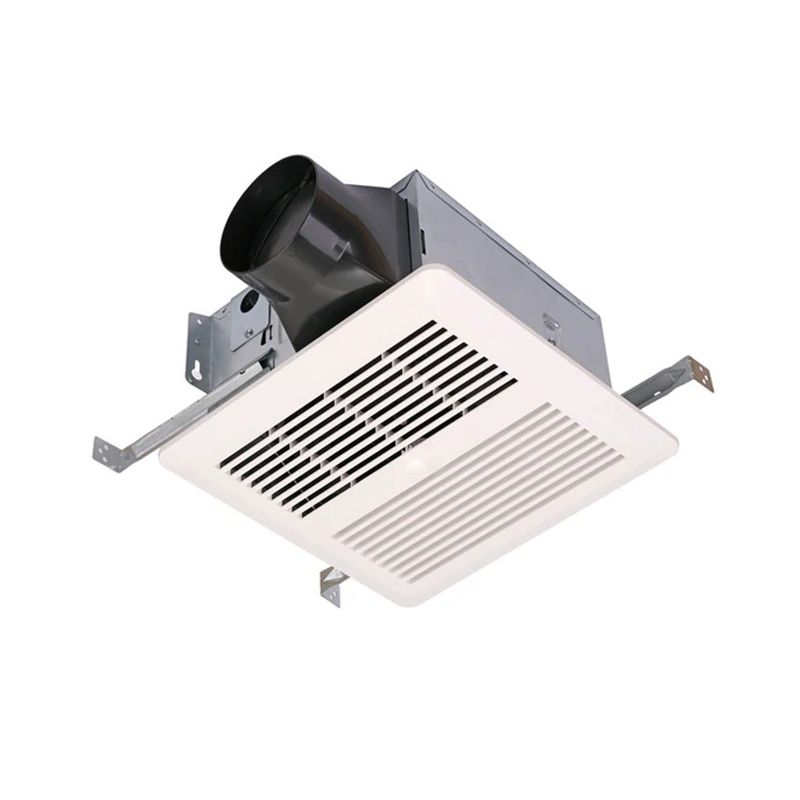

Sterling Fan Compact 50-80-100CFM DC Ceiling Exhauster - SNPD100-3

Be the first to review this product

In Stock - Ready to Ship

Sterling Fan

In stock

Model

SNPD100-3

149679

$100.00

Product Features

Ultra-quiet two-speed EC motor fan for ceiling or wall mounting
Adjustable continuous low-speed setting with toggle switch for high-speed selection
Adjustable continuous low-speed setting with toggle switch for high-speed selection
Removable centrifugal blower wheel for easy servicing and consistent airflow

5 Questions Answered

Description

OVERVIEW

Introducing an exceptionally quiet two-speed EC motor fan designed for easy ceiling or wall mounting. The low-speed setting operates continuously and is adjustable, offering a range of 0 to 30 CFM up to its maximum CFM capacity. This fan has undergone rigorous evaluation and has received ETL certification, assuring adherence to UL and cUL safety standards. Furthermore, it proudly bears the esteemed certifications of HVI and ENERGY STAR, attesting to its outstanding performance and energy efficiency.

Key Features

Ceiling ventilator shall have corrosion-resistant galvanized steel.
Continuous adjustable low speed operation allows accurate CFM selection.
Built in toggle switch for high speeds (50CFM/80CFM/100CFM) selection.
Blower assembly shall be removable, have a centrifugal-type blower wheel, and a permanently lubricated motor designed for continuous operation.
Includes an attachable non-metallic collar with a built-in back draft damper.
Air and sound delivery shall meet the ENERGY STAR, HVI certified ratings as per the fan curves attached.

Warranty Information

Sterling Fans are backed by a 12-month limited warranty covering defects in materials and workmanship for all mechanical and electrical components, starting from the date of purchase. Proof of purchase is required. Under this warranty, the manufacturer will repair or replace any defective part used under normal household conditions within the coverage period.

This warranty does not cover damages caused by improper installation, shipping, misuse, abuse, accidents, alterations, lack of maintenance, or unauthorized service. Labor, service, transportation, and shipping charges for part removal or installation are also excluded beyond the initial 12-month period. For warranty service or additional information, please contact Sterling Fans customer support or your authorized Sterling Fans dealer.

Premium Materials & Construction

The Sterling Fans Compact Series Bathroom Exhaust Fans are crafted for seamless ceiling or wall installation and deliver dependable, whisper-quiet performance. Their rugged 26-gauge galvanized steel housing ensures robust corrosion resistance, while the detachable 4-inch polymeric collar, complete with a built-in backdraft damper, adds convenience and airflow control. Beneath the elegant, low-profile grille sits a capacitance start motor designed for continuous operation, featuring permanent lubrication and an integrated overload disconnect for both reliability and safety. Fully certified by HVI, UL, and cUL, these fans consistently meet high standards for air delivery and sound levels.

The fan delivers moisture and odor control without disrupting your space, making them a smart choice wherever quiet and effective ventilation matters.

Why Choose Sterling Fans Compact Series Bathroom Fans?

Advanced Motor & Blower System

Permanently lubricated plug-in motor designed for continuous-duty operation.
Low-speed RPM design delivers ultra-quiet airflow without reducing performance.
Motor comes with a built-in overload disconnect for safety and longer motor life.

Sleek & Durable Grille Design

Made from rugged polymeric resin, built to withstand moisture and wear.
Simple, clean aesthetic complements a wide range of ceiling designs.

Rugged Housing Construction

Constructed from heavy-duty 26-gauge galvanized steel
Removable 4-inch collar with built-in lightweight backdraft damper
Removable blower assembly with a centrifugal blower wheel

Product Specs

More Information
Sterling Fan Compact 50-80-100CFM DC Ceiling Exhauster - SNPD100-3
Feature	Spec
SKU	SNPD100-3
Weight (in lbs)	10
Brand/Manufacturer	Sterling Fan
Drive Type	EC Motor
Maximum CFM	50-80-100
Noise (sones)	.3-.5-1.0
Energy Star	Yes
Electrical	120 V
Wattage	3.4-6.1-9.7
Certification	HVI and ENERGY STAR certified
Duct Diameter	4"
Height	9"
Width	x9"
Depth	5 3/4"
Resources	Specifications Installation Manual
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.

Reviews

Accessories

FAQ's

Customer Questions

Can these fans be mounted on walls or just ceilings?

These fans are primarily ceiling‐mounted. They are also suitable for wall mounting under appropriate installation conditions.

Do these bathroom fans need a special controller?

No, they don’t. These fans work with standard on/off wall switches, so you don’t need any special or proprietary controller. If you’d like more advanced options, those can be added separately. Feel free to reach out if you have any questions.

Where are these bathroom exhausts best used?

Perfect for small to medium bathrooms, powder rooms, or anywhere you want good ventilation with low noise. Their size and quiet operation make them good for ceilings or walls in homes where peace and comfort matter.

Is installing one of these exhaust fans difficult?

Not at all. These fans are made for easy ceiling or wall installation. They come with a detachable collar for connecting the duct and a built-in back-draft damper. As long as you have power, a 4-inch duct, and an outdoor vent, the setup is simple

Will this fan overheat if used for long hours?

The motor has a built-in overload disconnect for safety. If it’s overloaded or overheated, that device helps protect the motor from damage
