What kind of burner setup if this oil furnace?

Hello, the burner setup for this oil furnace is a gun burner, also known as atomizing oil burners. The model is Beckett AF-10. If you have any further questions, please feel free to give us a call! Thank you.

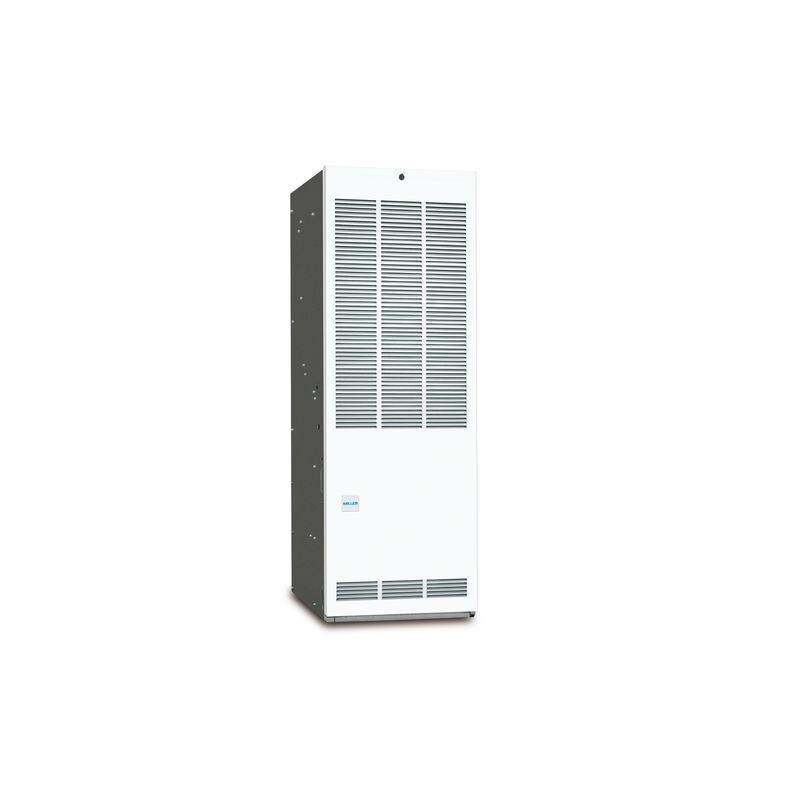

Style Crest-Revolv 66,000 BTU 83% AFUE Oil Furnace without Coil Box - Downflow - R454B Compatible

Description

The Style Crest-Revolv M5SB-B066A-AW1 Oil furnace is a reliable heat source for almost any mobile home application. With its easy installation and maintenance, this unit will provide comfort to your home in all-oil system setups.

Quick Facts

66,000 BTU heating capacity
Without coil cabinet
Compatible with R410A and R454B refrigerant
Effective air filter to improve air quality
83% AFUE efficiency rating
Downflow design for easy installation in tight spaces
Durable construction for long-lasting reliability
Efficient oil combustion for cost-effective heating

Warranty

Revolv oil furnaces come with 2 year parts warranty when registered online through the manufacturer and with an installation that follows your state and local codes.

Installation and Maintenance

The Style Crest-Revolv M5SB-B066A-AW1 Oil furnace is designed to be easily installed for a faster process, lowering labor costs. The filter is also easy to wash or replace, lowering maintenance costs.

Mobile Home Buying & Sizing Guide

Mobile home approved product types
Product differences
Figuring out the right size unit for your needs
Determining factors
Repair vs. replace

Mobile Home Buying & Sizing Guide

Product Specifications

More Information
Style Crest-Revolv 66,000 BTU 83% AFUE Oil Furnace without Coil Box - Downflow - R454B Compatible
SKU	M5SB-B066A-AW1
Weight (in lbs)	151.000000
Brand/Manufacturer	Style Crest-Revolv
Replaces	M5SB-066A-AW
Furnace Efficiency / AFUE	83%
Heating BTU	66,000 BTU
Blower Motor	ECM Multi Speed
Maximum CFM	1210
Configuration	Downflow
Electrical	120v 1 Phase 60Hz
Phase	Single Phase
Max Breaker Size	6 Amps
Fuel Type	Oil
Height	56"
Width	19.75"
Depth	23.75"
Warranty	10 year Limited Heat Exchanger Warranty
Resources	M5 Series Installation Manual StyleCrest M5 Series Specifications Warranty You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
