Today's Hours 8am - 11pm estiON One Power Supply System | Input Voltage: 120 VAC/24VDC | Output Voltage: 120VAC, 12 amp | Sumpro Model 100
Ships in 3-5 Business Days
By
Ion Technologies
In stock
Model
Sumpro Model 100
ID
240349
Was $3,209.00 Your Low Price Special Price $2,156.00
Product Features
- 15A Inverter: Converts battery power to steady 120V AC.
- Dual Battery Box: Supports two 12V AGM batteries for backup power.
- Automatic Backup: Switches to battery power during outages.
- 12A Output: Supports 120V sump or sewage pumps up to 12 amps.
- Status Display: Shows power and operating conditions at a glance.
- 3-Year Warranty: Coverage for added peace of mind.
Reliable Emergency Power for Sump & Sewage Pumps
Keep your sump or sewage pump running during a power outage with the iON SumPro Model 100, a standby battery backup power supply designed for compatible 120V pumps rated up to 12 amps. Instead of requiring a separate DC backup pump, the SumPro converts stored battery power into 120V AC power, allowing the connected pump to continue operating with its normal AC-rated performance.

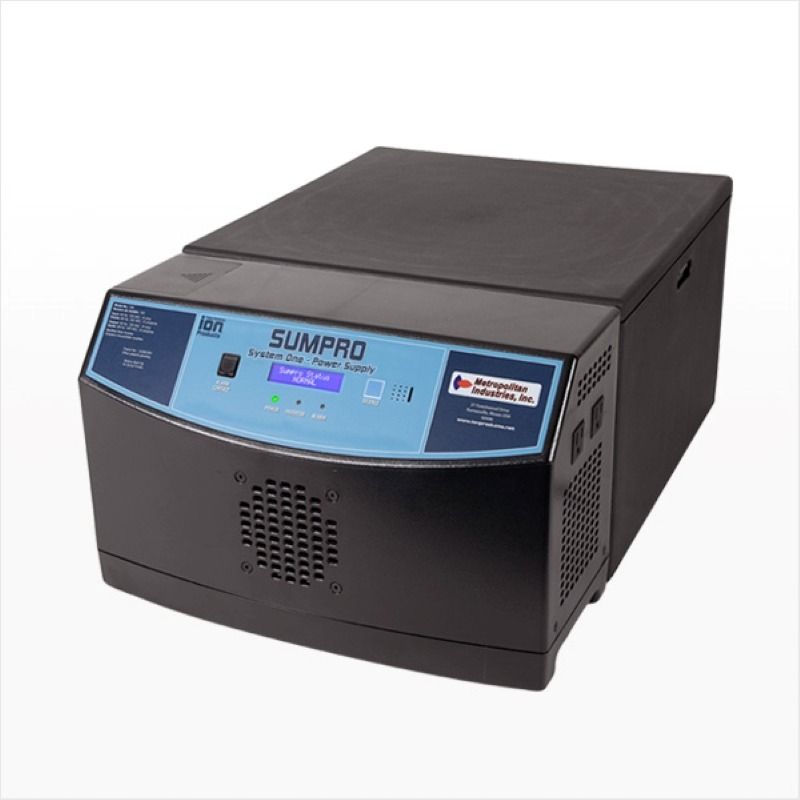

The SumPro Model 100 includes a 15-amp inverter, dual battery box, and fuse bar. It uses two 12-volt AGM batteries, sold separately, and automatically switches to battery-generated AC power when utility power is unavailable.
Product Features:
- 120V AC Backup Power: Provides emergency AC power to a compatible sump or sewage pump during utility power outages.
- Up to 12-Amp Pump Compatibility: Designed to operate compatible 120V sump or sewage pumps rated up to 12 amps, providing flexibility when selecting or using an existing pump.
- 15-Amp Inverter: Converts stored DC battery power into 120V AC power, allowing the connected pump to maintain its normal AC-rated pumping performance during backup operation.
- Two 12V AGM Batteries Required: Uses two 12-volt deep-cycle AGM batteries to create the required 24V DC battery supply. Batteries are sold separately and are not included.
- Automatic Backup & Charging: Automatically switches to battery-generated AC power when utility power is lost and maintains the batteries when normal household power is restored.
Standby AC Power for Sump and Sewage Pumps
The iON SumPro Model 100 provides emergency power for an existing compatible 120V sump or sewage pump. Instead of adding a separate DC backup pump, the SumPro supplies AC power to the connected pump, helping maintain its normal AC-rated pumping performance during a power outage.
The system is designed for residential sump and sewage applications where continued pumping is important during utility power interruptions. The connected pump is sold separately.
Automatic Backup Power Operation

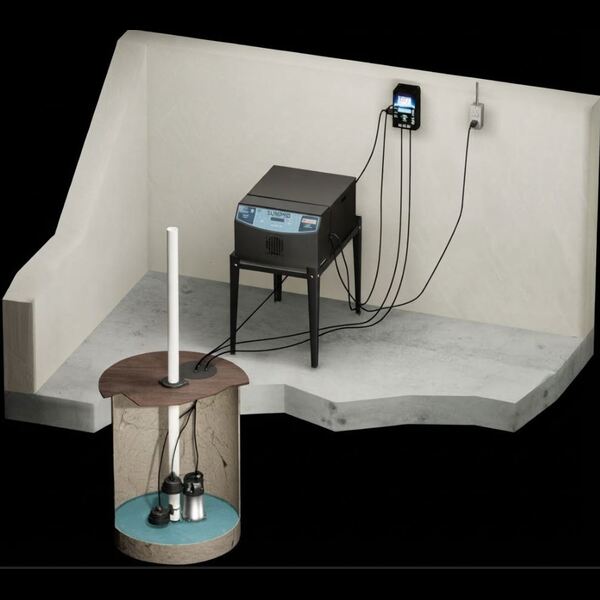

During normal conditions, the connected pump operates from household 120V AC power while the SumPro remains on standby. When utility power is interrupted, the system automatically supplies 120V AC power from the connected battery bank to keep the pump operating.
When household power returns, the system resumes normal utility power operation and maintains the connected batteries for future emergency use.
Compatible Pump Applications
The SumPro Model 100 is designed for compatible 120V sump or sewage pumps rated up to 12 amps. This allows the backup power supply to be paired with a suitable pump based on the application's required flow rate, head, discharge piping, basin dimensions, and pumping requirements.
Because the SumPro supplies 120V AC power rather than operating a dedicated DC backup pump, it provides a flexible way to add emergency power to an existing compatible AC pumping system.
Battery System and Charging
The SumPro uses two 12-volt AGM batteries to create a 24V DC battery supply. The built-in inverter converts the stored DC energy into 120V AC power for the connected pump during an outage.
The required batteries are sold separately and are not included with the SumPro Model 100. iON Technologies recommends Power+ AGM deep-cycle batteries for SumPro applications.
Optional iON Genesis Control and Alarm
The SumPro Model 100 can be paired with the iON Genesis controller and alarm, available separately, for additional pump control, level sensing, high-water alarm functions, and system monitoring.
A SumPro stand and battery add-on kit are also available separately for compatible installation configurations.
Installation and System Sizing
Proper backup power system selection depends on the connected pump's voltage and amperage, required flow rate, total dynamic head, discharge piping, basin dimensions, battery capacity, and expected backup operating time. The SumPro Model 100 provides 120V AC output at up to 12 amps for compatible sump and sewage pumps.
A minimum recommended basin size of 18 inches in diameter by 24 inches deep applies to suitable sump installations. Always verify the connected pump's electrical requirements, battery specifications, inverter capacity, discharge configuration, basin dimensions, and applicable electrical and plumbing codes before installation.
Warranty
The iON SumPro Model 100 includes a 3-year warranty. For proper installation and dependable long-term performance, verify the required pump specifications, electrical supply, battery type and capacity, inverter requirements, basin dimensions, control configuration, and applicable local codes before installation. Refer to the manufacturer's operation manual and installation documentation for complete installation, operation, maintenance, and safety requirements.
Reliable Standby AC Power for Sump & Sewage Pumps
The iON SumPro Model 100 is a one-power-supply battery backup system designed to provide standby AC power for 120V sump and sewage pumps up to 12 amps. The system uses available household power during normal operation and automatically switches to stored battery power when utility power is unavailable, helping maintain pump operation during power outages.
Featuring a built-in 15-amp inverter, dual battery enclosure, and fuse bar, the SumPro Model 100 converts stored DC battery power into 120V AC power for connected pumps. Two 12V deep-cycle AGM batteries are required and sold separately. The system is designed to work with new or existing 120V pumps without requiring pump modifications or plumbing changes.
Why Choose the iON SumPro Model 100?
Reliable Backup AC Power
- Provides standby AC power for any 120V sump or sewage pump rated up to 12 amps.
- Converts stored DC battery power into 120V AC power during utility outages.
- Helps maintain the connected pump's normal AC performance while operating on backup power.
- Designed to provide continued pumping capability when household power is unavailable.
- Uses available household power for normal day-to-day pump operation.
- Automatically switches to battery-powered AC backup when utility power is lost.
- Returns to household power when utility service is restored.
- Helps conserve battery power by reserving backup capacity for power interruptions.
- Includes a built-in 15-amp inverter with status lights.
- Provides 120V AC output with a maximum rated output current of 12 amps.
- Converts 24V DC battery power into standard AC power for compatible pumps.
- Designed to support sump and sewage pump applications without modifying the connected pump.
Dual Battery Backup Capacity
- Includes a dual battery box for two 12V deep-cycle AGM batteries.
- Two 12V AGM batteries are required and sold separately.
- Deep-cycle battery configuration provides stored energy for emergency pump operation.
- Battery system remains available for backup use while the unit operates from household power.
- Designed to work with any compatible 120V sump or sewage pump up to 12 amps.
- Can be paired with new or existing pump installations.
- Provides backup power without requiring modifications to the connected pump or plumbing.
- Optional stand and battery add-on accessories are available.
- 120 VAC/24VDC input supports household and battery power sources.
- 120VAC output supports compatible pumps up to 12 amps.
- Designed for sump pits with a minimum 18-inch diameter and 24-inch depth.
- Backed by a 3-year warranty for added confidence.
