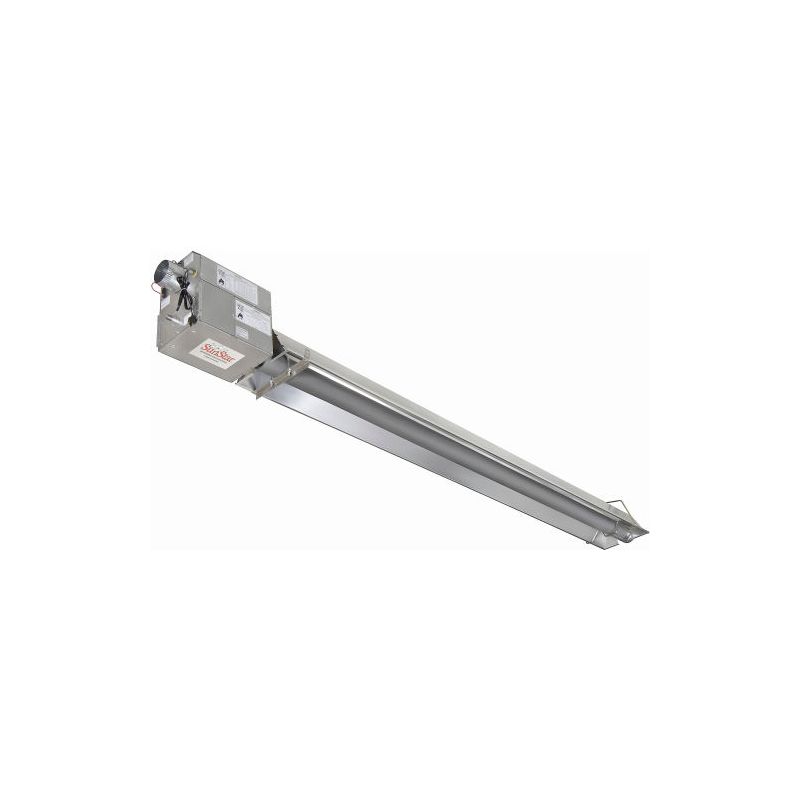

SunStar SPS 125,000BTU Infrared Straight Tube Heater, Single Stage - Propane Gas - 30' Tube Length

SunStar SPS 125,000BTU Infrared Straight Tube Heater, Single Stage - Propane Gas - 30' Tube Length

Name: SunStar SPS 125,000BTU Infrared Straight Tube Heater, Single Stage - Propane Gas - 30' Tube Length
Brand: SunStar
SKU: SPS125
Price: 1728 USD
Availability: InStock

Be the first to review this product

Ships in 5-7 Business Days

Free Shipping

SunStar

In stock

Model

SPS125

130901

$1,728.00

Type

Mounting Brackets

Qty

Description

OVERVIEW

The SPS Positive Pressure Straight Tube - Single Stage heater is a type of industrial heating system that is designed to operate in positive pressure environments and is ideal for complete building heat or spot heating needs. The system consists of straight tubes that are heated by an electric current, which generates heat that is transferred to the surrounding air or gas in the positive pressure environment. This model has a single-stage configuration, which provides efficient heating of the surrounding environment, allowing for precise temperature control.

The SPS Series is typically used in industrial applications such as drying, curing, and sterilizing, where precise temperature control is critical to the quality of the process. It is built to be durable and able to withstand harsh industrial environments. Available in multiple configurations (straight, L, Z, and expanded U-configuration) with lengths up to 70 feet. Ideal for complete building heating.

Reminder: Always observe the minimum recommended mounting heights shown on the specification sheet for the greatest human comfort.

FEATURES

Gas shut-off safety control

Heavy-duty cast iron burner

Direct spark ignition system

Maintenance-free operation

Standard highly emissive radiant tubes

Heat-treated aluminized steel combustion chamber

Product Specs

More Information
SunStar SPS 125,000BTU Infrared Straight Tube Heater, Single Stage - Propane Gas - 30' Tube Length
Feature	Spec
SKU	SPS125
Weight (in lbs)	132.8
Brand/Manufacturer	SunStar
Heating BTU	125,000 BTU
Electrical	120 AC 60Hz, 2.4 Amps
Body Material	Cast Iron/Aluminum
Maximum Inlet Pressure	5"/14" WC Natural Gas, 11"/14" WC Propane
Ignition Type	Direct Spark Ignition
Fuel Type	Propane
Height	6 1/4"
Width	32'
Depth	13"
Warranty	5-year limited warranty on tubes and a 1-year limited warranty on units
Resources	SunStar Installation and Owner's Manual Specs Sheet SunStar Heat Loss Estimating Chart You will need Adobe Acrobat Reader to view PDF documents
Safety Information	This gas appliance requires a trained technician to install. Improperly connecting gas lines or improperly connecting a gas flue or venting may result in death. By purchasing this item, you are agreeing that you are using a trained technician to install this gas appliance. We will not be responsible for any injury or property damage arising from improper service or service procedures. Whoever installs or services this unit assumes responsibility for any personal injury or property damage which may result. Many jurisdictions require a license to install this equipment. PROPOSITION 65 WARNING This product and many products on our site may contain a chemical known to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
