Tankless Water Heater Installation Kit

The EasyFlex EFHC-0124-3Y0124 is a complete tankless water heater connection kit designed to simplify the installation and servicing of compatible tankless water heaters. This 24-inch kit combines the essential gas and water connection components, hot and cold isolation valves, and a pressure relief valve into one convenient package. By providing the major connection components together, the kit helps make tankless water heater installation and maintenance easier for contractors and homeowners.

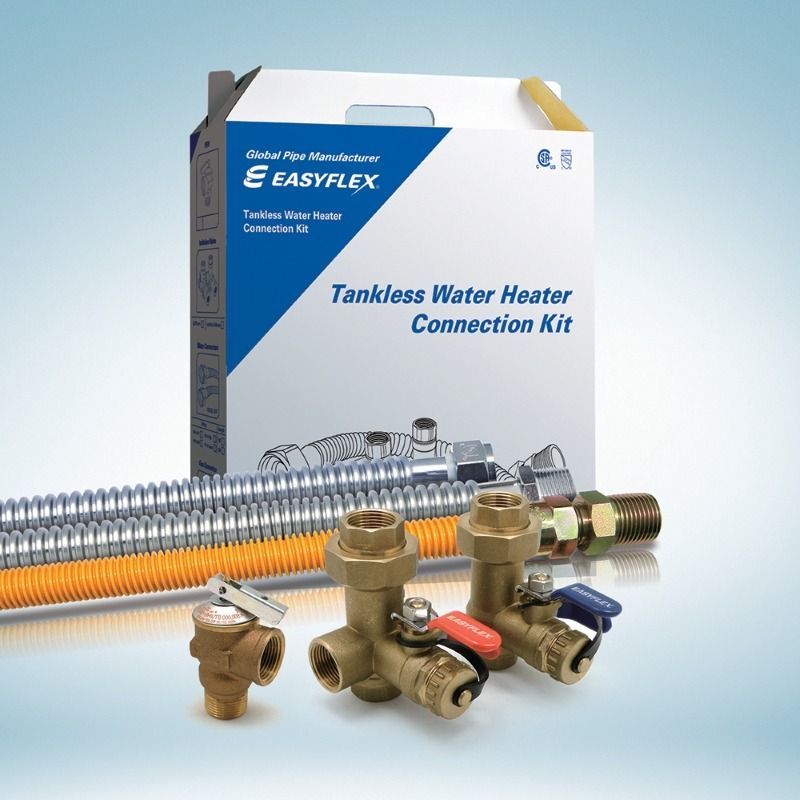

This kit includes a gas connector, two water connectors, hot and cold isolation valves, and a pressure relief valve to aid in water heater installations.

The EFHC-0124-3Y0124 features 24-inch long connectors and is designed as an all-in-one connection solution for compatible tankless water heater installations. The kit includes one gas connector, two water connectors, a hot and cold isolation valve set, and a pressure relief valve.

Product Features:

• 24-Inch Long Connectors: Includes 24-inch long connectors designed to provide convenient connection reach during compatible tankless water heater installations.
• Complete Connection Kit: Combines the primary gas and water connection components, isolation valves, and pressure relief valve into one convenient package.
• Gas Connector: Includes one 1-inch OD, 3/4-inch M x F gas connector as specified by the manufacturer.
• Two Water Connectors: Includes two 3/4-inch ID, 3/4-inch FIP x 3/4-inch MIP water connectors for tankless water heater water connections.
• Hot & Cold Isolation Valve Set: Includes isolation valves for the hot and cold water connections, helping simplify servicing and maintenance of the connected water heater.
• Pressure Relief Valve: Includes a pressure relief valve as part of the complete connection kit.
• EasyFlex Tankless Water Heater Connection Kit: Designed as a customized connection kit for compatible tankless water heater installations.
• Installation Convenience: Combines multiple required connection components into one package, helping reduce the need to source individual components separately.
• Compact Package: The individual unit measures approximately 16 inches wide by 19 inches high by 3.75 inches deep.
• 7-Pound Unit Weight: The packaged unit has a listed weight of approximately 7 pounds.
• UPC: The unit is identified by UPC/SCC 0883882104666.

What Is a Tankless Water Heater Connection Kit?

A tankless water heater connection kit provides the plumbing and connection components needed to connect a compatible tankless water heater to the building's gas and water systems. Instead of purchasing each connection component individually, a complete kit packages the major components together for installation convenience.

The EasyFlex EFHC-0124-3Y0124 is specifically configured with 24-inch long connectors and includes the gas connector, water connectors, hot and cold isolation valve set, and pressure relief valve in one package.

Kit Components

The EFHC-0124-3Y0124 includes one gas connector, two water connectors, a hot and cold isolation valve set, and a pressure relief valve. The manufacturer describes the kit as a complete package intended to make tankless water heater installation and maintenance easier.

The gas connection component is specified as a 1-inch OD, 3/4-inch M x F gas connector. The kit also includes two 3/4-inch ID, 3/4-inch FIP x 3/4-inch MIP water connectors.

24-Inch Connector Configuration

The EFHC-0124-3Y0124 is the 24-inch version of the EasyFlex tankless water heater connection kit. The manufacturer catalog identifies this model as a Tankless Water Heater Isolation Valve Set + 24-inch Long Connectors.

For comparison, the EasyFlex product family also includes an 18-inch connector configuration. The EFHC-0124-3Y0124 specifically identifies the longer 24-inch connector configuration.

Hot & Cold Isolation Valves

The kit includes a hot and cold isolation valve set. Isolation valves can help simplify service procedures by allowing the connected water heater to be isolated from the water supply during appropriate maintenance operations.

Proper installation and operation of the isolation valves should follow the tankless water heater manufacturer's installation instructions and applicable plumbing requirements.

Pressure Relief Valve

A pressure relief valve is included as part of the EFHC-0124-3Y0124 connection kit. The pressure relief component is supplied as part of the complete kit rather than requiring the installer to source this component separately.

The pressure relief valve must be installed and used according to the applicable tankless water heater manufacturer's instructions, plumbing codes, and safety requirements.

Installation Convenience

The EFHC-0124-3Y0124 is designed to provide several important connection components in a single package. This can help simplify the installation process by reducing the number of individual components that need to be sourced separately.

The complete kit includes the gas connection, water connections, hot and cold isolation valves, and pressure relief valve required for compatible applications.

Product Dimensions

The listed unit dimensions for the EFHC-0124-3Y0124 are approximately 16 inches wide × 19 inches high × 3.75 inches deep. The listed unit weight is approximately 7 pounds.

These measurements refer to the listed product/unit dimensions and should not be interpreted as required installation clearances. Always verify available space, connection orientation, service access, and clearance requirements against the tankless water heater manufacturer's installation documentation.

Product Identification

The model number for this tankless water heater connection kit is EFHC-0124-3Y0124. The listed UPC/SCC for the unit is 0883882104666.

The product is identified as an EasyFlex Tankless Water Heater Connection Kit and is associated with DiversiTech's EasyFlex product line.

Application

The EFHC-0124-3Y0124 is intended for use with compatible tankless water heater installations where the included gas connector, water connectors, isolation valves, and pressure relief valve meet the requirements of the specific water heater and installation.

Before installation, verify connector sizes, connection types, water heater requirements, local plumbing and fuel-gas codes, and the manufacturer's installation instructions. Components should only be used in applications for which they are approved and compatible.

Installation & Safety

Proper installation is essential for safe and reliable operation. Always follow the tankless water heater manufacturer's installation instructions and applicable local plumbing, fuel-gas, and safety codes when installing the EFHC-0124-3Y0124.

Verify all gas and water connection requirements before installation. Gas connections must be installed and tested according to applicable fuel-gas requirements, while water connections and the pressure relief valve must be installed according to the water heater manufacturer's requirements.

The installer should verify that the supplied components are compatible with the specific tankless water heater before installation. Do not modify the supplied components unless specifically permitted by the applicable manufacturer documentation.

Product Specifications

• Model: EFHC-0124-3Y0124
• Product Type: Tankless Water Heater Connection Kit
• Configuration: Isolation Valve Set + 24-Inch Long Connectors
• Gas Connector: 1-inch OD, 3/4-inch M x F
• Water Connectors: Two 3/4-inch ID, 3/4-inch FIP x 3/4-inch MIP
• Isolation Valves: Hot & Cold Isolation Valve Set
• Pressure Relief Valve: Included
• Unit Width: 16 inches
• Unit Height: 19 inches
• Unit Depth: 3.75 inches
• Unit Weight: 7 pounds
• UPC/SCC: 0883882104666
• Country of Origin: China
• HS Code: 8307.10.3000

Note: Product specifications, compatibility, and installation requirements should always be verified against the current manufacturer documentation and the installation requirements of the specific tankless water heater being connected.
