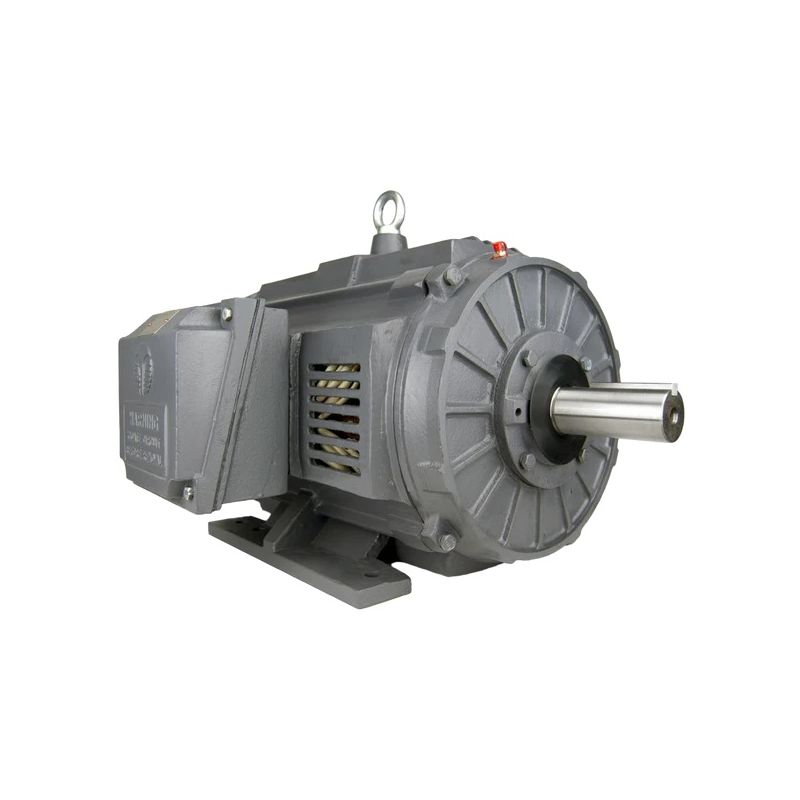

TechTop NEMA Premium Rolled Steel ODP 1800 RPM 10 HP 215TC

Techtop Rolled Steel Open Drip-proof motors are well built with many features not found on other motors. They are NEMA Premium rated for efficiency, and compliant for use with variable frequency drives (VFDs). The terminal box can be rotated 90-degrees. A service factor of 1.25 along with VPI tropicalization winding makes these motors an excellent value.

Features

• NEMA Premium Efficiency
• MG1 Part 31 Inverter Rated 15:1 Constant Torque
• IP 23 Rated 40°C Ambient
• Double-Lip Oil Seals on Both Ends
• 1.25 SF up to 50 HP, 1.15 on larger
• VPI Winding with Tropicalization Protection
• 1045 Steel Shaft through 326T, 4140 on 360T and up
• Zerk Regreasable Bearigns on Frames 254T and larger
• Nipple Seals between Conduit Box and Body
• Rubber Slinger
• Conduit Box 90° rotatable
• Class H Insulation with Class F Stator
• C Flanges Available
• 36 Month Warranty from Date of Purchase
