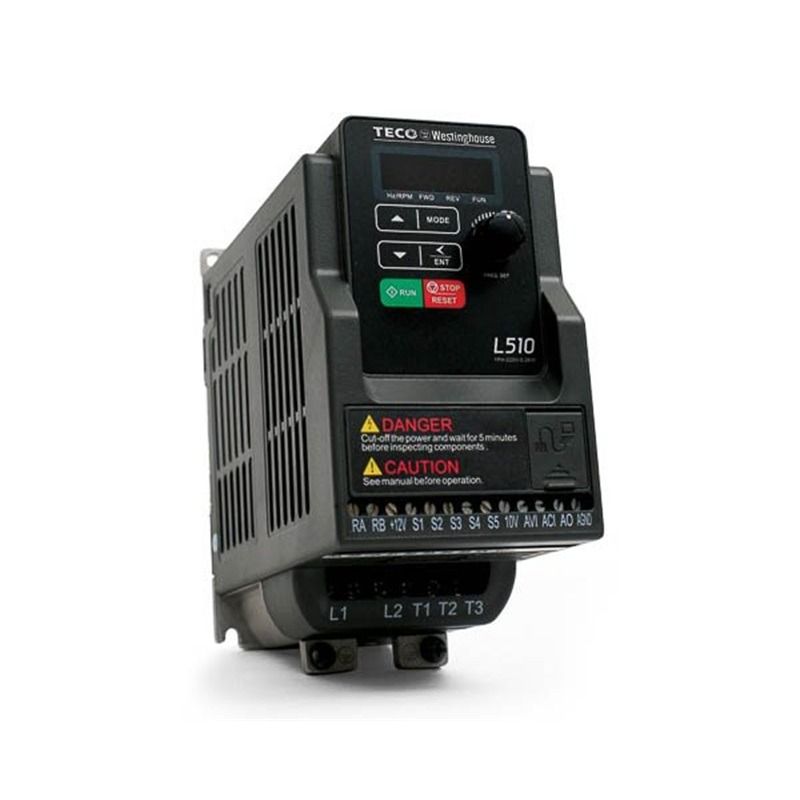

TECO Westinghouse L510 Advanced Micro Drive Controller, 1HP 230V 3 Phase

OVERVIEW

The Teco Westinghouse L510 Variable Frequency Drive (VFD) is a compact and cost-effective solution that provides precise motor control for light to medium-duty applications. Ideal for OEM equipment, small machinery, and HVAC systems, it offers reliable performance with simple, user-friendly programming. Designed as a micro AC drive, the L510 supports motors from 1/4 HP to 3 HP across 115V, 230V, and 460V configurations, making it highly versatile. With sensorless vector and V/Hz control modes, it delivers smooth acceleration, stable torque, and consistent speed even under changing load conditions.

For variable speed control using a VFD, the fan must be configured as a 3-phase motor. You have flexibility with your power source:

• The VFD can accept either single-phase or three-phase input power
• It will then output three-phase power to the fan

Important: Even if you are using single-phase power at your location, you can still operate the fan—this VFD converts single-phase input to three-phase output

Key Features

• Compact Micro Drive Design: Space-saving IP20 chassis ideal for control panels and OEM applications.
• Wide Power Range (1/4 HP to 3 HP): Supports multiple motor sizes and voltage configurations for flexible applications.
• Sensorless Vector & V/Hz Control: Provides smooth motor operation, stable torque, and precise speed control.
• Built-In PID Control: Enables accurate control of pressure, flow, or temperature without external controllers.
• 8 Preset Speeds: Allows quick selection of predefined operating speeds for different process needs.
• Integrated Modbus & BACnet Communication: Easily connects to building automation and control systems via RJ45 interface.
• Advanced Diagnostics & Monitoring: Provides real-time system feedback for easier troubleshooting and maintenance.
• Flexible I/O Configuration: Includes multiple analog inputs and outputs for enhanced system control and customization.
