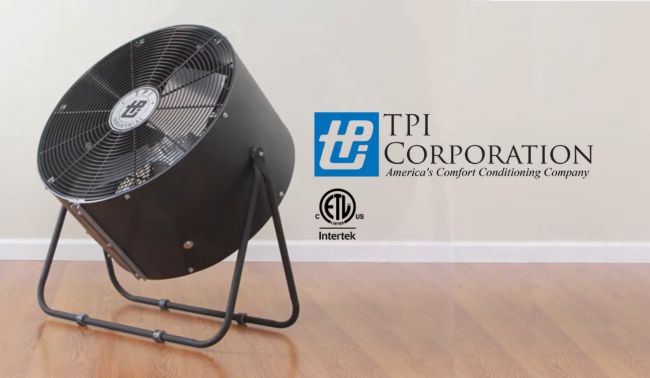

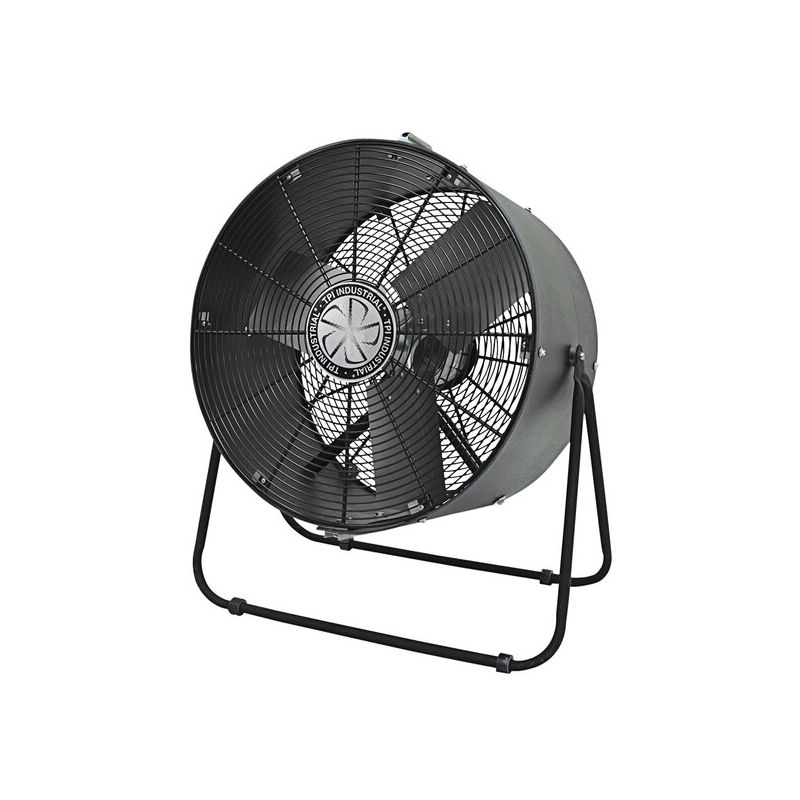

TPI 24" Mini-Blower W/ 1/4 HP 120V 2 Speed Motor Floor Style - MB24DF

By

TPI

In stock
Model

MB24DF

ID

137994

Was $963.00 Your Low Price Special Price $616.32

Ships in 3-5 Business Days
Product Features
  • Totally Enclosed, Ball-Bearing Motor
  • Corrosion- & Dent-Proof HDPE Housing
  • Two Speed Control Options
  • Compact & Portable Design

OVERVIEW

Whether you need to cool down a room, dry out a wet area, or improve air circulation, the TPI MB24DF is a reliable and efficient solution. The TPI MB24DF is a 24-inch mini-blower with a powerful 1/4 HP, 120V 2-speed motor. Designed in a floor style, this compact blower is ideal for creating airflow in various indoor spaces. With its two-speed motor, users can easily adjust the airflow to suit their needs. It's perfect for improving air circulation, ventilation, or drying applications. Its durable construction and compact size make it portable and easy to store.

Key Features

  • 24-inch mini-blower with floor style design
  • Powerful 1/4 HP, 120V 2-speed motor
  • Two-speed motor allows for easy airflow adjustment
  • Ideal for improving air circulation, ventilation, or drying applications
  • Durable construction for long-lasting use
  • Compact size for portability and easy storage

Warranty Information

TPI Corporation provides a limited warranty covering defects in materials and workmanship for a period of twelve (12) months from the original date of purchase.

This warranty applies only to materials manufactured and work performed by TPI Corporation. It does not cover damage or failure resulting from:

  • Acts of God
  • Abuse, misuse, or abnormal usage
  • Connection to or use with incorrect voltage
  • Faulty installation
  • Failure to follow included maintenance procedures
  • Improper maintenance
  • Repairs performed by anyone other than an authorized TPI Corporation service center

This warranty does not obligate TPI Corporation to cover labor costs for replacing any assembly, unit, or component. In addition, TPI Corporation does not assume liability for secondary expenses, including installation or removal costs, freight, or damages.

All warranty claims must include valid proof of purchase showing the purchase date.


Durable Materials & Construction

The TPI MB Series Mini Blowers are built to deliver reliable performance in industrial settings while withstanding tough conditions. Their housings are constructed from corrosion- and dent-proof high-density polyethylene (HDPE), making them lightweight yet resilient to impact and harsh environments. These fans are built to deliver reliable performance in industrial settings while withstanding tough conditions. Their housings are constructed from corrosion- and dent-proof high-density polyethylene (HDPE), making them lightweight yet resilient to impact and harsh environments.The motor features a totally enclosed, permanently lubricated ball-bearing design, rated for continuous duty and built to withstand dust, grime, and variable usage. Because of this construction and the material choices, MB blowers perform reliably over time in demanding work zones.

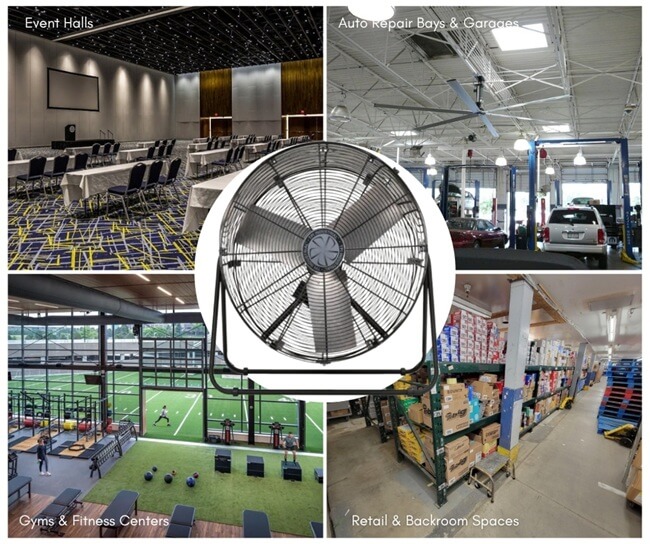

Suitable Applications for TPI MB Series Mini-Blowers

  • Machine shops and fabrication areas: Provide directed airflow to cool tools, workpieces, and operators.
  • Warehouses and storage zones: Help reduce temperature stratification and improve general circulation.
  • Auto repair and body shops: Vent vehicle bays, direct airflow to hot spots, and assist in drying paints.
  • Event venues and temporary spaces: Portable blower use in large halls, tents, or rooms during gatherings.
  • Manufacturing and assembly lines: Aid in cooling production zones or clearing dust and fumes.
  • Loading docks and shipping areas: Vent air through open dock doors, reducing stagnant zones.
  • Water damage and restoration works: Act as air movers to aid drying of walls, floors, and enclosed areas.
More Information
TPI 24" Mini-Blower W/ 1/4 HP 120V 2 Speed Motor Floor Style - MB24DF
FeatureSpec
SKUMB24DF
Weight (in lbs)52.000000
Brand/ManufacturerTPI
Housing Material / FinishPolyethylene
Drive TypeDirect
Maximum CFM5,200 CFM
Propeller Diameter24 inches
Motor RPM1,140 RPM
Horsepower1/4 HP
Speed2 Speed
Electrical120V
PhaseSingle Phase
Amperage Requirement1.8 A
StyleFloor Style
MaterialAluminum
ColorBlack
Height29.5 inches
Width28.5 inches
Depth14.25 inches
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Write Your Own Review
You're reviewing:TPI 24" Mini-Blower W/ 1/4 HP 120V 2 Speed Motor Floor Style - MB24DF
Your Rating
Customer Questions
How long is the power cord for this mini blower?
It comes with a 10-foot power cord, giving you plenty of reach to place it where you need without being stuck right next to an outlet.
Can this mini-blower be mounted to a wall or ceiling?
This model is made for floor use only and isn’t designed to be mounted. If you need a mountable option, some of our other MB models (yoke style) can be bolted down or installed with optional wall or ceiling mounts. If you have any questions, we’re happy to help!
Does this MB fan have a speed controller?
The mini-blower comes with a built-in 2-speed switch (High and Low). External speed controllers or variable drives aren’t recommended, as they may affect performance or void the warranty.
Will the blower shake or wobble while running?
It’s built to run smoothly, but a little vibration is normal with powerful fans. Just keep it on a level surface, make sure the screws are tight, and clean the blades regularly to keep it steady.
Can I leave this fan running all day?
Yes! This fan is made for continuous use in workshops, warehouses, and other busy spaces. Just make sure it’s kept clean, well-ventilated, and not blocked by debris.
