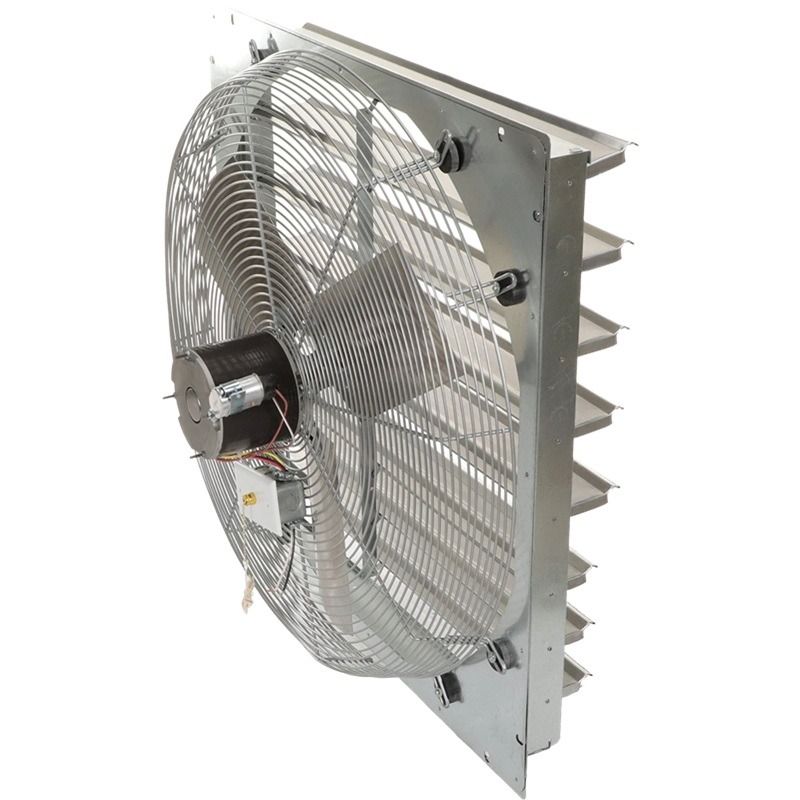

TPI 30" 2 Speed Direct Drive Exhaust Shutter Mounted Fan 1/4 HP

OVERVIEW

Improve air quality in your industrial or commercial establishment with this TPI 30" 2-speed shutter-mounted direct drive exhaust fan CE30DS! This high-speed fan quietly operates to provide ventilation and improve airflow in your facility, and it installs from inside the wall without the need for external framing or shutters. It features 2 speed settings and a powerful 1/4 hp motor, allowing it to reach up to 3950 CFM on the highest setting. Plus, the lower setting provides extra versatility to ensure the fan meets a variety of needs and preferences. To easily switch between speed settings, it has a pull chain for simple operation.

This rugged fan includes a durable 30" aluminum blade protected by steel spiral wire guards for optimal safety. The split capacitor motor is completely enclosed, and it features a permanently lubricated ball bearing to ensure low-maintenance use and to prevent overheating. This unit requires a 120V, 1 phase electrical connection. It must be hardwired; it includes a no-cord junction box enclosure for direct wiring.

Key Features:

• 120-volt, single phase, totally enclosed, permanently lubricated
• 1/4 HP motor is single-phase, 2-speed ball-bearing permanent split capacitor.
• Can be installed from inside the wall
• Eliminates need for external framing and shutter
• No cord-junction box provided for direct wiring
• CFM / RPM: 3950/1140 high, 3080/1070 low

Warranty

All TPI Corporation products are warranted to the original purchaser to be free from defects in materials and workmanship for twelve (12) months from the date of purchase. This warranty does not cover damage caused by misuse, abuse, improper installation, unauthorized modifications or repairs, abnormal usage, acts of God, or operation on incorrect voltage. Products must be maintained according to the provided guidelines, and any repairs must be performed by an authorized TPI service center.

TPI Corporation assumes no responsibility for consequential or indirect damages, including property loss, lost revenue or profits, or costs related to removal, installation, or reinstallation. All implied warranties, including those of merchantability and fitness for a particular purpose, are limited to twelve (12) months, unless the product or specific components carry an extended warranty. In such cases, implied warranties are valid only for the duration of that extended coverage.

---

Durable Materials & Construction

The TPI Shutter-Mounted Direct-Drive Exhaust Fan is engineered for heavy-duty ventilation needs with a strong focus on durability and performance. Its housing is constructed from heavy-gauge galvanized steel, providing superior resistance to rust, corrosion, and everyday wear, making it ideal for both commercial and industrial applications. The precision-balanced aluminum blades are designed to deliver high-volume airflow while minimizing noise and vibration, ensuring smooth and efficient operation over extended periods. Automatic aluminum shutters open effortlessly during use and close tightly when the fan is off, preventing backdrafts, rain, and debris from entering the space. For added reliability, the motor is fully enclosed and thermally protected, safeguarding it from dust, moisture, and overheating.

---

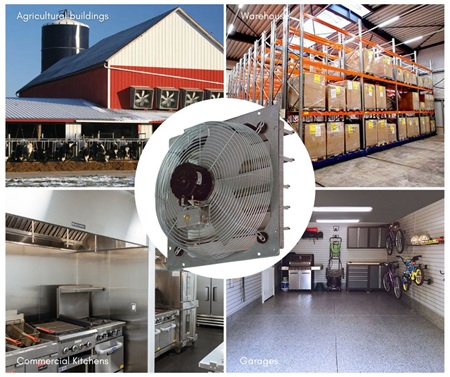

Suitable Applications for TPI Shutter-Mounted Exhaust Fans

The TPI Exhaust Fans are designed for a wide range of air movement needs, making it an excellent choice for:

• Warehouses and storage facilities needing consistent airflow
• Commercial kitchens and food prep areas to remove heat and odors
• Agricultural barns, livestock buildings, and greenhouses for proper climate control
• Industrial workshops and manufacturing plants requiring ventilation
• Garages, auto shops, and service bays to manage fumes and dust
• Fitness centers, recreational halls, and large gathering spaces for fresh air circulation
• Paint shops and hobby areas safely vent fumes and improve air circulation in smaller industrial/residential settings
