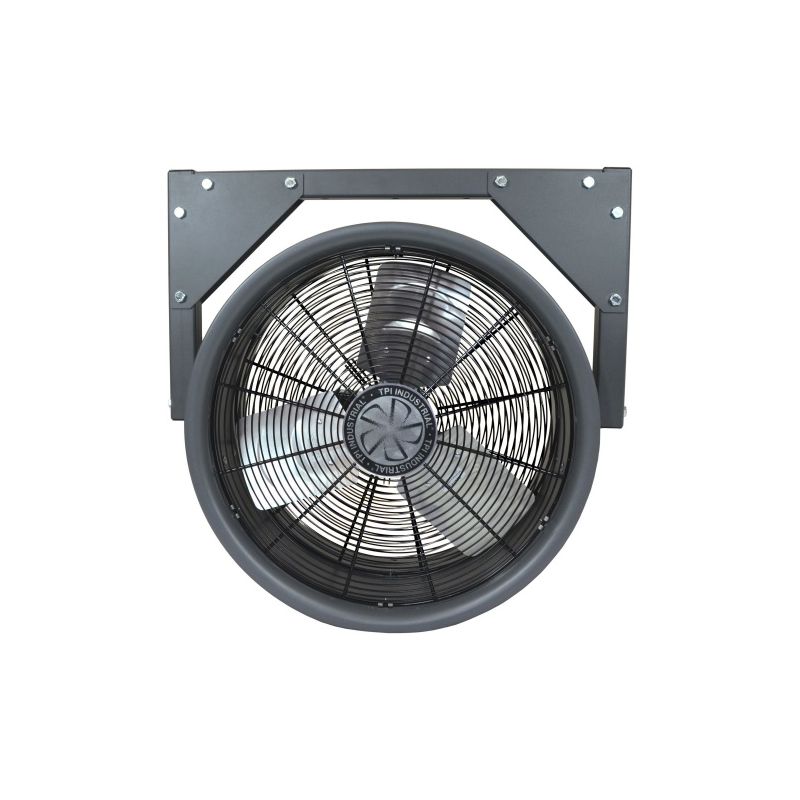

TPI 30" High Velocity Blower Direct Drive 1 HP 14250 CFM 277V 1 PH - HV30277V

These heavy duty blower fans are designed to provide powerful cooling that's easy to move where you need it. Durable square fan housing is made of 18 gauge galvanized steel with 20 gauge powder coated venturi to promote long lasting, efficient cooling at high velocity. 4 steel fan blades are powered by a powerful 120V, single-phase ball bearing belt drive motor that is permanently lubricated and drip-proof for virtually no maintenance. Fan blades are enclosed within front and rear powder coated wire guards for safety. Tubular steel handle and two 4" casters allow easy portability. 12'L, 3-conductor SJT power cord. UL listed. Meets OSHA standards. Horsepower rating based upon maximum speed/load.

Features

• Housing designed for all types of air circulating applications to provide directional – high velocity air flow.
• 20-gauge all steel construction housing with gray epoxy powder coated finish
• Front & rear spiral wound grills are OSHA approved and have a black powder coated finish
• Heavy-duty yoke mounting bracket design with 2” square steel tubing frame
• Direct drive Totally Enclosed Air-Over (TEAO) motor generating up to 9,000-CFM’s
• Single speed, ball bearing, with split capacitor, permanently lubricated, TEAO motor operates on 60HZ and 1725-RPMs, and requires hard-wired connection to the supplied electrical enclosure located on the motor housing
• TEAO motor has a Class B rating, with automatic thermal protection and ball bearing design for harsh environments; rated up to 115°F max. ambient temperature
• Aluminum 3-paddle blade system with steel hub and cast aluminum spider connections
• Built-in rotating design allows the supplied mounting bracket to pivot 120° in (9) adjustment settings at 15° variations
• Non-Oscillating fan heads offered 18”, 24” & 30” diameter sizes
• Single and three phase options available in 120, 277 & 480-Volt
• 2-year motor warranty
