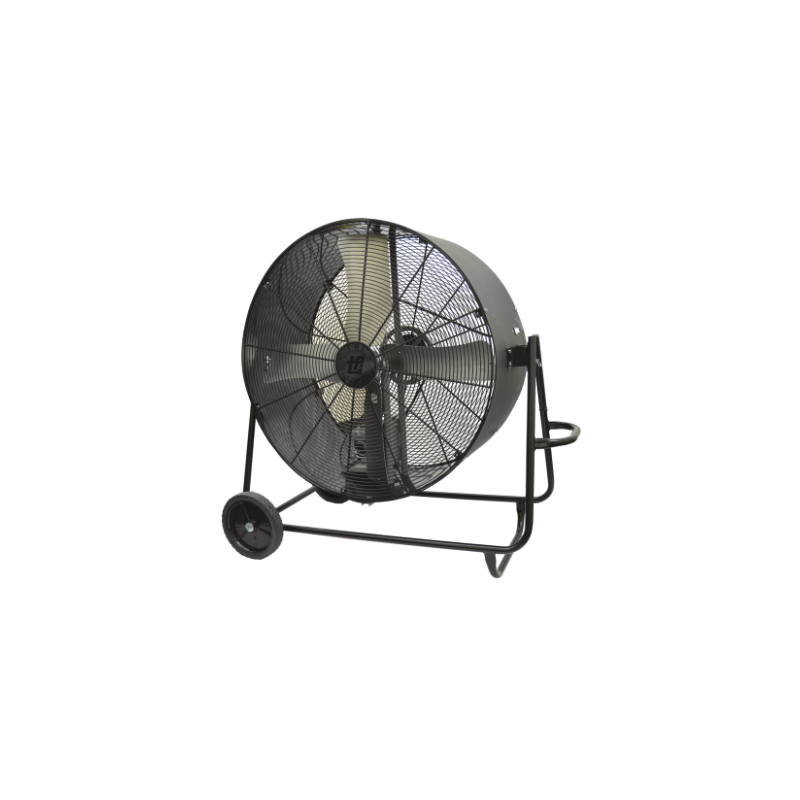

TPI 36" Swivel Belt Drive Portable Blower 1/2 HP 240/480V 3 PH ODP - PBS36B3

By

TPI

Model

PBS36B3

ID

137466

Availability: Ships in 3-5 Business Days

Authorized TPI Dealer

Suggested Retail $2,637.00 Your Low Price Special Price $1,687.68

Free Shipping
Accessories for this product
Call 1-800-397-1392 for Best Pricing
Customer Reviews
BBB Rating
Best Pricing

Description

Maintain a comfortable work environment by cooling down your facility with this tilt head belt drive industrial drum fan. This fan features a large 36" diameter fan head that creates a cooling area that's perfect for warehouses, schools, offices, and other large spaces. The swivel design tilts 130 degrees for added versatility. With 1 speed setting and a powerful 1/2 hp belt drive motor, it reaches 14,000 CFM to easily cool any space. The belt drive design produces less noise at a more economical price point than other types of motors.

Features

  • One-speed, ball bearing, permanently lubricated
  • Spiral wire front and rear guard
  • Steel blades
  • Corrosion and dent proof, high density polyethylene housing
  • Rotates 360° in 12.5° increments
  • Locks in place with a steel locking pin
  • 10" hard rubber wheels
  • External junction boxes on dual voltage models allow units to be wired for either voltage without removing guards

Made of corrosion- and dent-proof high density polyethylene housing, this fan provides industrial-grade durability to last for years in your warehouse, office, or classroom. It's even great for back-of-house foodservice applications. It also includes OSHA-compliant wire front and back guards to prevent injury from the whirling blades. This fan is designed for optimal cooling and reliability to help you remain comfortable on even the hottest day of the year. It even features side handles and 8" wheels for portability. A 240/480V electrical connection is required for operation.

Additional Information

  • Rocker switch on 120V, Single Phase models
  • SJT type 3 conductor, 12' long cord on 120V, Single Phase models / no cord on dual voltage models
  • Aluminum, 4 paddle blade (48" PB / PBS have steel blade)
  • Spiral, wire front and rear guards
  • Corrosion and dent proof high-density polyethylene housing
  • 8" wheels
  • Swivel model rotates 130° in 12 1/2° increments and locks in place with a steel locking pin

Product Specifications

More Information
TPI 36" Swivel Belt Drive Portable Blower 1/2 HP 240/480V 3 PH ODP - PBS36B3
SKUPBS36B3
Weight (in lbs)152.000000
Brand/ManufacturerTPI
Housing Material / FinishPowder Coated Steel
Drive TypeBelt
Maximum CFM12,000-15,000
Motor RPM500
Horsepower1/2 HP
Horsepower.5 HP
Speed1-Speed
Electrical240 / 480V
PhaseThree Phase
Amperage Requirement2.3 A, 1.1 A
Style Tilt Head
MaterialPolyethylene
ColorBlack
Size Range38" Wide & Up
Diameter36 Inches
Warranty1 Year
ResourcesManufacturer Spec Sheet
Safety InformationPROPOSITION 65 WARNING
