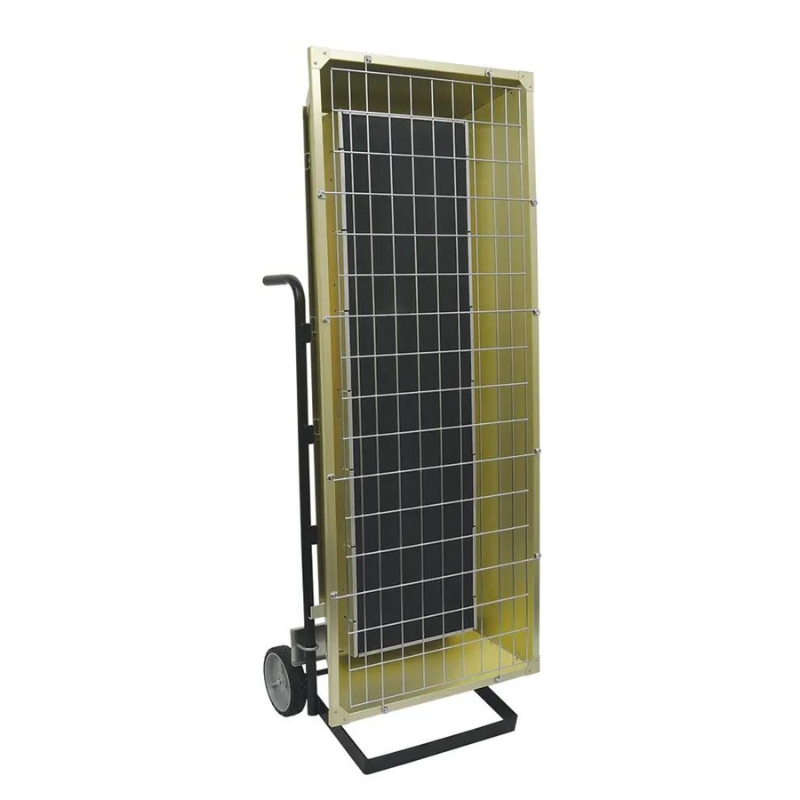

TPI 9.50 KW Portable Infrared Flat Panel Emitter | 480V

Direct Heat Transfer 32,414 BTU Heavy-Duty Portable Infrared Electric Heater for Industrial & Commercial Applications with Targeted Radiant Heating

The TPI Corporation FSP-9548-3 is a heavy-duty portable infrared electric heater designed to provide targeted radiant heat for industrial workstations, manufacturing facilities, maintenance areas, workshops, and other suitable commercial and industrial environments. Delivering 9,500 W of heating power at 480 V, this portable heater produces approximately 32,414 BTU/h using a flat-panel infrared emitter that transfers heat directly to people and objects within its radiation pattern. Its gold-anodized aluminum housing provides reflectivity and corrosion resistance, while the heavy-duty wire guard helps protect the heating element and personnel. The portable steel handcart with 6-inch wheels facilitates transportation between suitable work areas. The FSP-9548-3 supports compatible 480 V single-phase or three-phase electrical configurations, providing flexibility for appropriate industrial installations.

Key Benefits

• 32,414 BTU/h Heating Output – Provides high-output radiant heat for targeted supplemental heating in suitable industrial and commercial applications.
• 9,500 W Electrical Heating Capacity – Delivers substantial radiant heating performance from a compatible 480 V electrical supply.
• Flat-Panel Infrared Emitter – Transfers radiant energy directly to people and objects within the intended heating zone.
• 78.5% Published Radiant Efficiency – Supports effective radiant energy transfer through the flat-panel emitter design.
• 60-Degree Symmetric Heat Pattern – Directs radiant energy into a defined area for localized heating applications.
• Gold-Anodized Aluminum Housing – Provides reflective properties and corrosion resistance for demanding service environments.
• Heavy-Duty Wire Guard – Helps protect the heating element and personnel from direct contact with the emitter.
• Portable Steel Handcart – Features 6-inch wheels to facilitate transportation between suitable work locations.
• Single- or Three-Phase Compatibility – Supports compatible 480 V electrical installations when wired according to the manufacturer's instructions.
• Replaceable Infrared Heating Element – Supports serviceability through manufacturer-approved replacement components.

32,414 BTU/h Radiant Heating Performance

The TPI Corporation FSP-9548-3 provides 9,500 W of electrical heating power, equivalent to approximately 32,414 BTU/h. Its infrared heating system transfers thermal energy through radiation, warming people and objects within the effective heating pattern rather than relying exclusively on heating the surrounding air. This makes the heater suitable for localized supplemental heating where warmth is required at a designated workstation or industrial work area. Actual heating performance depends on the distance between the heater and the target, ambient temperature, surrounding surfaces, air movement, and other environmental conditions. Position the heater according to the manufacturer's instructions to achieve suitable radiant coverage while maintaining the required safety clearances.

Flat-Panel Infrared Heating Technology

The TPI Corporation FSP-9548-3 uses a flat-panel infrared emitter designed for heavy-duty radiant heating applications. TPI Corporation's FSP Series documentation specifies a published radiant efficiency of 78.5% and a symmetric 60-degree heat pattern for the series. The emitter transfers radiant energy to objects and people within the intended heating zone. Its gold-anodized aluminum housing supports reflectivity and corrosion resistance, while the heavy-duty wire guard helps protect the element and personnel. This electric radiant heating design does not require an onsite fuel supply, combustion burner, or combustion exhaust system. Follow the manufacturer's installation and operating instructions, including specified clearances and electrical connection requirements.

Targeted Radiant Heat Distribution

The FSP-9548-3 uses its flat-panel emitter and reflective housing to direct radiant energy toward the intended work area. Its 60-degree symmetric heat pattern supports localized heating without requiring fan-forced air circulation. This configuration is useful for industrial workstations, maintenance tasks, and other applications where heat is required in a defined area. Because the unit uses radiant rather than forced-air heating, an airflow rating in cubic feet per minute (CFM) is not applicable. Position the heater to provide suitable radiant coverage, avoid obstructing the emitter, and maintain the manufacturer's required clearances from combustible materials and other objects.

Portable Construction & Flexible Placement

The TPI Corporation FSP-9548-3 features a gold-anodized aluminum housing and a heavy-duty wire guard surrounding the infrared emitter. The heater is mounted on a steel handcart equipped with 6-inch wheels to facilitate transportation between suitable job-site and industrial locations. TPI Corporation's published FSP-95 series specifications list an approximate weight of 46 lb and overall dimensions of approximately 17.5 inches by 20 inches by 53 inches. The cart-mounted design supports repositioning as heating requirements change. Place the heater on a stable surface, maintain the manufacturer's specified clearances, and allow the unit to cool completely before moving or handling it.

Electrical Power & Energy Consumption

The TPI Corporation FSP-9548-3 operates on a 480 V electrical supply and is rated at 9,500 W. TPI Corporation's published specifications identify current ratings of approximately 19.79 A for single-phase operation and 11.44 A for three-phase operation. The manufacturer's supply-wire specifications identify a 10 AWG, three-conductor SO-type cable for single-phase operation and a 12 AWG, four-conductor SO-type cable for three-phase operation. The corresponding manufacturer-listed plug configurations are 30 A, 480 V, three-wire for single-phase operation and 20 A, 480 V, four-wire for three-phase operation. Verify the unit nameplate, phase configuration, frequency, circuit capacity, overcurrent protection, grounding requirements, conductor sizing, and connection method before installation. Do not assume that a standard household plug or receptacle is suitable for this high-output industrial heater. Electrical installation must comply with the manufacturer's wiring instructions and applicable electrical codes.

Radiant Comfort & Heating Control

The TPI Corporation FSP-9548-3 provides radiant heat while energized and correctly positioned toward the intended heating area. Its flat-panel emitter directs thermal energy toward people and objects within the radiation pattern, supporting localized heating without a fan or fuel-burning system. An integrated adjustable thermostat, digital temperature display, timer, or remote control is not confirmed as standard equipment for this model in the manufacturer's published documentation. If external controls are required, verify their compatibility with the heater's electrical ratings and intended application with TPI Corporation before ordering or installation.

Industrial, Manufacturing & Commercial Applications

The TPI Corporation FSP-9548-3 is intended for suitable industrial and commercial applications requiring localized electric radiant heat. Potential applications include manufacturing workstations, maintenance areas, workshops, assembly areas, and other environments where targeted heating is appropriate. Its 9,500 W heating capacity provides approximately 32,414 BTU/h of radiant output, while the portable handcart supports movement between suitable work areas. The electric heating design eliminates the need for onsite fuel storage or a combustion exhaust system. Before selecting the heater, confirm that the intended application, electrical supply, environmental conditions, placement arrangement, and required clearances meet the manufacturer's specifications and applicable safety regulations.

Mobility & Deployment

The FSP-9548-3 features a steel handcart with 6-inch wheels designed to facilitate transportation to suitable job-site locations. This portable configuration supports repositioning as heating requirements change. Move the heater only when it is switched off, disconnected from electrical power, and sufficiently cool to handle. Protect the electrical connection from mechanical damage during transportation and deployment. When operating, position the unit on a stable surface, orient the emitter toward the intended heating zone, and maintain the manufacturer's specified clearances from combustible materials and other obstructions.

Safety, Service & Maintenance

The TPI Corporation FSP-9548-3 incorporates a heavy-duty wire guard designed to help protect the heating element and personnel. Its gold-anodized aluminum housing provides reflectivity and corrosion resistance, while the steel handcart supports portable deployment. Regularly inspect the emitter, wire guard, housing, cart, wheels, electrical connections, and supply wiring for damage or wear. Keep the heating element and surrounding components clean according to the manufacturer's maintenance instructions. Disconnect electrical power and allow the heater to cool completely before cleaning, inspecting, or servicing the unit. Do not operate the heater with a damaged electrical connection, compromised wire guard, or damaged heating element. Maintain required clearances and never bypass safety provisions. Electrical repairs and replacement of heating components must be performed by appropriately qualified personnel using manufacturer-approved parts.

Warranty

Warranty coverage for the TPI Corporation FSP-9548-3 is subject to the manufacturer's applicable written warranty terms. Refer to TPI Corporation's current warranty documentation for the coverage period, covered components, exclusions, claim procedures, and any registration or installation requirements. Confirm the warranty applicable to the specific model and purchase before ordering.

Recommended Accessories

• 25-Foot SO-Type Power Cord – TPI Corporation lists a compatible 25-foot, 12/4 SO-type cord under part number 03164201. Confirm the appropriate plug and compatibility with the selected three-phase installation before ordering.
• Compatible 480 V Electrical Connection – Provide a properly rated circuit, connection hardware, overcurrent protection, and grounding arrangement based on the unit nameplate and manufacturer's wiring instructions.
• Replacement Infrared Heating Element – TPI Corporation lists element part number 01360702, model 64337-048, for the 480 V, 9,500 W configuration. Verify compatibility with the exact unit before ordering.
• Optional Tip-Over Switch – TPI Corporation offers a tip-over switch for compatible FSP-43 and FSP-95 series portable heaters. Confirm compatibility with the FSP-9548-3 and the required electrical configuration before ordering.
• Optional Ground-Fault Protection – Verify availability and compatibility of the manufacturer's ground-fault control accessories for the intended FSP-9548-3 installation.
• Replacement Wire Guard and Handcart Components – Select manufacturer-approved replacement guards, wheels, cart components, and housing parts using TPI Corporation's official parts documentation.

Targeted Industrial Radiant Heating with the TPI Corporation FSP-9548-3

Provide targeted supplemental heat with the TPI Corporation FSP-9548-3 Heavy-Duty Portable Infrared Heater. Combining 9,500 W of heating power with approximately 32,414 BTU/h of radiant output, a flat-panel infrared emitter, a gold-anodized aluminum housing, and a heavy-duty wire guard, this heater supports localized heating in suitable industrial and commercial environments. Its portable steel handcart with 6-inch wheels facilitates movement between work areas, while its 480 V single-phase or three-phase electrical configuration supports compatible industrial installations.
