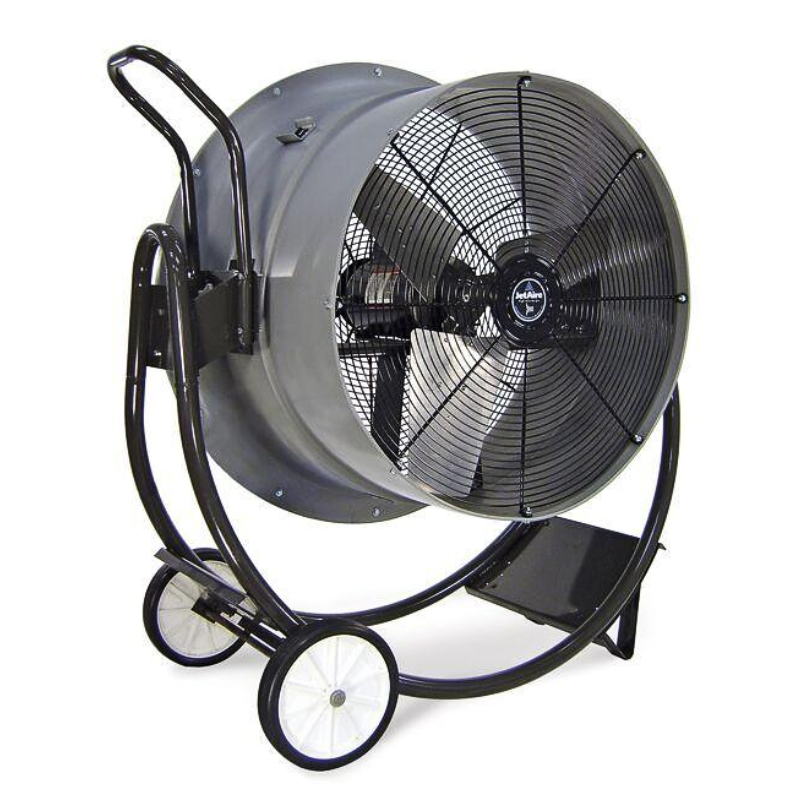

Triangle Fans 30" Direct Drive Cradle Mount Jetaire High Velocity Fan 1 Speed 1/2 HP 115V 1-Phase Totally Enclosed Motor - Gray Barrel

Triangle Fans 30" Jetaire High Velocity Fan - Direct Drive, 1 Speed, 1/2 HP, 115V, 1-Phase, Totally Enclosed Motor - Gray Barrel - HVD3013-V

SAVE $1,723.72

Be the first to review this product

Ships in 7-10 Business Days

Triangle Fans

In stock

Model

HVD3013-V

178796

Was $4,142.00 Your Low Price Special Price $2,418.28

Product Features

Rugged steel build for tough industrial use
American-built quality
Portable design for easy airflow positioning
Built for long-term value in demanding facilities

5 Questions Answered

Description

OVERVIEW

The Triangle Fans Cradle Mount JetAire High Velocity Fan is built for strong, focused airflow, making it perfect for cooling large industrial and commercial spaces. With a 30-inch blade and durable UV-protected housing, it handles outdoor or demanding indoor use with ease. It pushes air up to 150 feet and has a tiltable head for directional airflow. Powered by a single-phase motor, it's reliable and easy to operate with standard power. The cradle mount ensures stability, and the dolly base makes it easy to move. It can also be fitted with an optional misting system for extra cooling. Available in Industrial Gray or Hunter Green, it includes an OSHA-compliant safety guard for safe use in busy areas.

Key Features

Heavy-Gauge Steel Barrel Housing & Welded Powder-Coated Cradle Frame: ensures structural integrity and resistance to corrosion, impact, and daily wear even in harsh industrial or agricultural environments.
Deep-Pitch Steel Blades for High-Volume Airflow: engineered to move large volumes of air efficiently, producing a strong, directed air stream capable of projecting over 100 feet, ideal for ventilating large spaces or spot cooling specific zones.
Direct-Drive Motor (No Belts or Pulleys): simplifies maintenance and eliminates common failure points, ensuring consistent performance with reduced upkeep.
Tiltable Head & Adjustable Airflow Direction: allows precise positioning of airflow to target workstations, aisles, storage zones, stalls, or seating areas, improving comfort and ventilation where it’s needed most.
Portable Cradle-Mount with No-Flat Wheels: designed for easy movement and flexible placement, allowing you to roll the fan wherever airflow is required.
OSHA-Compliant Front & Rear Spiral-Wound Safety Guards: protect personnel and equipment while maintaining strong airflow performance and meeting safety requirements.
High-Velocity Airflow Output (Up to ~10,600 CFM): delivers powerful ventilation or cooling suitable for warehouses, barns, workshops, and commercial spaces.

Warranty Information

Triangle Engineering of Arkansas, Inc. (Manufacturer) warrants, from the date of purchase, to the original purchaser only, that the product manufactured by Manufacturer is free from defects in material and workmanship for a period of ONE (1) YEAR. Motors, capacitors, v-belts and switches are excluded from this warranty, but shall have a limited one-year warranty from the date of purchase to the original purchaser.

Refer to the manufacturer's manual for full warranty details.

Rugged, Portable Airpower for Industrial & Commercial Use

The Cradled JetAire® fan is engineered to deliver strong, long-distance airflow while withstanding demanding industrial, commercial, agricultural, and workshop environments. It features a heavy-gauge steel barrel housing and a welded, powder-coated cradle frame that resists impact, corrosion, dust, and daily wear. Inside the housing, deep-pitch steel blades move large volumes of air efficiently, powered by a direct-drive motor that eliminates belts, pulleys, and extra maintenance. This combination provides a steady, high-velocity air stream capable of reaching over 100 feet. For convenience, the fan sits on a tilt-back cradle base with large molded no-flat wheels, allowing easy transport, precise airflow direction, and quick repositioning as needed. OSHA-compliant guards on the front and rear provide safety while maintaining maximum airflow.

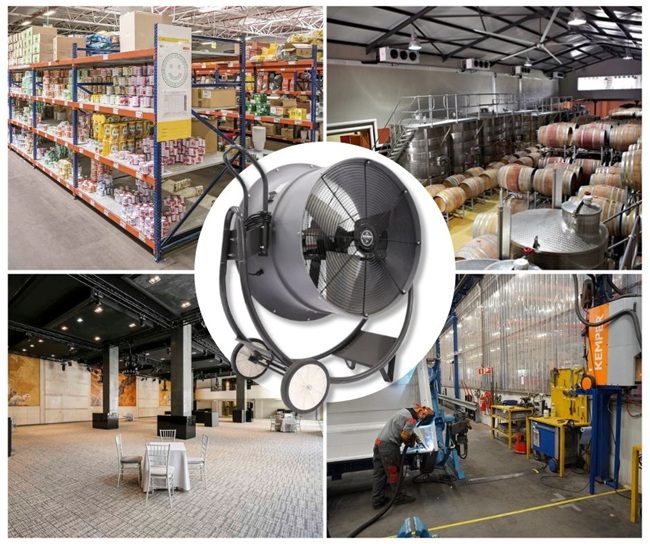

Suitable Applications for Triangle Cradled JetAire® High-Velocity Fans

Industrial facilities: Reliable cradle-mounted fans for spot cooling on assembly lines, production floors, machine shops, and warehouses, helping improve airflow and employee comfort.
Commercial environments: Large air circulator fans for gyms, event spaces, and other open areas where fast cooling and steady air movement are needed.
Golf courses & outdoor venues: Effective outdoor cooling fans that keep maintenance crews, players, and spectators comfortable in hot weather.
Agricultural operations: Versatile barn ventilation fans for livestock areas, stockyards, and equipment spaces, moving high volumes of air.
Specialty cooling: Useful for drying rooms, fume extraction areas, or any space requiring focused, high-velocity air movement.
Textile Mills: Keeps air moving in lint-heavy environments to improve worker comfort and assist in filtration efficiency.

Product Specs

More Information
Triangle Fans 30" Direct Drive Cradle Mount Jetaire High Velocity Fan 1 Speed 1/2 HP 115V 1-Phase Totally Enclosed Motor - Gray Barrel
Feature	Spec
SKU	HVD3013-V
Weight (in lbs)	218
Brand/Manufacturer	Triangle Fans
Drive Type	Direct
Maximum CFM	7900
Propeller Diameter	30 inches
Motor RPM	1075
Horsepower	1/2 HP
Electrical	115 V \| 1 Phase
Phase	Single Phase
Amperage Requirement	8 Amps
Color	Gray
Height	52"
Width	46"
Depth	28"
Warranty	1 Year Limited
Resources	Specification Sheet Installation Manual You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.

Reviews

Accessories

FAQ's

Customer Questions

Is the JetAire fan portable or fixed?

Yes, it is fully portable. The cradle-mount design includes no-flat rubber wheels and a tilt-back frame, so you can easily roll it into position and aim the airflow wherever you need it. This makes it convenient to use in different areas of a workshop, warehouse, or production space.

How energy efficient is a high-velocity fan compared to using several smaller fans or other cooling systems?

JetAire fans move a large volume of air very efficiently. Because one high-velocity fan can do the job of several smaller fans, you often use less energy overall. Many facilities see lower operating costs while still getting strong, effective airflow.

Does this fan require complicated wiring or installation?

No. It is a plug-and-play unit with a grounded cord and molded plug. Just roll it into place, plug it into a standard outlet, and it is ready to use. It is much simpler than fixed ventilation or ducted systems.

Can this fan be used for more than cooling people, such as for fumes, drying, or equipment cooling?

Yes. The powerful, directed airflow is great for exhausting hot air, clearing odors or light fumes, drying floors or surfaces, and cooling equipment or machinery. It works well in workshops, barns, warehouses, and production areas.

Can this fan replace air conditioning in large hot spaces?

In many situations, yes. Although it does not lower the air temperature like an AC unit, the strong breeze increases comfort, improves air circulation, and enhances evaporation cooling. It can reduce the need for AC or help existing cooling systems work more effectively.
