Today's Hours 10am - 6pm estTriangle Fans 36" Direct Drive Reversible Exhaust Fan, 1 Speed, 2 HP, 230/460V, 3-Phase Totally Enclosed Motor
Ships in 3-5 Business Days
By
Triangle Fans
In stock
Model
FHIR3617T-X-DD
ID
169941
Was $5,619.00 Your Low Price Special Price $3,562.97
Product Features
- Airflow: 13,500 CFM
- Electrical: 230/460V 3 Phase
- Propeller Diameter: 36-inch
- Material: Cast Aluminum, Galvanized Steel
- Type: Cabinet-mount Wall Exhaust
- Application: Manufacturing Plants, Assembly Areas, Industrial Facilities, Warehouse, Distribution Centers
OVERVIEW

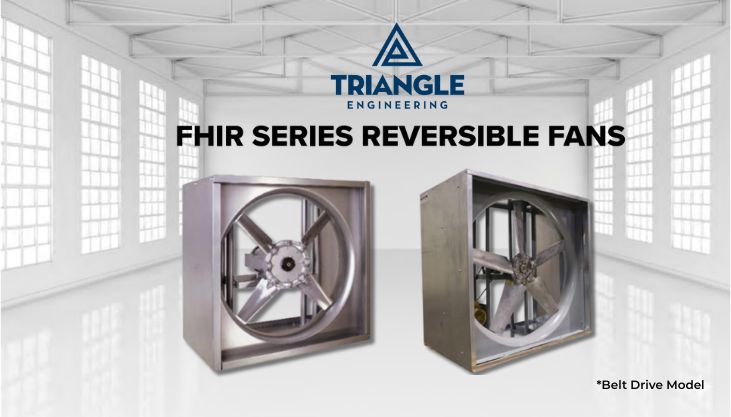

Triangle's FHIR series industrial-grade true reversible wall fans are designed to meet the demands of applications that require both supply and exhaust airflow from a single unit. Available in belt and direct drive configurations, these fans offer unmatched flexibility and reliability in commercial and industrial environments. Belt-drive models come standard with pillow block bearings for smooth operation and specially engineered airfoil blades that eliminate the performance limitations typically found in conventional reversible fans
Key Features
- Bidirectional Venturi: Unlike standard reversible fans that lose power when reversed, this venturi is engineered to maintain equal airflow in both directions.
- Symmetrical Airfoil Blades: Each cast aluminum blade is shaped for smooth air movement and minimal drag, delivering nearly identical CFM whether used for intake or exhaust.
- Totally Enclosed Motor (TE): Protects against dust and debris for longer service life. The motor design ensures smooth, dependable operation and easy reversibility.
- Welded Construction: The durable galvanized steel housing resists corrosion, making it ideal for factories, warehouses, and agricultural environments.
- Reversing Switch Included: Each FHIR fan with a totally enclosed motor comes with a field-installed reversing switch for quick and simple airflow direction changes.
- Maintenance Friendly: Components such as the motor, belts, and bearings are easy to access for routine inspection or servicing.
Warranty Information
Triangle Engineering of Arkansas, Inc. (Manufacturer) warrants, from the date of purchase, to the original purchaser only, that the product manufactured by Manufacturer is free from defects in material and workmanship for a period of ONE (1) YEAR. Motors, capacitors, v-belts and switches are excluded from this warranty, but shall have a limited one-year warranty from the date of purchase to the original purchaser.
Refer to the manufacturer's manual for full warranty details.Durable Materials & Construction
The FHIR Series is built for industrial-grade performance with no compromises. Its core housing is constructed from heavy-gauge, galvanized steel and includes a welded structural frame to withstand high-duty cycles, vibrations, and demanding environments. The venturi panels are finished in a durable polyester powder-coat to resist corrosion and wear over time. At the heart of the unit are symmetrical cast-aluminum air-foil blades engineered for true bidirectional performance, maintaining consistent airflow whether in supply or exhaust mode. It features a totally enclosed motor that resists dust, moisture and debris—helping ensure long-term reliability in rugged environments. Every component is designed for extended service life, with the rugged build and premium materials delivering dependable operation in warehouses, factories, agricultural buildings, and any facility demanding serious ventilation power.

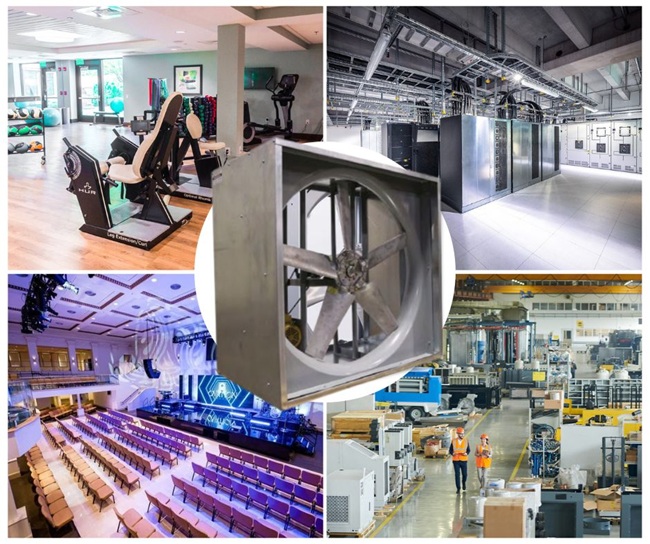

Suitable Applications for Triangle Fans FHIR Series Wall Fan
- Manufacturing plants and assembly areas: Ideal for removing heat and fumes or bringing in fresh air where high-volume ventilation is needed.
- Warehouses and distribution centers: Great for large spaces with tall racks or frequent door use, providing quick and efficient air changes.
- Agricultural barns, poultry houses, and greenhouses: Built for powerful, reversible ventilation to maintain healthy airflow and temperature balance.
- Automotive shops and repair bays: Functions as either intake or exhaust to keep air clean and comfortable based on daily operations.
- Labs and clean-air spaces: Supplies or removes air efficiently while maintaining a compact footprint.
- Cold-storage areas or low-HVAC facilities: Reversible design supports both intake and exhaust for balanced air movement year-round.
- Event halls and large retail spaces: Easily switches between exhaust and fresh-air supply for comfort during varying occupancy levels.
