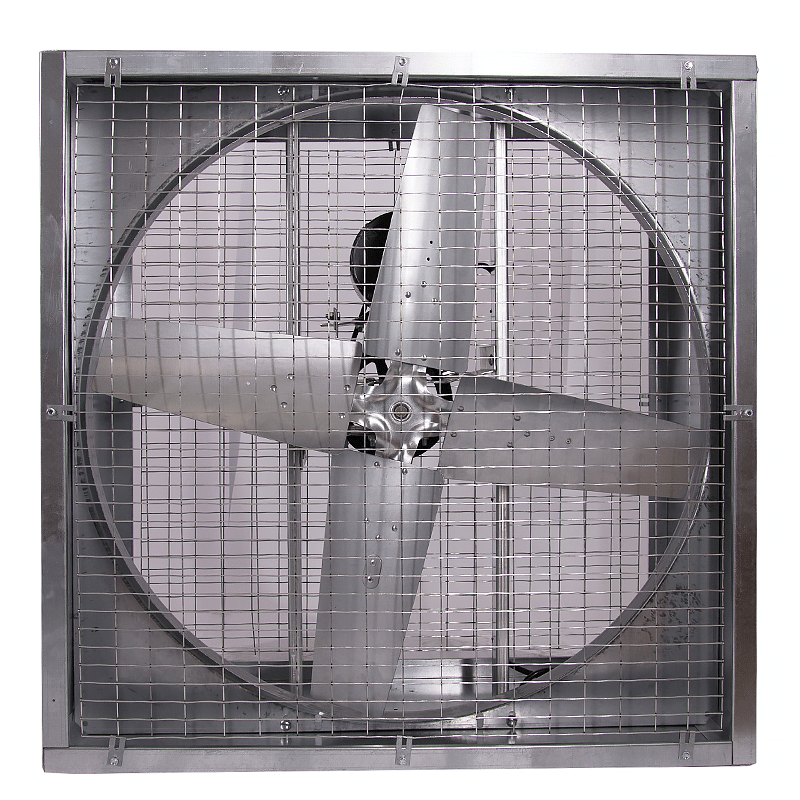

Today's Hours 8am - 11pm estTriangle Fans 36" Direct Drive Slant Wall Agriculture Fan 1/2 HP 230V 1-Phase Totally Enclosed Motor
Ships in 3-5 Business Days
By
Triangle Fans
In stock
Model
SLW3613D
ID
6870
Was $2,368.00 Your Low Price Special Price $1,617.25
Product Features
- Airflow: 10,220 CFM
- Electrical: 230V 1 Phase
- Propeller Diameter: 36-inch
- Material: Heavy Gauge Galvanized Steel
- Type: Agricultural Exhaust
- Application: Barns, Greenhouses, Livestock Facilities, Crop Storage, Utility Rooms
OVERVIEW
The SLW Series from Triangle Fans delivers robust, efficient ventilation for agricultural buildings, greenhouses, barns, and other large-space environments — engineered to move stagnant air, push out humidity or heat, and bring fresh circulation where it’s needed most. Built on decades of experience and rugged construction, these Slant Wall fans are ideal when you need reliable airflow in demanding conditions, from livestock barns to greenhouse ventilation or general farm ventilation.
Key Features
- Heavy-gauge Galvanized Steel Housing, Frame & Blades: complete corrosion-resistant build that handles moisture, ammonia, dust, and wash-downs, ensuring long service life.
- IWS-Series Exhaust Shutter on Intake Side: automatically closes when the fan is off, protecting the interior from rain, snow, dust, pests, and weather intrusion.
- Rolled-Inlet Venturi: aerodynamic inlet design boosts airflow efficiency by reducing turbulence and pressure loss, improving fan performance.
- Totally Enclosed (TE) Motor: sealed motor protects against dust, humidity, and environmental contaminants common in agricultural settings, ensuring reliable continuous-duty operation.
- Flexible installation options (direct-drive or belt-drive): SLW Series offers both drive types to match different facility requirements, offering flexibility for retrofits or new builds.
- Multiple Sizes & Power Options: available in a variety of diameters (e.g., 36", 42", 48") and motor setups (single-phase or three-phase) so you can match fan capacity to building size and ventilation needs.
Warranty Information
Triangle Engineering of Arkansas, Inc. (Manufacturer) warrants, from the date of purchase, to the original purchaser only, that the product manufactured by Manufacturer is free from defects in material and workmanship for a period of ONE (1) YEAR. Motors, capacitors, v-belts and switches are excluded from this warranty, but shall have a limited one-year warranty from the date of purchase to the original purchaser.
Refer to the manufacturer's manual for full warranty details.Rugged, Reliable Ventilation for Farms & Greenhouses
The SLW Series slant-wall fans from Triangle Fans are designed to deliver strong, consistent airflow and reliable exhaust performance in demanding agricultural, livestock, and horticultural settings. They are built from heavy-gauge galvanized steel, including the housing, frame, and blades, making the entire unit corrosion-resistant and tough enough to handle moisture, dust, ammonia, and routine wash-downs found in barns, greenhouses, storage areas, and similar environments. A totally enclosed motor (TE) provides dependable operation even in high-humidity or dusty conditions. With galvanized construction and a sealed motor housing, these fans offer long-lasting durability and are built to withstand years of heavy-duty use.
Suitable Applications for Triangle Slant-Wall Agricultural Fans
- Poultry houses (broiler, layer, breeder): side-wall or end-wall exhaust to remove heat, humidity, and ammonia.
- Swine barns (nursery, finishing, gestation): exhaust moisture, odors, and ensure air exchange for animal comfort and health.
- Dairy barns / free-stall barns / holding pens: ventilate humid, warm air; improve air quality and reduce heat stress for livestock.
- Greenhouses/nurseries: regulate temperature and humidity, promote airflow around plants to enhance growth and reduce disease risk.
- Crop or produce storage facilities: clear stale, humid air to prevent spoilage, mold, or rot; maintain stable storage conditions.
- Packing rooms, equipment sheds, or utility rooms: provide exhaust for dust, fumes, or heat generated by machinery or storage areas.
- Multipurpose farm buildings, barns, or workshops: general ventilation and airflow for mixed-use agricultural buildings that combine storage, livestock, and workspace.
