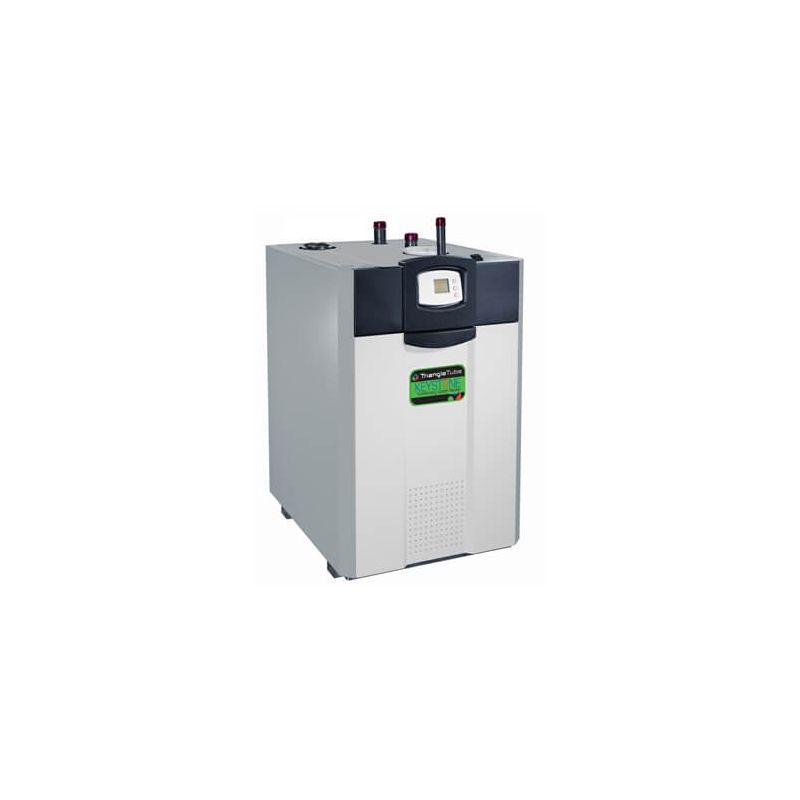

Triangle Tube Keystone 850,000 BTU Output Condensing Boiler - KS 850

By

Triangle Tube

Model

KS 850

ID

31405

Availability: Call for Availability

Authorized Triangle Tube Dealer

AHRI Certified

AHRI Number:5297144

$29,100.00

Free Shipping
Accessories for this product
Call 1-800-397-1392 for Best Pricing
Customer Reviews
BBB Rating
Best Pricing

Description

Features
  • High heat exchanger condensing efficiency
  • Modulation down to 20% of full fire (5:1 turndown)
  • Sealed combustion chamber
  • Pre-mix stainless steel burner
  • Low NOx system exceeds the most stringent regulations for air quality – 10 ppm NOx
  • Horizontal or vertical direct vent
  • Horizontal vent and air terminals
  • Vent and air pipe lengths of up to 100 equivalent feet (each)
  • Built-in condensate trap
  • Vent temperature cutoff feature
  • Direct spark ignition system
  • Indirect water heater priority
  • Sensor for indirect domestic water tank
  • 160 psi maximum working pressure
  • Stainless steel heat exchanger with welded construction (no gaskets)
  • ASME "H" stamp
  • 75 psi (517 kPa) ASME rated pressure relief valve
  • Water flow switch
  • Temperature & pressure gauge

Triangle Tube is best known for two things: feats of hydronic innovation and incredibly efficient products. If you are looking for those qualities in your hot water boiler, the Keystone certainly fits the bill. The Keystone is a high-efficiency, condensing boiler for large spaces. The condensing technology behind the Keystone will capture and reuse gaseous heat that escapes traditional boilers. Stainless steel construction of the heat exchanger and an internal condensate trap will protect the KS 750 from corrosion. The Keystone's modulating burner scales heat production based on your needs and reduces unnecessary energy consumption. All told, the Keystone is an incredibly reliable and efficient water heating solution.

Triangle Tube Boiler Installation & Warranty Information

We recommend that the installation of all Triangle Tube Boilers and Water heaters be done by a licensed, trained and qualified technician with the proper knowledge and background.

Should you experience an issue during the installation or the initial startup of the unit, please do not contact the manufacturer. You should have the technician that installed the unit contact either us or the manufacturer. Triangle Tube cannot accept any service or warranty calls from anybody but a licensed technician.

Neither we or Triangle Tube can be held liable for improper installation and operation of any Triangle Tube boiler product purchased from our company. Should a warranty issue arise where parts will need to be replaced, an installation receipt will be required along with your sales receipt. Failure to provide a receipt or invoice may result in the warranty not being honored.

Product Specifications

More Information
Triangle Tube Keystone 850,000 BTU Output Condensing Boiler - KS 850
SKUKS 850
Weight (in lbs)502.000000
AHRI Certificate Number5297144
Brand/ManufacturerTriangle Tube
Furnace Efficiency / AFUE 96%
Heating BTU850,000
Venting TypeDirect Vent
Efficiency95.7 %
Electrical60 Hz
PhaseSingle Phase
ConnectionNPT
TypeDirect Vent
Fuel TypeNatural Gas
CertificationCSA Listed, ASME Certified, AHRI Certified, ISO Certified
Height38"
Width24.50"
Depth55"
WarrantyParts Warranty 1 Year
