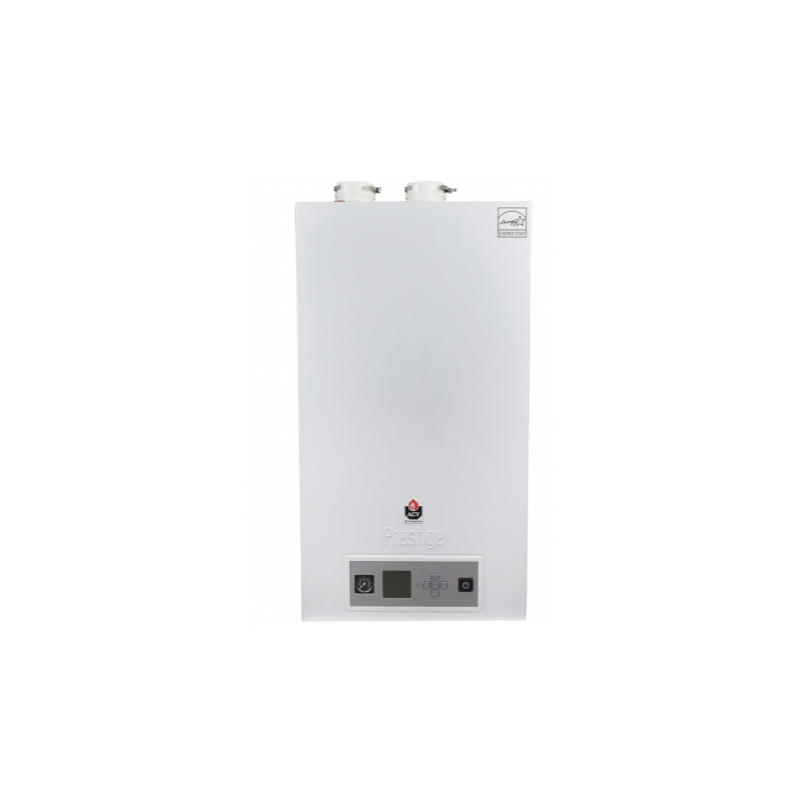

Triangle Tube Prestige Solo 137,000 BTU Condensing Gas Water Boiler - PA175

By

Triangle Tube

Model

PA175

ID

29778

Availability: Call for Availability

Authorized Triangle Tube Dealer

$6,960.00

Free Shipping
Accessories for this product
Call 1-800-397-1392 for Best Pricing
Customer Reviews
BBB Rating
Best Pricing

Description

Features
  • 439 Stainless steel, self-cleaning asme heat exchanger
  • Energy Star listed
  • Two outdoor reset curves / set points
  • Multiple zone & circulator control
  • High water capacity provides stable temperature control, adapts to high or low demand and reduces short-cycling
  • 6 pre-programmed applications for basebord, radiator, fan coil or radiant heat systems
  • Cascade functionality (up to 6 boilers)
  • Compatible with PVC, CPVC, PP (PolyPropylene - recommended) and S. Steel vent pipe
  • Low-NOx - 2012 SCAQMD Certified.

Prestige Solo 175 model by Triangle Tube (ACV) is a heat-only, Energy Star listed mod-con boiler with 137 MBTU (Net AHRI) output and ACVMax control.

Triangle Tube Water Boiler Installation & Warranty Information

We recommend that the installation of all Triangle Tube Boilers and Water Heaters be done by a licensed, trained and qualified technician with the proper knowledge and background.

Should you experience an issue during the installation or the initial startup of the unit, please do not contact the manufacturer. You should have the technician that installed the unit contact either us or the manufacturer. Triangle Tube cannot accept any service or warranty calls from anybody but a licensed technician.

Neither we or Triangle Tube can be held liable for improper installation and operation of any Triangle Tube boiler product purchased from our company. Should a warranty issue arise where parts will need to be replaced, an installation receipt will be required along with your sales receipt. Failure to provide a receipt or invoice may result in the warranty not being honored.

Product Specifications

More Information
Triangle Tube Prestige Solo 137,000 BTU Condensing Gas Water Boiler - PA175
SKUPA175
Weight (in lbs)128.000000
Brand/ManufacturerTriangle Tube
Additional InformationInput Modulation (BTU): 30,900 - 170,000
Additional InformationDOE Rating (BTU): 157,000
Additional InformationTurndown (Modulation) Ratio: 5.5 : 1
Additional InformationBoiler Connections: 1-1/4" NPT
Additional InformationGas Connection: 3/4" NPT
Additional InformationMax. Boiler Side Pressure: 30 psi
Additional InformationCondensate Drain: 3/4" NPT
Furnace Efficiency / AFUE 95%
Heating BTU137,000
Energy StarYes
Efficiency95%
Electrical120V, 60Hz
MaterialVent Material: PVC, CPVC, PolyPropylene (recommended), St. Steel
Fuel TypeNatural Gas
Height36.56"
Width19.75"
Depth17.31"
Warranty10-Year limited heat exchanger warranty / 2-Year control & blower warranty
