Universal PTAC Thermostat with WiFi and Room Sensor

OVERVIEW

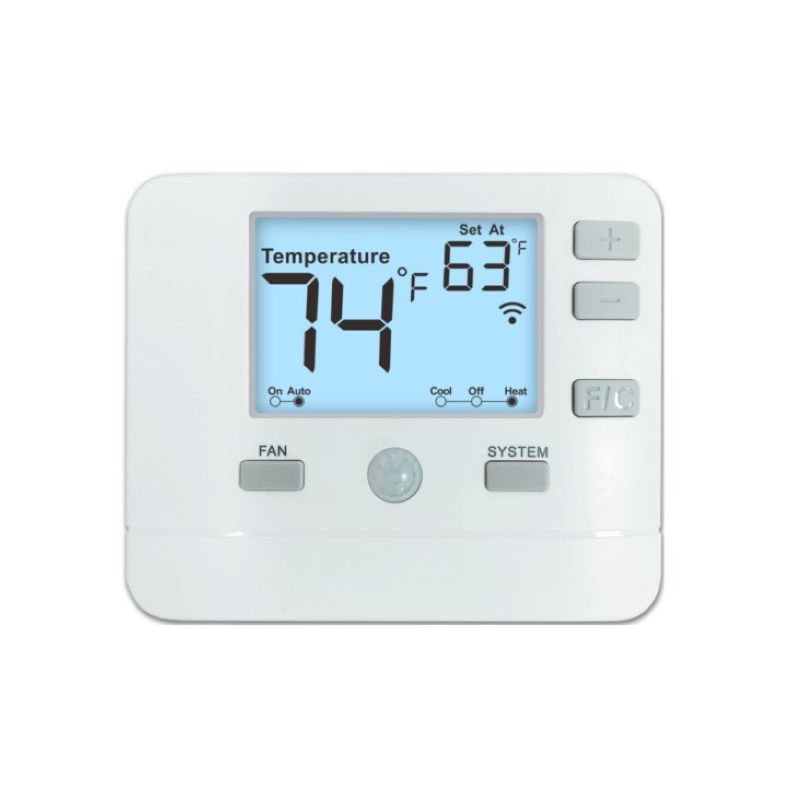

The PT731RFW Universal PTAC Thermostat with WiFi and Room Sensor is a smart, wall-mounted thermostat designed for use with a wide range of PTAC and other 24V HVAC systems. It offers wireless communication with a dedicated receiver module, on-device PIR occupancy sensing, and full app-based control via WiFi for remote monitoring, scheduling, and energy management. With an intuitive LCD display, fan and system mode switches, and support for heat, cool, and multi-stage conventional systems, it is ideal for hospitality, commercial, and light commercial applications seeking better comfort control and energy savings.

Additional Specs

• Communication: 915 MHz wireless link between thermostat and receiver; WiFi supports 802.11 b/g/n for app connectivity
• Temperature control range: 41°F to 90°F (5°C to 32°C)
• Display temperature range: 32°F to 99°F (0°C to 40°C)
• Temperature accuracy: ±1°F display accuracy
• Power source: 18–30 VAC, 50/60 Hz (hardwired, Class II)
• Load rating: 1 amp per terminal, 1.5 amps maximum all terminals combined
• Operating ambient: 32°F to 105°F (0°C to 41°C); 90% RH max, non‑condensing
• Dimensions (thermostat): 4.7" W x 3.8" H x 1.1" D
• Dimensions (receiver): 3.9" W x 1.8" H x 1.0" D
• Special features: Built‑in PIR occupancy sensor with multi‑stage energy‑saving modes via app; adjustable heat/cool swing, compressor short‑cycle protection, and configurable changeover valve and heat pump operation
