ACME 30" Belt Drive Tubeaxial Fan with VFD Controller 17120 CFM 5 HP 208 Volts, 3 Phase

OVERVIEW

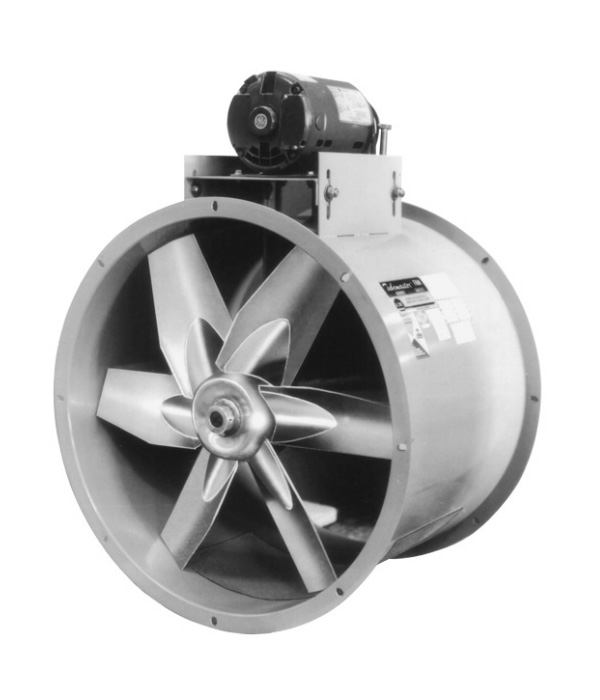

Model HA fan is a belt drive, tube axial exhauster with the motor, drives and bearings located outside the airstream. This model has a max CFM of 17120. The HA is designed to operate in any position and is furnished with mounting flanges on both ends for easy installation. This product is comparable to Acme Fans, same great quality, better price.

Key Features:

• Heavy-Duty Steel Housing: Constructed from heavy gauge rolled steel with rolled flanges on each end for easier mounting, and finished with a durable charcoal baked enamel coating for long-lasting protection.
• Service-Friendly Design: Includes a gasketed access door on models sized 42" to 60" for convenient maintenance and servicing.
• Streamlined Enclosure: Belt and bearing enclosure is designed to reduce turbulence and minimize air drag for improved efficiency.
• High-Performance Aluminum Propeller: Features heavy-duty, all-welded aluminum blades (steel used for select sizes and smoke exhaust models) with a circular-arc design for high airflow capacity.
• Balanced, Smooth Operation: Propeller is precision balanced to ensure vibration-free performance.
• Long-Life Bearing System: Permanently lubricated bearings housed in an Acme D.S. pillow block, mounted in neoprene rings and rated for an L50 life of 200,000 hours.
• Heavy-Duty Drive Assembly: Cast iron drives sized for 150% of motor horsepower, paired with static-free, oil- and heat-resistant belts for reliable operation.
• Externally Mounted Motors: Continuous-duty motors are positioned outside the airstream and shipped pre-mounted to the fan for easier installation.

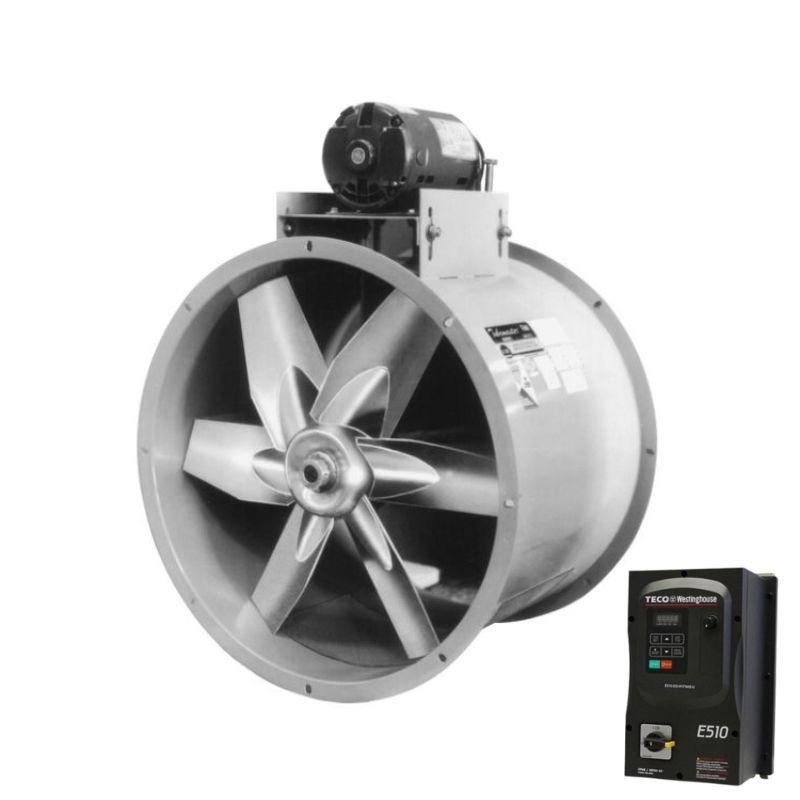

TECO Westinghouse E510 Advanced Micro Drive Controller

The Teco Westinghouse E510 Variable Frequency Drive (VFD) is a compact and versatile solution for industrial and commercial applications. It is designed for fans, pumps, conveyors, and HVAC systems, it delivers precise speed control, improved efficiency, and reliable performance. Supporting a wide range of motor sizes and voltages, the E510 features V/F and sensorless vector control for smooth acceleration, consistent torque, and accurate speed regulation across varying load conditions.

Controller Features:

• Versatile Motor Control Modes: Supports V/F and sensorless vector control for precise speed and torque performance.
• Built-In PLC Functionality: Enables automation and custom control logic without the need for external controllers.
• Integrated Modbus and BACnet Communication: Connects seamlessly to building management and automation systems.
• Power Loss Ride-Through and AVR Protection: Maintains operation during voltage fluctuations and protects system components.
• Durable Industrial Design: Conformal-coated boards and NEMA-rated enclosures ensure long-term reliability.

Warranty information

US Fans are backed by a 2-year comprehensive warranty covering overall product quality and performance. In addition, these units include a 5-year warranty on bearings and shafts, ensuring long-term durability and reliable operation in demanding commercial kitchen environments.
