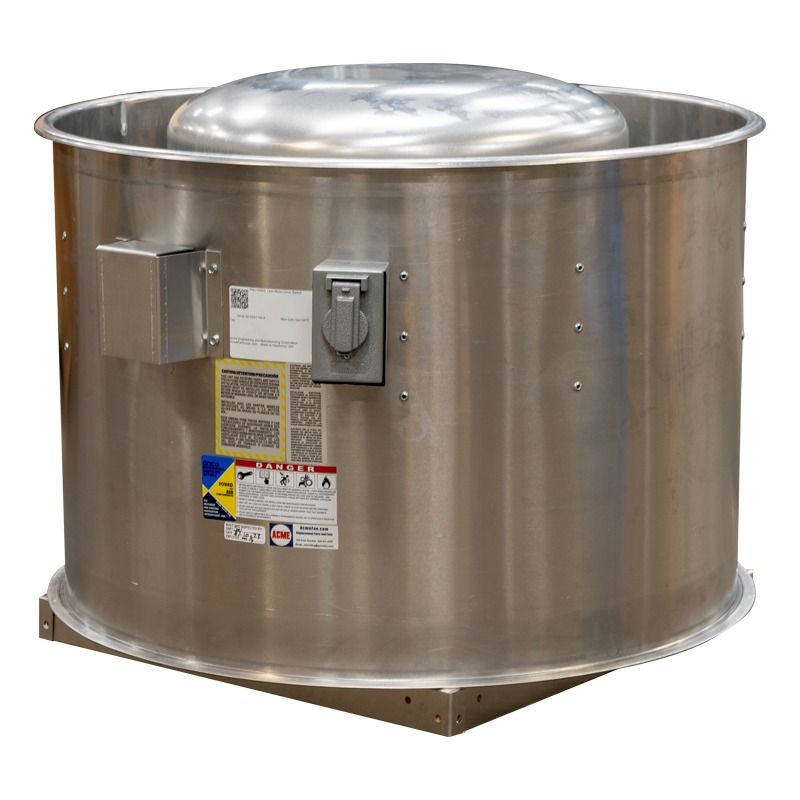

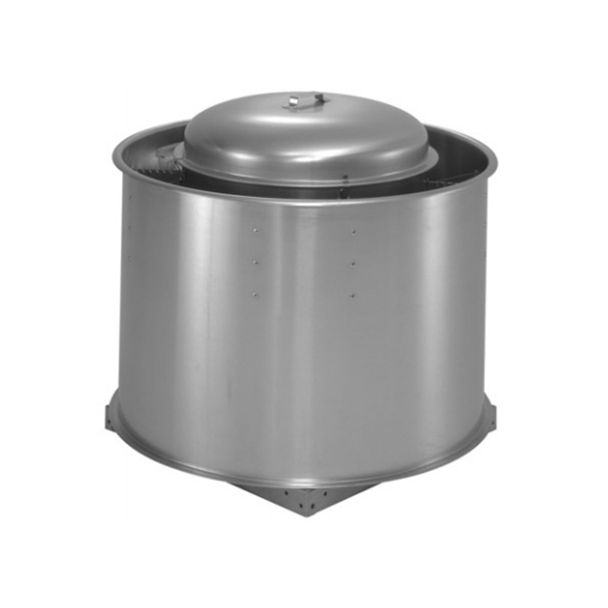

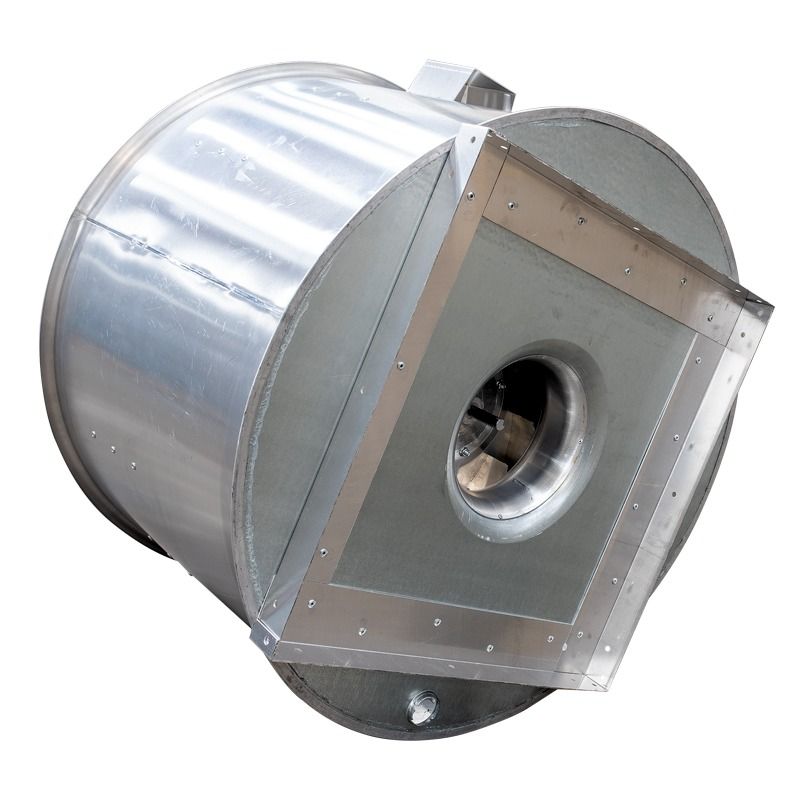

This restaurant exhauster is a belt drive upblast centrifugal fan that can be used on roofs or set horizontally to be used on walls. This has a max CFM of 1,020 and ideally suited for removal of grease laden exhaust found in restaurant and commercial kitchen applications. Other applications include a wide range of commercial, industrial, and institutional facilities such as schools, hospitals, prisons, and assembly areas.
Housing
Windband constructed of heavy gauge aluminum with rolled bead for strength
Sealed windband perimeter to prevent leakage
Wheel and drive assembly supported by rugged galvanized steel frame
Quick release latches allow easy removal of motor compartment cover without special tools
Aluminum curb cap (except smoke exhaust fans)
Centrifugal Wheel
Aluminum construction backward curved blade (steel wheel for smoke exhaust fans)
Non-overloading design for safe operation
Wheel optimally matched with die-formed orifice
Precision balanced for smooth vibration free operation
Bearings
Permanently lubricated in an Acme D.S. pillow block housing
Bearings are resiliently mounted in neoprene rings
Rated at L50 life of 200,000 hours
5 year limited warranty on Acme D.S. pillow block bearings
Drive Assembly
Cast iron drives sized for 150% of drive horsepower
Static free, oil and heat resistant belts
Motors
Continuous duty motors located outside the airstream
Large breather tube directs outside air into the motor compartment resulting in maximum life
Motor compartment cooled by fins located on top of impeller
This product is comparable to Acme Fans, same great quality, better price.
