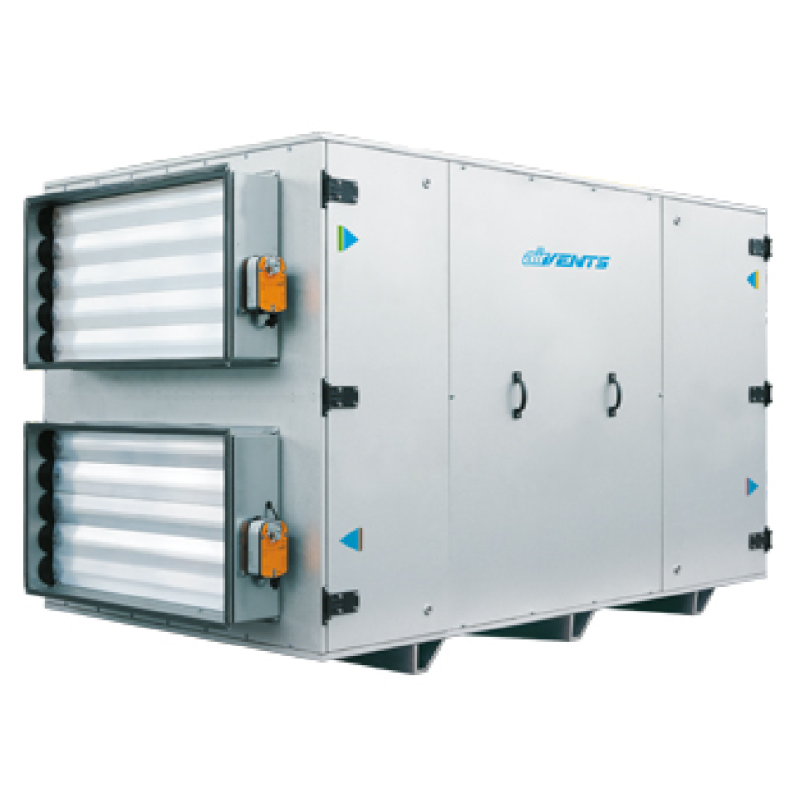

VENTS-US Airvents Commercial Heat Recovery Ventilator (HRV), 3532 CFM, 480 Volts, CFH 6000

The VENTS-US Airvents CFH 6000 premium line of commercial heat recovery air handling units for floor mounting with high-efficient counter-flow. This heat exchanger is an advanced solution for controlling the indoor air quality and temperature of commercial buildings. These units are designed to recover heat from the exhaust air stream and transfer it to the incoming fresh air, thus reducing the overall energy consumption and operating costs of the HVAC system. The counter-flow heat exchanger is highly efficient in transferring heat between the two air streams while maintaining their separation. These air handling units provides flexibility in installation. These units are ideal for large commercial buildings, such as offices, hospitals, schools, and shopping centers, where indoor air quality and energy efficiency are critical.

Features

• Rotary heat exchanger class H1 or a counter-flow aluminum plate heat exchanger (DIN EN 13053)
• Backward-curved, external-rotor, and high-efficiency EC fans
• Automatic dampers built right in
• Built-in plug-and-play controls
• Automatic full-size bypass is a feature that enhances a commercial HRV system's performance by ensuring that it functions effectively in a variety of weather situations.
• Frameless insulated double-skin casing
• ECO-Design'18, which means it meets European Union requirements for energy efficiency and environmental performance.
• Outputs for optional DX or Hydronic cooling/heating, a web interface, and MODBUS
• Includes silencers, VAV, CAV, and the full complement of accessories.
• Operation according to the RH, CO2, temperature, constant pressure, and timer schedule
• Floor Mounting
