Today's Hours 8am - 11pm estWatson McDaniel Temperature Control Valve Assembly
Required Fields *
Call for Availability
By
Watson McDaniel
In stock
Model
WMTCVA
ID
26604
Your Low Price $1,665.90
Watson McDaniel has manufactured a wide range of high-quality steam and fluid specialty products for the industrial marketplace for over 135 years. Earning the ISO 9001 Quality Certification in 1995, Watson McDaniel is recognized for the continued commitment to world assembly, quality control, and manufacturing procedures.
FEATURES
- Includes a full port ductile iron Watson McDaniel HD main regulating valve with NPT connections
- Paired with a PTUBW-30-8 temperature pilot for controlling downstream temperature between 160°F and 220°F
- Includes an 8-foot capillary and copper sensing bulb with brass isolation well
- Within boiler feed systems, a temperature control valve is typically used on atmospheric feed tanks to control the water temperature
- This assembly is intended for systems that utilize a high-pressure steam injector

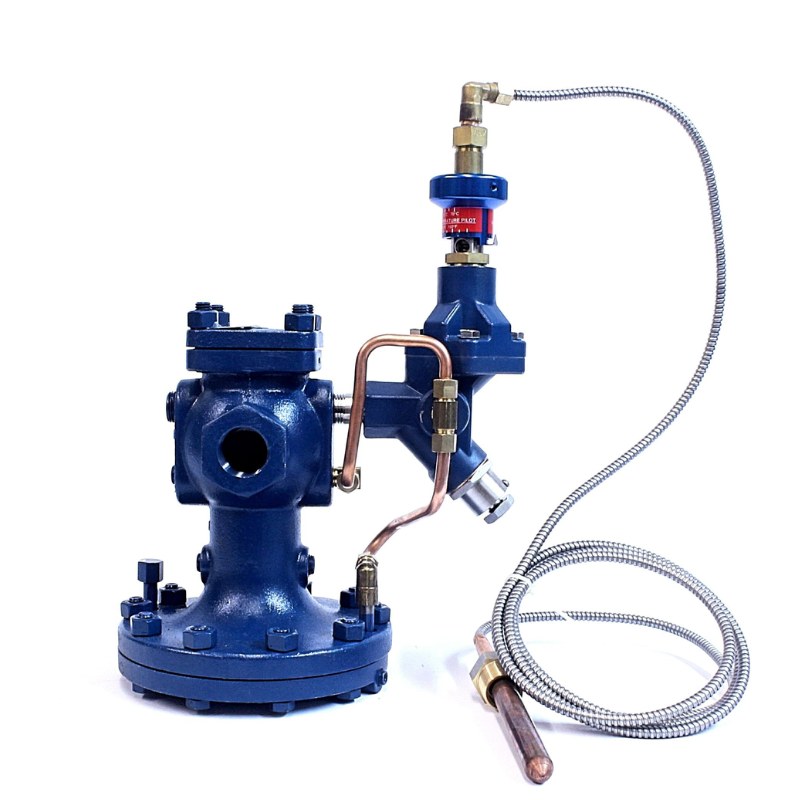

Watson McDaniel 3/4 Inch HDTTemperature Control Valve Assembly
The Watson McDaniel HD-13-N main regulating valve is a full port 3/4” NPT ductile iron valve rated for use with an incoming pressure between 15 – 300 psig. This package includes a PTUBW-30-8temperature pilot for controlling a downstream temperature between 160°F 220°F. The pilot includes an 8-foot capillary and copper sensing bulb with brass isolation well. Within boiler feed systems, a temperature control valve is typically used on atmospheric feed tanks to control the water temperature. This assembly is intended for systems that utilize a high-pressure steam injector. Note: if the tank utilizes a low-pressure steam sparge tube (operating around 5 psi), then a temperature AND pressure control valve is recommended to prevent the sparge tube from exceeding its designed operating pressure.
Watson McDaniel 2 Inch HDT Temperature Control Valve Assembly
The Watson McDaniel HD-17-N main regulating valve is a full port 2” NPT ductile iron valve rated for use with an incoming pressure between 15 – 300 psig. This package includes a PTUBW-30-8temperature pilot for controlling a downstream temperature between 160°F 220°F. The pilot includes an 8-foot capillary and copper sensing bulb with brass isolation well. Within boiler feed systems, a temperature control valve is typically used on atmospheric feed tanks to control the water temperature. This assembly is intended for systems that utilize a high-pressure steam injector. Note: if the tank utilizes a low-pressure steam sparge tube (operating around 5 psi), then a temperature AND pressure control valve is recommended to prevent the sparge tube from exceeding its designed operating pressure.
