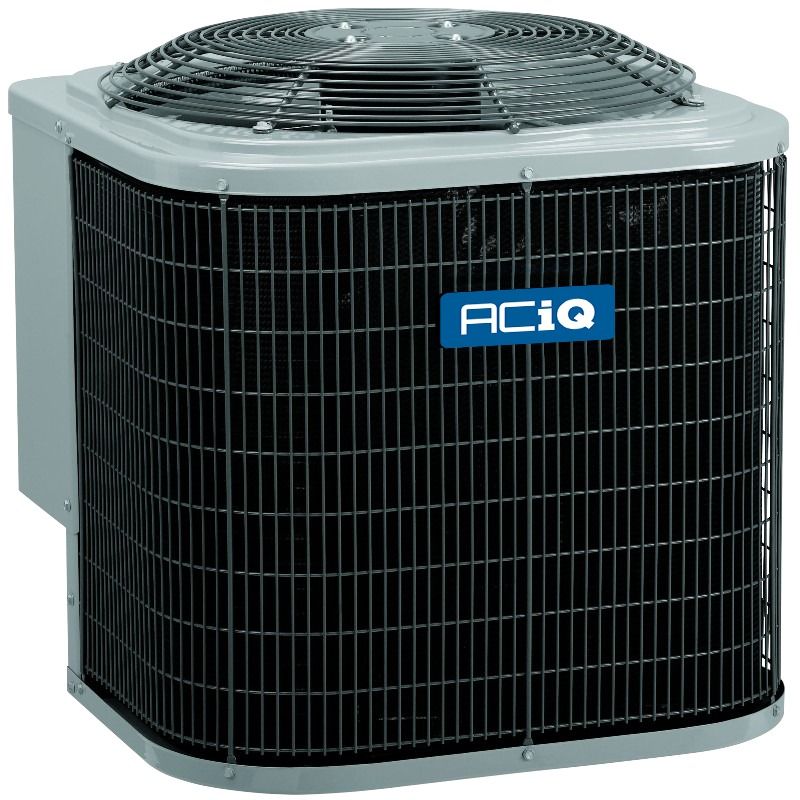

ACiQ 1.5 Ton 13 SEER Central Air Conditioner Condenser - R410A Single Stage

ACiQ 1.5 Ton 13 SEER Central Air Conditioner Condenser - R410A Single Stage
By

ACiQ

Out of stock
Model

N4A318GKF

ID

189388

OVERVIEW

The ACiQ N4A318GKF is a standard AC-only condenser. Designed with comfort in mind and an inexpensive but higher-than-standard efficiency option for nearly any application, this condenser is considered a good all-around option for almost any application.

QUICK FACTS

  • 1.5 ton, 13 SEER1 AC-only condenser
  • Can cool up to a small house in average conditions
  • Single stage compressor
  • Filter drier included to be field-installed

1.5 Tons

The ACiQ N4A318GKF air conditioner condenser has an output of 1.5 tons, generally enough to cool up to a small house in ideal climates. In many system configurations, the tonnage of the unit's paired coil or air handler will be larger in tonnage than this condenser, which maintains the efficiency of the unit. Please note that this condenser cannot function or provide any sort of heating on its own, and it needs an indoor coil or air handler to work. If you have any questions, please contact us.

13 SEER1

The ACiQ N4A318GKF air conditioner condenser is rated at 13 SEER1, making it between 5-7% more efficient than 12 SEER1 units, saving you money in electric bills over the entire lifetime of your unit.

This unit (and all 13 SEER1 units) cannot be shipped or installed in the following states: Alabama, Arizona, Arkansas, California, Delaware, Florida, Georgia, Kentucky, Louisiana, Maryland, Mississippi, Nevada, New Mexico, North Carolina, Oklahoma, South Carolina, Tennessee, Texas, and Virginia. For more information about state efficiency requirements, please click here. For AC condensers that can be sold to these states, please click here.

Warranty

ACiQ offers a 10 year parts warranty on this condenser. For this warranty to be upheld, the unit must be installed following your state and local codes, a new and certified coil must be installed at the same time, and the condenser/coil pairing must be registered online through the manufacturer.

Durability

The cabinet of ACiQ units are extremely durable. On the N4A318GKF, there are reinforced corner posts and the internals of the unit are protected by an additional inlet grille, all to provide enhanced protection to the unit.

More Information
ACiQ 1.5 Ton 13 SEER Central Air Conditioner Condenser - R410A Single Stage
FeatureSpec
SKUN4A318GKF
Weight (in lbs)161
Brand/ManufacturerACiQ
Cooling BTU18,000
Maximum CFM1792
Decibel Level (dBA)72 Decibels
Motor RPM1100
Horsepower0.08 HP
RefrigerantR410A
SEER1 (Efficiency)13
EER11.0
Condenser StagesSingle Stage
Compressor TypeScroll
Liquid Line3/8"
Suction Line3/4"
Electrical208/230v 1 Phase 60 Hz
Max Breaker Size20 Amps
Min. Breaker Size11.8 Amps
Tonnage1.5 Ton
ConnectionSweat
Height25 5/16"
Width23 1/8"
Depth23 1/8"
Warranty10 Years Parts Warranty with Online Registration
